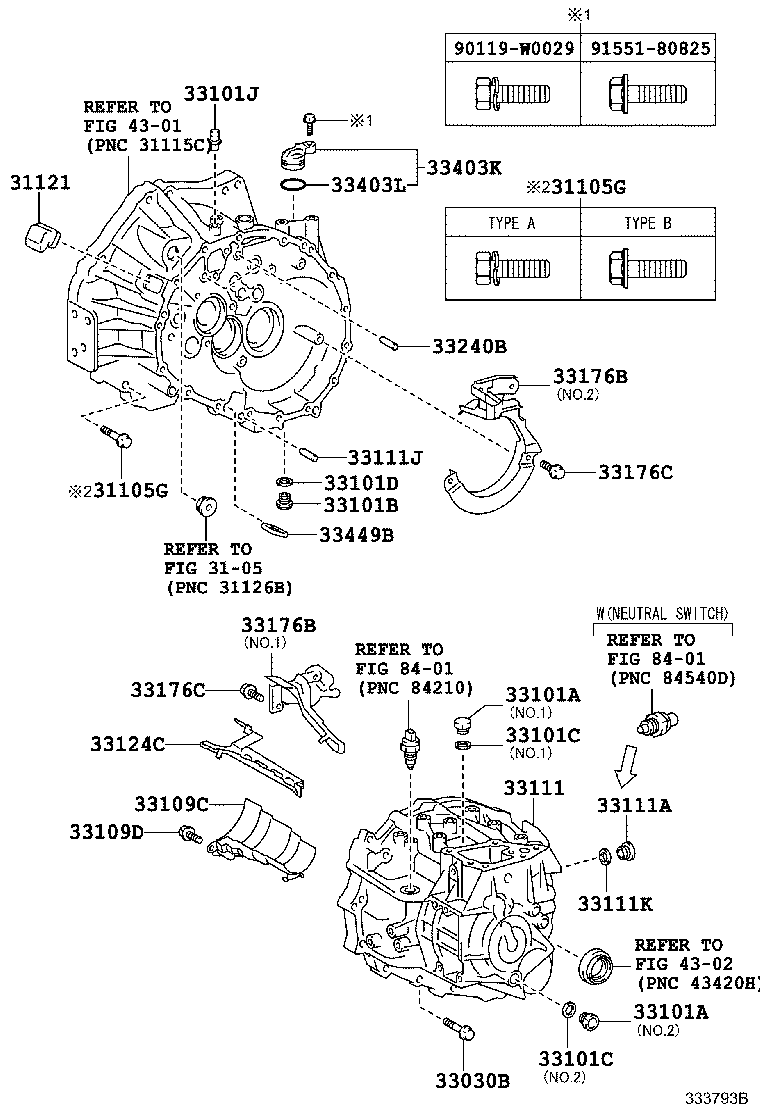

NRE150L-AHFNKW (2008)
Toyota Auris/Corolla (Jpp)
(0809- )NDE150,NRE150,ZRE15#..6F
EC60,EC65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-W0097 |
NRE150 *12-1.25PX45-30,TYPE A:REFER ILLUST. |
2 | ||
| 91552-81245 |
NRE150 *12-1.25PX45-30,TYPE B:REFER ILLUST. |
2 | ||
| 91552-81280 |
NRE150 *12-1.25PX80-30 |
2 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-W0097 |
NRE150 *12-1.25PX45-30,TYPE A:REFER ILLUST. |
2 | ||
| 91552-81245 |
NRE150 *12-1.25PX45-30,TYPE B:REFER ILLUST. |
2 | ||
| 91552-81280 |
NRE150 *12-1.25PX80-30 |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-52020 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| 31121-52020 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 91551-10840 |
NDE150,NRE150,ZRE15#..6F *8-1.25PX40-22,*206 |
16 | ||
| 91551-10840 |
NDE150,NRE150,ZRE151..6F *8-1.25PX40-22,*201 |
16 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-14032 |
NDE150,NRE150,ZRE151..6F *201,NO.1 |
1 | ||
| 90341-18033 |
NDE150,NRE150,ZRE15#..6F *206,NO.2 |
1 | ||
| 90341-14032 |
NDE150,NRE150,ZRE15#..6F *206,NO.1 |
1 | ||
| 90341-18033 |
NDE150,NRE150,ZRE151..6F *201,NO.2 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-14032 |
NDE150,NRE150,ZRE151..6F *201,NO.1 |
1 | ||
| 90341-18033 |
NDE150,NRE150,ZRE15#..6F *206,NO.2 |
1 | ||
| 90341-14032 |
NDE150,NRE150,ZRE15#..6F *206,NO.1 |
1 | ||
| 90341-18033 |
NDE150,NRE150,ZRE151..6F *201,NO.2 |
1 | ||
| 33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN) | ||||
| 90341-18016 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 90341-18016 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-14003 |
NDE150,NRE150,ZRE151..6F *201,NO.1 |
1 | ||
| 90430-18008 |
NDE150,NRE150,ZRE151..6F *201,NO.2 |
1 | ||
| 90430-14003 |
NDE150,NRE150,ZRE15#..6F *206,NO.1 |
1 | ||
| 90430-18008 |
NDE150,NRE150,ZRE15#..6F *206,NO.2 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-14003 |
NDE150,NRE150,ZRE151..6F *201,NO.1 |
1 | ||
| 90430-18008 |
NDE150,NRE150,ZRE151..6F *201,NO.2 |
1 | ||
| 90430-14003 |
NDE150,NRE150,ZRE15#..6F *206,NO.1 |
1 | ||
| 90430-18008 |
NDE150,NRE150,ZRE15#..6F *206,NO.2 |
1 | ||
| 33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG) | ||||
| 90430-18008 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 90430-18008 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03133 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 90930-03133 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-20020 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| 33109-20020 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR) | ||||
| 91551-80816 |
NDE150,NRE150,ZRE15#..6F *206 |
4 | ||
| 91551-80816 |
NDE150,NRE150,ZRE151..6F *201 |
4 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-12290 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| 33111-20220 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 90341-18006 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
NDE150,NRE150,ZRE15#..6F L=23,OD=8,*206 |
3 | ||
| 90250-08054 |
NDE150,NRE150,ZRE151..6F L=23,OD=8,*201 |
3 | ||
| 33111K - GASKET(FOR TRANSMISSION CASE) | ||||
| 90430-18008 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| 90430-18008 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-20080 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 33124-20080 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-20080 |
NDE150,NRE150,ZRE151..6F *201,NO.1 |
1 | ||
| 33176-20090 |
NDE150,NRE150,ZRE151..6F *201,NO.2 |
1 | ||
| 33176-20090 |
NDE150,NRE150,ZRE15#..6F *206,NO.2 |
1 | ||
| 33176-20080 |
NDE150,NRE150,ZRE15#..6F *206,NO.1 |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-20080 |
NDE150,NRE150,ZRE151..6F *201,NO.1 |
1 | ||
| 33176-20090 |
NDE150,NRE150,ZRE151..6F *201,NO.2 |
1 | ||
| 33176-20090 |
NDE150,NRE150,ZRE15#..6F *206,NO.2 |
1 | ||
| 33176-20080 |
NDE150,NRE150,ZRE15#..6F *206,NO.1 |
1 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 91551-80816 |
NDE150,NRE150,ZRE15#..6F *206 |
6 | ||
| 91551-80816 |
NDE150,NRE150,ZRE151..6F *201 |
6 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 91551-80816 |
NDE150,NRE150,ZRE15#..6F *206 |
6 | ||
| 91551-80816 |
NDE150,NRE150,ZRE151..6F *201 |
6 | ||
| 33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90250-08054 |
NDE150,NRE150,ZRE151..6F *201 |
2 | ||
| 90250-08054 |
NDE150,NRE150,ZRE15#..6F *206 |
2 | ||
| 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
NDE150,NRE150,ZRE15#..6F,6FS |
1 | ||
| 33403L - RING, O | ||||
| 96711-24030 |
NDE150,NRE150,ZRE15#..6F,6FS |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-20010 |
NDE150,NRE150,ZRE151..6F *201 |
1 | ||
| 33449-20010 |
NDE150,NRE150,ZRE15#..6F *206 |
1 | ||
| Common parts | ||||
| 90119-W0029 | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 3105 | ||||
| 4301 | ||||
| 4302 | ||||
| 8401 | ||||
