NRE150L-AHFNKW (2008)

Toyota Auris/Corolla (Jpp)

Production Sep 2008 - Oct 2009
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0809- )NRE150 ; (0812- )NDE150,ZRE15#

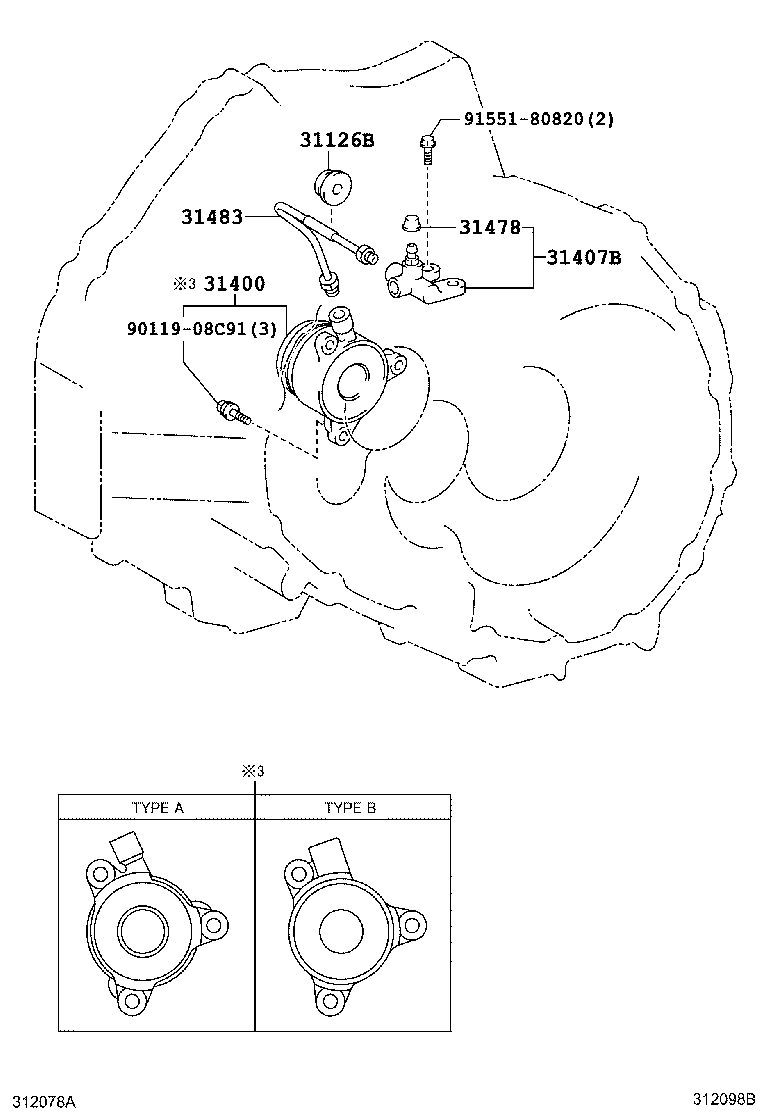

Click highlighted areas on diagram

diagram 31126B 31400 31407B 31478 31483 9011908C91 9155180820
Part # Description Qty Price
31126B - BOOT, CLUTCH TUBE
31126-20090

NDE150,NRE150,ZRE151..6F

*201

 1
31126-20090

NDE150,NRE150,ZRE15#..6F

*206

 1
31400 - CYLINDER ASSY, CLUTCH RELEASE W/BEARING
31400-19005

NDE150,NRE150,ZRE151..6F

*201

 1
31400-19005

NDE150,NRE150,ZRE15#..6F

*206

 1
31407B - BLEEDER SUB-ASSY, CLUTCH RELEASE
31407-52010

NDE150,NRE150,ZRE15#..6F

*206

 1
31407-52010

NDE150,NRE150,ZRE151..6F

*201

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

NDE150,NRE150,ZRE151..6F

*201

 1
31478-30010

NDE150,NRE150,ZRE15#..6F

*206

 1
31483 - TUBE, BLEEDER CLUTCH RELEASE
31482-52110

NDE150,NRE150,ZRE151..6F

*201

 1
31482-52110

NDE150,NRE150,ZRE15#..6F

*206

 1
Common parts
90119-08C91
91551-80820
