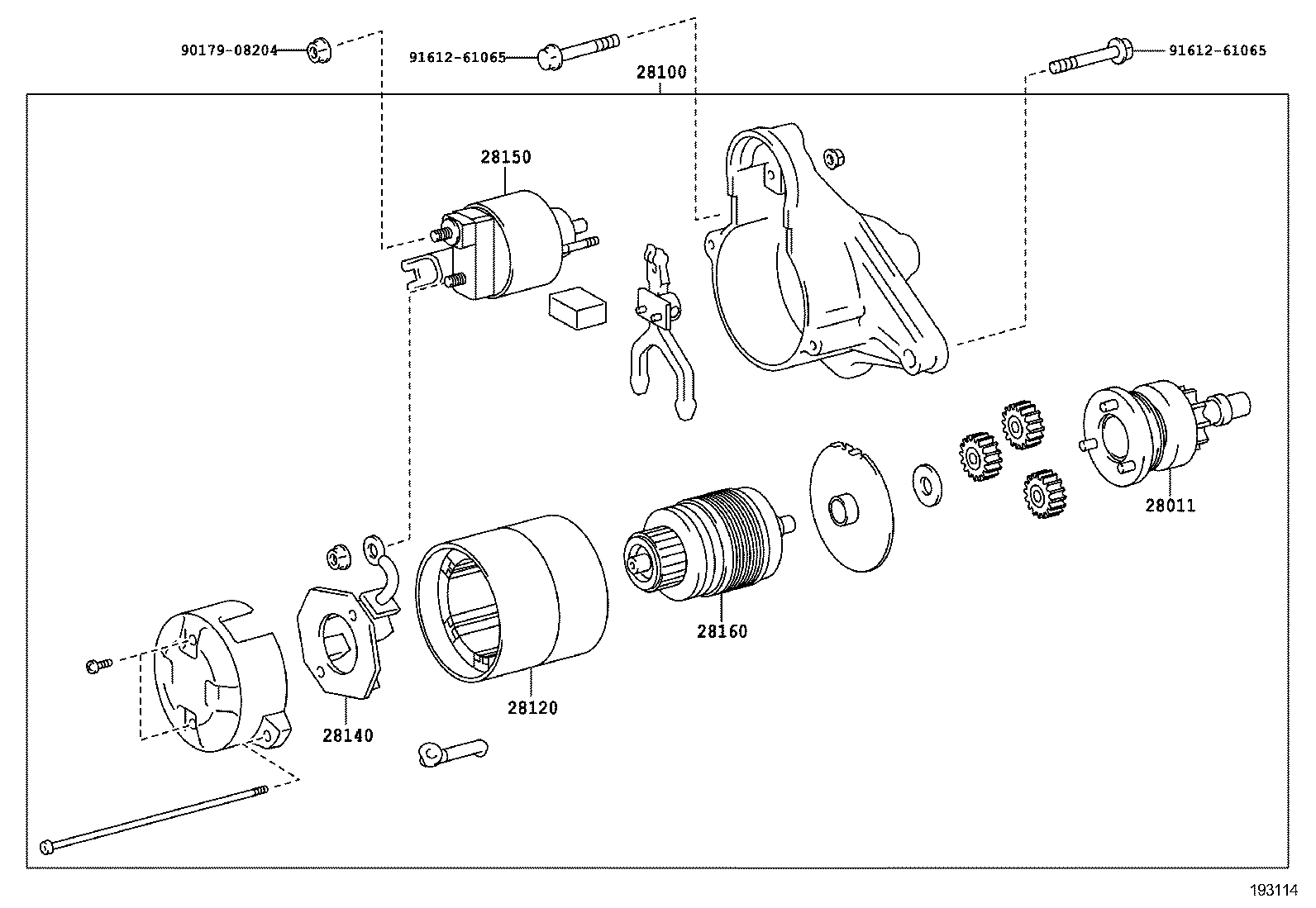

NRE150L-AHFNKW (2008)
Toyota Auris/Corolla (Jpp)
(0809-0910)1NRFE
12V 0.8KW,12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-70020 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-47130 |
1NRFE..NRE150..LHD 12V 1.0KW,COLD AREA SPEC |
1 | ||
| 28100-47130 |
1NRFE..NRE150 12V 1.0KW,SUB COLD AREA SPEC |
1 | ||
| 28100-47110 |
1NRFE..NRE150 12V 1.6KW,STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28100-47120 |
1NRFE..NRE150 12V 0.8KW |
1 | ||
| 28100-47110 |
1NRFE..NRE150..LHD 12V 1.6KW,STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28100-47110 |
1NRFE..NRE150 12V 1.6KW,STOP & START SYSTEM PACKAGE |
1 | ||
| 28100-47131 |
1NRFE..NRE150 12V 1.0KW,SUB COLD AREA SPEC |
1 | ||
| 28100-47131 |
1NRFE..NRE150..LHD 12V 1.0KW,COLD AREA SPEC |
1 | ||
| 28100-47121 |
1NRFE..NRE150 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28120-40130 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 28120-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28120-47120 |
1NRFE..NRE150 |
1 | ||
| 28120-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28120-40130 |
1NRFE..NRE150 SUB COLD AREA SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28140-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28140-70020 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS |
1 | ||
| 28140-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-40090 |
1NRFE..NRE150 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28180-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28160-70050 |
1NRFE,1ZRFAE,2ZRFAE..NRE150,ZRE15# SUB COLD AREA SPEC |
1 | ||
| 28160-70021 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS |
1 | ||
| 28180-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28160-70050 |
1NRFE,1ZRFAE,2ZRFAE..NRE150,ZRE15#..LHD COLD AREA SPEC |
1 | ||
| 28180-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
(0809-0910)1NRFE
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28021-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28021-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-47130 |
1NRFE..NRE150..LHD 12V 1.0KW,COLD AREA SPEC |
1 | ||
| 28100-47130 |
1NRFE..NRE150 12V 1.0KW,SUB COLD AREA SPEC |
1 | ||
| 28100-47110 |
1NRFE..NRE150 12V 1.6KW,STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28100-47120 |
1NRFE..NRE150 12V 0.8KW |
1 | ||
| 28100-47110 |
1NRFE..NRE150..LHD 12V 1.6KW,STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28100-47110 |
1NRFE..NRE150 12V 1.6KW,STOP & START SYSTEM PACKAGE |
1 | ||
| 28100-47131 |
1NRFE..NRE150 12V 1.0KW,SUB COLD AREA SPEC |
1 | ||
| 28100-47131 |
1NRFE..NRE150..LHD 12V 1.0KW,COLD AREA SPEC |
1 | ||
| 28100-47121 |
1NRFE..NRE150 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28110-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28110-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28117-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28117-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28120-40130 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 28120-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28120-47120 |
1NRFE..NRE150 |
1 | ||
| 28120-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28120-40130 |
1NRFE..NRE150 SUB COLD AREA SPEC |
1 | ||
| 28122 - COLLAR, SPACE | ||||
| 28122-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28122-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28122-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28130-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28130-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28140-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28140-70020 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS |
1 | ||
| 28140-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28180-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28160-70050 |
1NRFE,1ZRFAE,2ZRFAE..NRE150,ZRE15# SUB COLD AREA SPEC |
1 | ||
| 28160-70021 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS |
1 | ||
| 28180-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28160-70050 |
1NRFE,1ZRFAE,2ZRFAE..NRE150,ZRE15#..LHD COLD AREA SPEC |
1 | ||
| 28180-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-31090 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28199-31090 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28199-31090 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
1 | ||
| 28226-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 28226-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
3 | ||
| 28255-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
3 | ||
| 28255-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
3 | ||
| 28255-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
3 | ||
| 28255-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE&SUB COLD AREA SPEC |
3 | ||
| 28255-47110 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
3 | ||
| 28255-47110 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
3 | ||
| Common parts | ||||
| 90068-01017 | ||||
| 90099-00323 | ||||
| 90099-04623 | ||||
| 90099-05178 | ||||
| 90099-05289 | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
