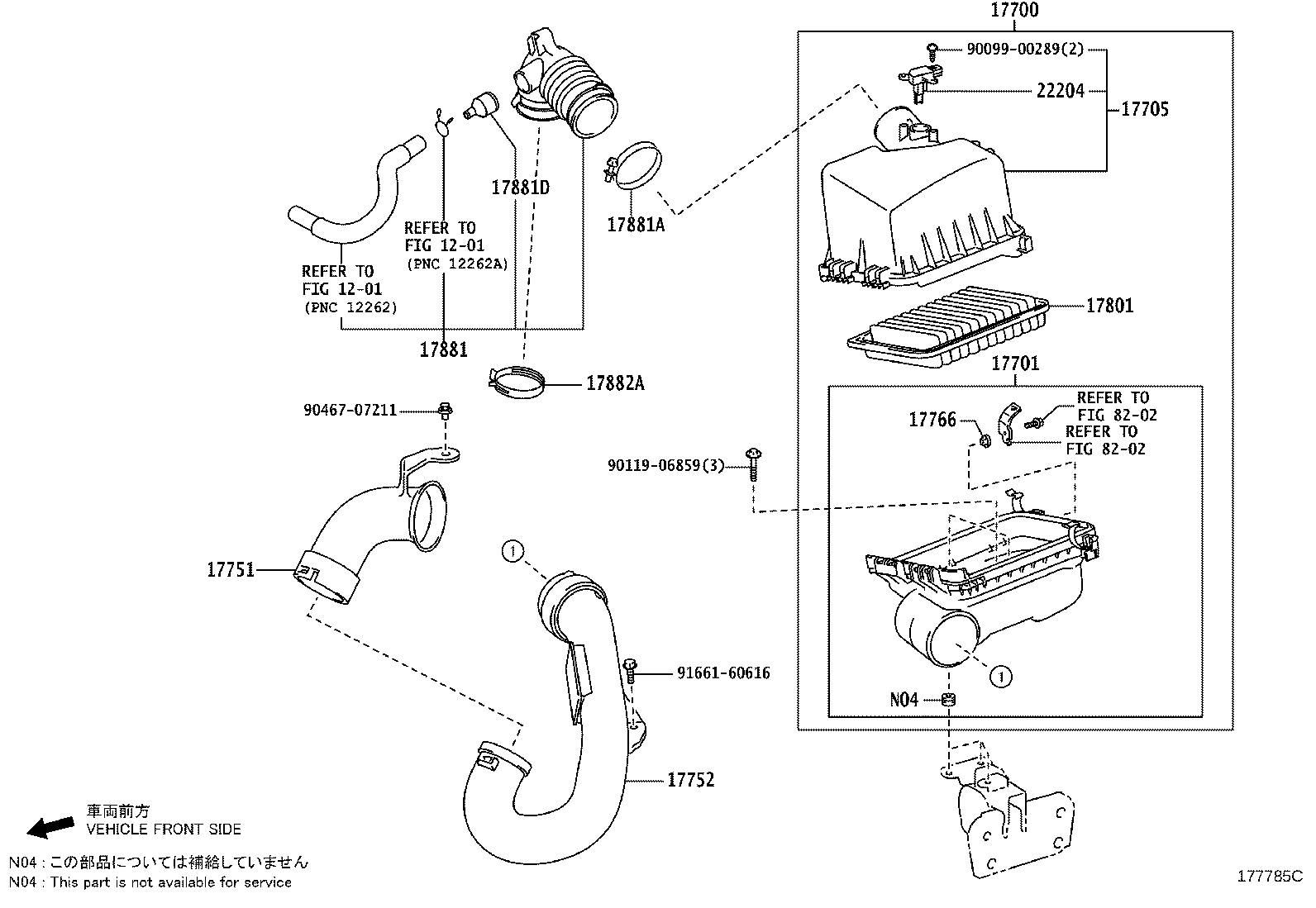

Toyota Auris/corolla (jpp) NRE150 AIR CLEANER

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-47130	1NRFE..NRE150	09/2008 - 10/2009	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-21110	1NRFE..NRE150	09/2008 - 10/2009	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-47080	1NRFE..NRE150	09/2008 - 10/2009	1
17751 - INLET, AIR CLEANER, NO.1
17751-47020	1NRFE..NRE150	09/2008 - 10/2009	1
17752 - INLET, AIR CLEANER, NO.2
17752-47010	1NRFE..NRE150	09/2008 - 10/2009	1
17766 - STAY, AIR CLEANER, NO.2
17706-22010	1NRFE..NRE150	09/2008 - 04/2009	1
17706-21010	1NRFE..NRE150	04/2009 - 10/2009	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050	1NRFE..NRE150	09/2008 - 10/2009	1
17881 - HOSE, AIR CLEANER, NO.1
17880-47010	1NRFE..NRE150	09/2008 - 10/2009	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	1N#..NDE150,NRE150..6F,6FS	09/2008 - 10/2009	1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90904-06008	1NRFE..NRE150	09/2008 - 10/2009	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-62002	1NRFE..NRE150	09/2008 - 10/2009	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-37010	1NRFE..NRE150	09/2008 - 10/2009	1
Common parts
90099-00289
90119-06859
90467-07211
91661-60616
Linked diagrams
1201
8202

NRE150L-AHFNKW (2008)
