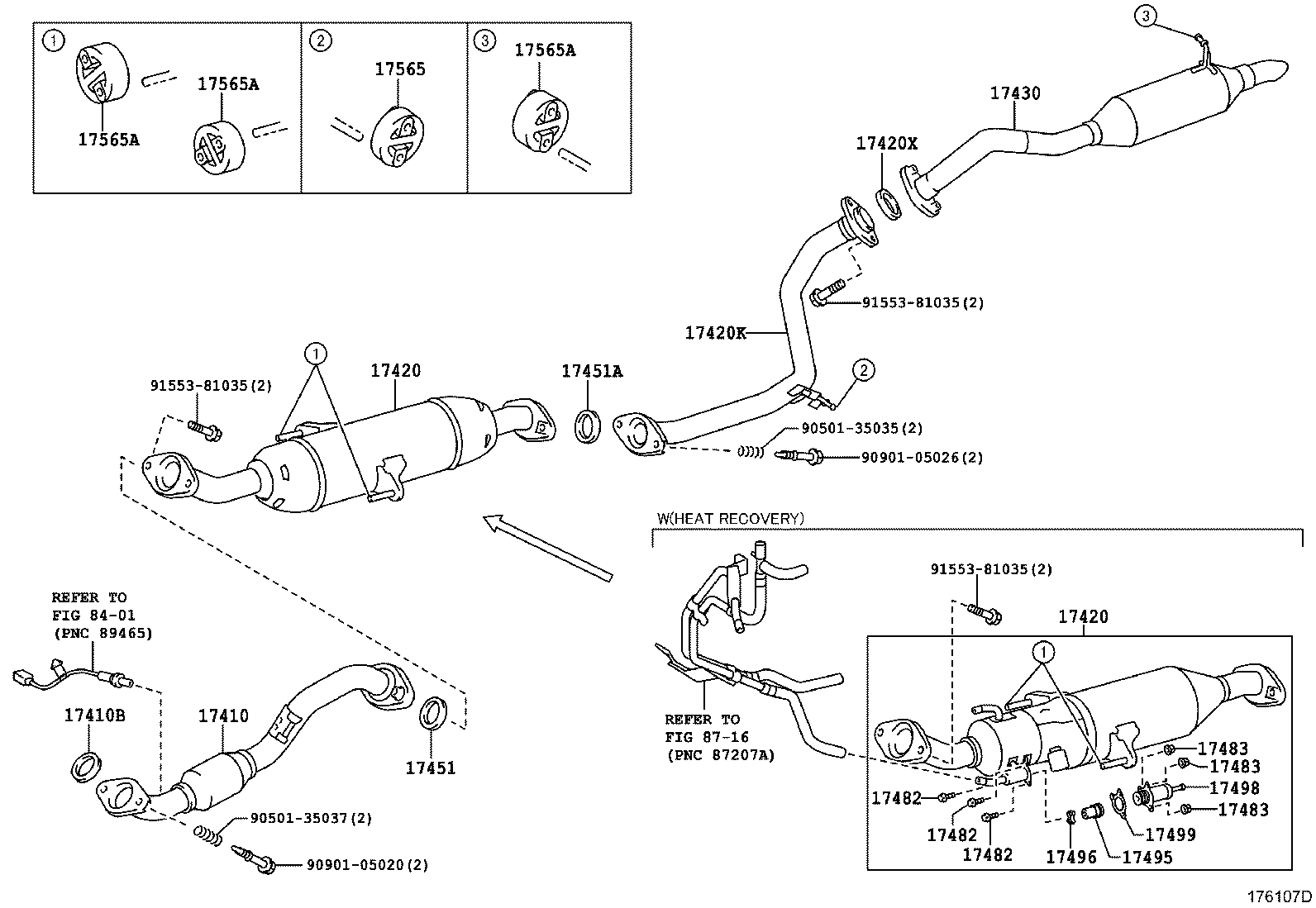

NRE150L-AHFNKW (2008)
Toyota Auris/Corolla (Jpp)
(0809- )1NRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-47060 |
1NRFE..NRE150 *114=TOYOTA/CD9/Y |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-47020 |
1NRFE..NRE150 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-47080 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 17420-47070 |
1NRFE..NRE150 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-47080 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 17420-47070 |
1NRFE..NRE150 |
1 | ||
| 17420K - PIPE ASSY, EXHAUST, CENTER NO.2 | ||||
| 17420-22110 |
1NRFE..NRE150 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06089 |
1NDTV..NDE150..6F,6FS;1ADFTV,1NRFE,1ZR#,2ZRFAE..ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-22500 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06089 |
1NRFE..NRE150 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-28031 |
1NRFE..NRE150 |
1 | ||
| 17482 - BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17482-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
3 | ||
| 17482 - BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17482-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
3 | ||
| 17482 - BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17482-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
3 | ||
| 17483 - NUT, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17483-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
3 | ||
| 17483 - NUT, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17483-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
3 | ||
| 17483 - NUT, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17483-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
3 | ||
| 17495 - ACTUATOR, EXHAUST PIPE GAS CONTROL | ||||
| 17495-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 17496 - STOPPER, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17496-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 17498 - CASE, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17498-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-47010 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22030 |
1NDTV..NDE150..6F,6FS;1ADFTV,1NRFE,1ZR#,2ZRFAE..ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22040 |
1NDTV..NDE150..6F,6FS;1ADFTV,1NRFE,1ZR#,2ZRFAE..ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22040 |
1NDTV..NDE150..6F,6FS;1ADFTV,1NRFE,1ZR#,2ZRFAE..ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22040 |
1NDTV..NDE150..6F,6FS;1ADFTV,1NRFE,1ZR#,2ZRFAE..ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
3 | ||
| Common parts | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| 91553-81035 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8716 | ||||
