Toyota Auris/corolla (jpp) NRE150 RADIATOR & WATER OUTLET

NRE150L-AHFNKW (2008)

Toyota Auris/Corolla (Jpp)

Production Sep 2008 - Oct 2009

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

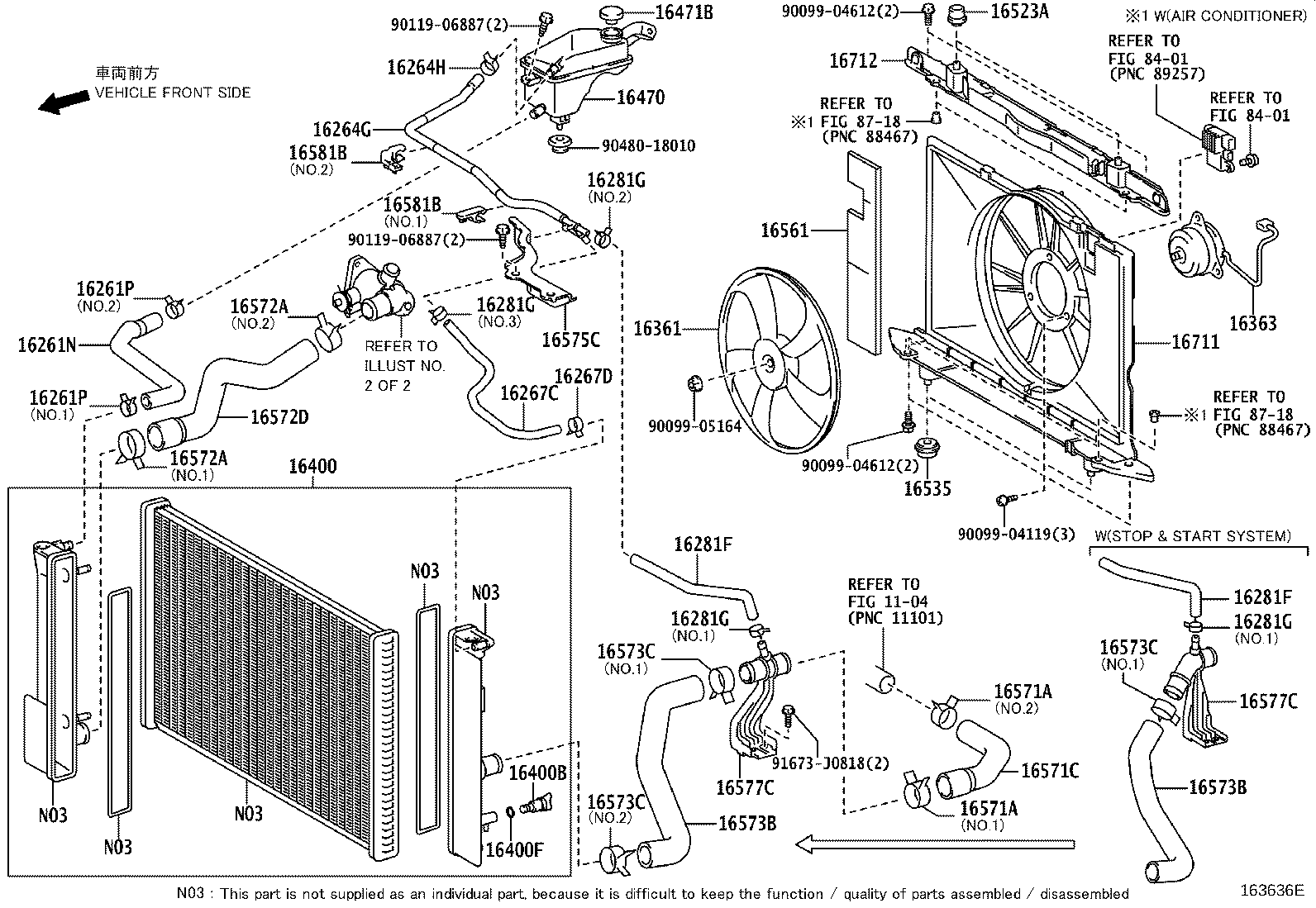

ILLUST NO. 1 OF 2(0809- )1NRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261N - HOSE, WATER BY-PASS, NO.2
16261-21150	1NRFE..NRE150	09/2008 - 10/2009	1
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-52501	1NRFE..NRE150 NO.2	09/2008 - 10/2009	1
96136-52201	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-52501	1NRFE..NRE150 NO.2	09/2008 - 10/2009	1
96136-52201	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
16264G - HOSE, WATER BY-PASS, NO.3
16264-21090	1NRFE..NRE150	09/2008 - 10/2009	1
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-52101	1NRFE..NRE150	09/2008 - 10/2009	1
16267C - HOSE, WATER BY-PASS, NO.4
16267-21030	1NRFE..NRE150	09/2008 - 10/2009	1
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-15022	1NRFE..NRE150	09/2008 - 10/2009	1
16281F - HOSE, WATER BY-PASS, NO.5
16281-47010	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	09/2008 - 10/2009	1
16281-37040	1NRFE..NRE150	09/2008 - 10/2009	1
16281F - HOSE, WATER BY-PASS, NO.5
16281-47010	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	09/2008 - 10/2009	1
16281-37040	1NRFE..NRE150	09/2008 - 10/2009	1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022	1NRFE..NRE150 NO.3	09/2008 - 10/2009	1
96136-51901	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
90467-17013	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022	1NRFE..NRE150 NO.3	09/2008 - 10/2009	1
96136-51901	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
90467-17013	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022	1NRFE..NRE150 NO.3	09/2008 - 10/2009	1
96136-51901	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
90467-17013	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-15022	1NRFE..NRE150 NO.3	09/2008 - 10/2009	1
96136-51901	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
90467-17013	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
16361 - FAN
16361-22100	1NRFE..NRE150	09/2008 - 10/2009	1
16363 - MOTOR, COOLING FAN
16363-22120	1NRFE..NRE150	09/2008 - 10/2009	1
16400 - RADIATOR ASSY
16400-22160	1NRFE..NRE150	09/2008 - 10/2009	1
16400-22250	1NRFE..NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)	09/2008 - 10/2009	1
16400-22250	1NRFE..NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)	09/2008 - 10/2009	1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280	1NRFE..NRE150	09/2008 - 10/2009	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050	1N#..NDE150,NRE150..6F,6FS	09/2008 - 10/2009	1
16470 - TANK ASSY, RADIATOR RESERVE
16480-22080	1NRFE..NRE150	09/2008 - 10/2009	1
16471B - CAP, RESERVE TANK
16475-51010	1N#..NDE150,NRE150..6F,6FS	09/2008 - 10/2009	1
16523A - CUSHION, RADIATOR SUPPORT
16523-21060	1N#..NDE150,NRE150..6F,6FS	09/2008 - 10/2009	2
16535 - SUPPORT, RADIATOR, LOWER
16535-74230	1NRFE..NRE150	09/2008 - 10/2009	2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-22030	1NRFE..NRE150	09/2008 - 10/2009	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-44301	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
96136-43901	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-44301	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
96136-43901	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
16571C - HOSE, RADIATOR, NO.1
16571-47040	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	09/2008 - 10/2009	1
16571-47050	1NRFE..NRE150	09/2008 - 10/2009	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96136-43901	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
96136-44301	1N#..NDE150,NRE150..6F,6FS NO.1	09/2008 - 10/2009	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96136-43901	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
96136-44301	1N#..NDE150,NRE150..6F,6FS NO.1	09/2008 - 10/2009	1
16572D - HOSE, RADIATOR, NO.2
16572-47040	1NRFE..NRE150	09/2008 - 10/2009	1
16573B - HOSE, RADIATOR, NO.3
16573-37040	1NRFE..NRE150	09/2008 - 10/2009	1
16573-47020	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	09/2008 - 10/2009	1
16573B - HOSE, RADIATOR, NO.3
16573-37040	1NRFE..NRE150	09/2008 - 10/2009	1
16573-47020	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	09/2008 - 10/2009	1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-44301	1NRFE..NRE150 NO.1	09/2008 - 08/2009	1
96136-44301	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
90466-35001	1NRFE..NRE150 NO.1	09/2009 - 10/2009	1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-44301	1NRFE..NRE150 NO.1	09/2008 - 08/2009	1
96136-44301	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
90466-35001	1NRFE..NRE150 NO.1	09/2009 - 10/2009	1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-44301	1NRFE..NRE150 NO.1	09/2008 - 08/2009	1
96136-44301	1N#..NDE150,NRE150..6F,6FS NO.2	09/2008 - 10/2009	1
90466-35001	1NRFE..NRE150 NO.1	09/2009 - 10/2009	1
16575C - BRACKET, WATER HOSE CLAMP, NO.1
16575-22020	1N#..NDE150,NRE150..6F,6FS	09/2008 - 06/2009	1
16575-37020	1N#..NDE150,NRE150	07/2009 - 10/2009	1
16577C - PIPE, RADIATOR
16577-37030	1NRFE..NRE150	09/2008 - 10/2009	1
16577-47050	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	09/2008 - 10/2009	1
16577C - PIPE, RADIATOR
16577-37030	1NRFE..NRE150	09/2008 - 10/2009	1
16577-47050	1NRFE..NRE150 STOP & START SYSTEM PACKAGE	09/2008 - 10/2009	1
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-22110	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
16581-22120	1NRFE..NRE150 NO.2	09/2008 - 10/2009	1
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-22110	1NRFE..NRE150 NO.1	09/2008 - 10/2009	1
16581-22120	1NRFE..NRE150 NO.2	09/2008 - 10/2009	1
16711 - SHROUD, FAN
16711-22150	1NRFE..NRE150	09/2008 - 10/2009	1
16712 - SHROUD, FAN, NO.2
16712-22040	1NRFE..NRE150	09/2008 - 10/2009	1
Common parts
90099-04119
90099-04612
90099-05164
90119-06887
90480-18010
91673-J0818
Linked diagrams
1104
8401
8718

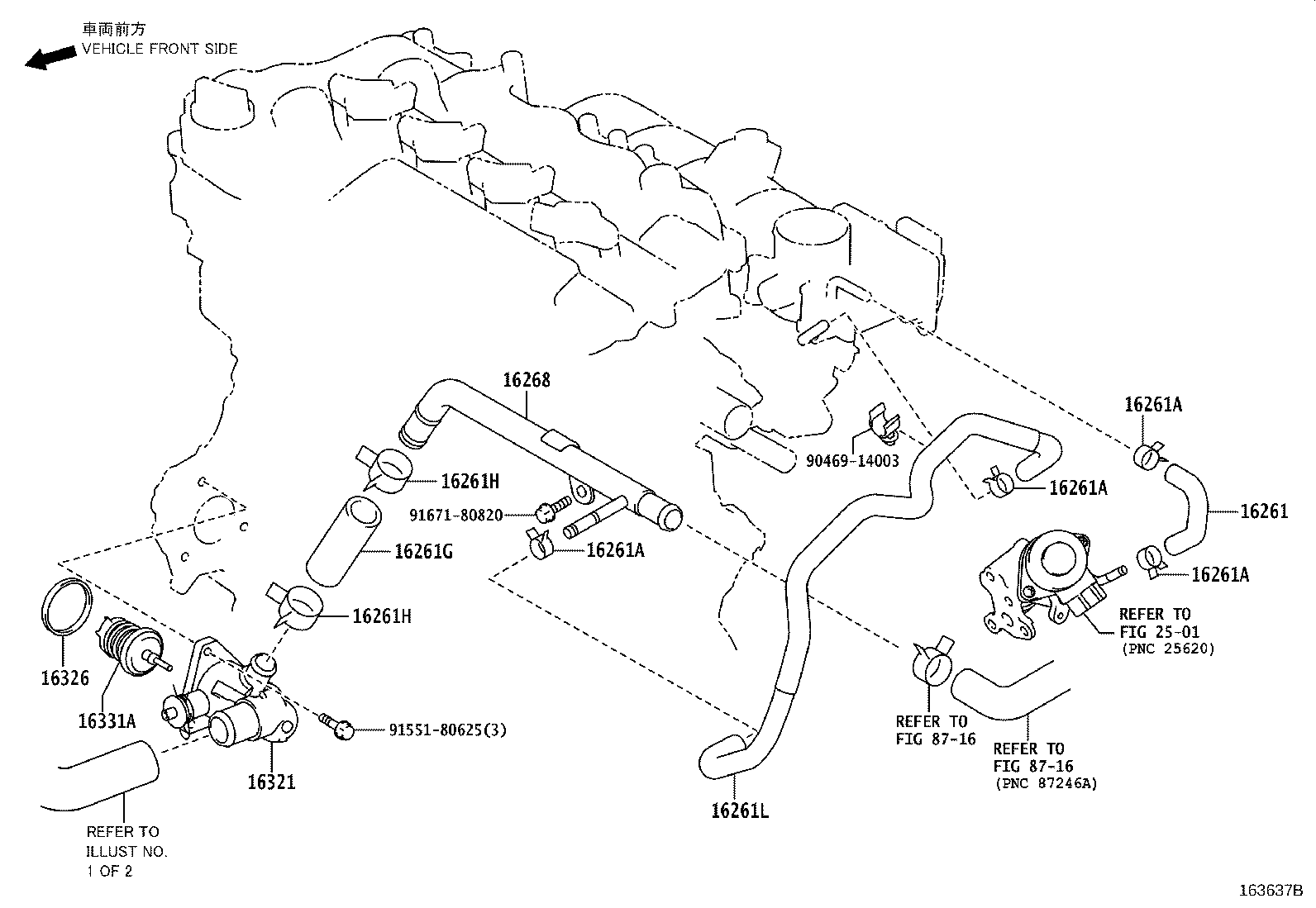

ILLUST NO. 2 OF 2(0809- )1NRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-47010	1NRFE..NRE150	09/2008 - 10/2009	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501	1NRFE..NRE150	09/2008 - 10/2009	4
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501	1NRFE..NRE150	09/2008 - 10/2009	4
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501	1NRFE..NRE150	09/2008 - 10/2009	4
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-41501	1NRFE..NRE150	09/2008 - 10/2009	4
16261G - HOSE, WATER BY-PASS, NO.1
16261-47020	1NRFE..NRE150	09/2008 - 10/2009	1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901	1NRFE..NRE150	09/2008 - 10/2009	2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901	1NRFE..NRE150	09/2008 - 10/2009	2
16261L - HOSE, WATER BY-PASS
16261-47030	1NRFE..NRE150	09/2008 - 10/2009	1
16268 - PIPE, WATER BY-PASS, NO.1
16268-47030	1NRFE..NRE150	09/2008 - 10/2009	1
16321 - INLET, WATER
16321-47010	1NRFE..NRE150	09/2008 - 10/2009	1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-47010	1NRFE..NRE150	09/2008 - 10/2009	1
16331A - THERMOSTAT
90916-03147	1NRFE..NRE150 *WAX 82-95	09/2008 - 10/2009	1
Common parts
90469-14003
91551-80625
91671-80820
Linked diagrams
2501
8716
