NRE150L-AHFNKW (2008)
Toyota Auris/Corolla (Jpp)
Production
Sep 2008
-
Oct 2009
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0809- )1NRFE

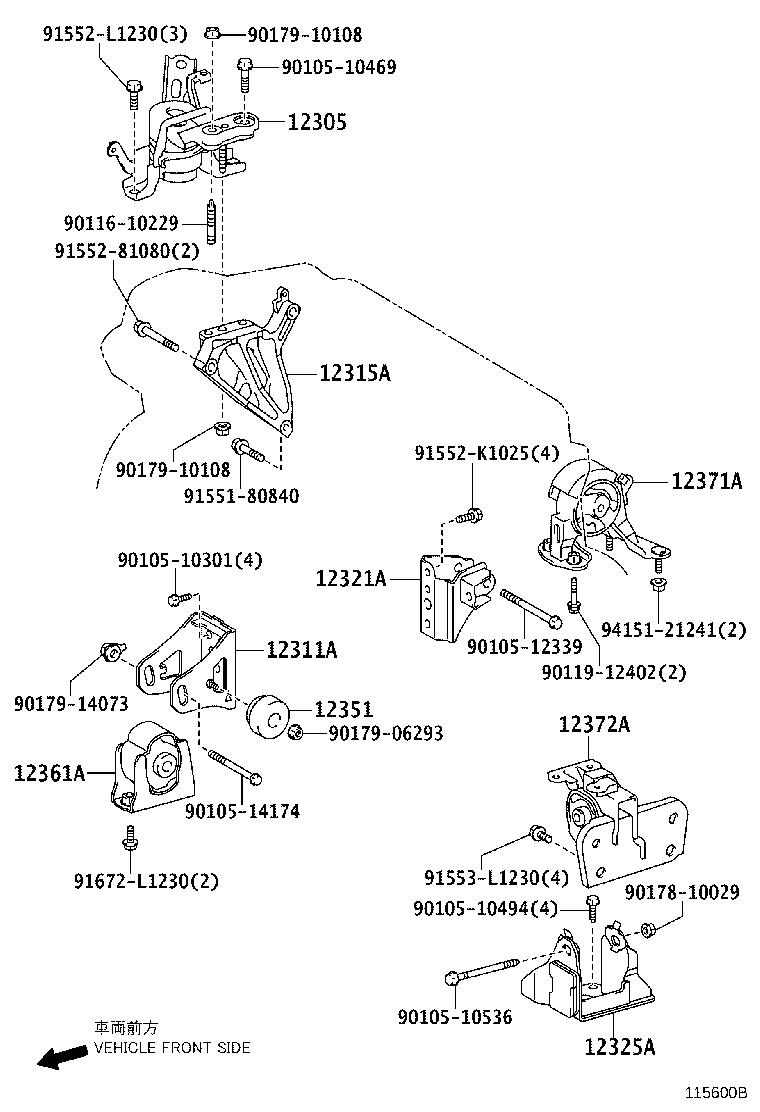

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-47010 |
1NRFE..NRE150 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-37120 |
1NRFE..NRE150 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-47040 |
1NRFE..NRE150 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-47050 |
1N#..NDE150,NRE150..6F,6FS |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-47050 |
1NRFE..NRE150 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-37060 |
1N#..NDE150,NRE150..6F,6FS |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-28230 |
1N#..NDE150,NRE150..6F,6FS |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-22220 |
1N#..NDE150,NRE150..6F,6FS |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-47040 |
1NRFE..NRE150 |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10536 | ||||
| 90105-12339 | ||||
| 90105-14174 | ||||
| 90116-10229 | ||||
| 90119-12402 | ||||
| 90178-10029 | ||||
| 90179-06293 | ||||
| 90179-10108 | ||||
| 90179-14073 | ||||
| 91551-80840 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91553-L1230 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
