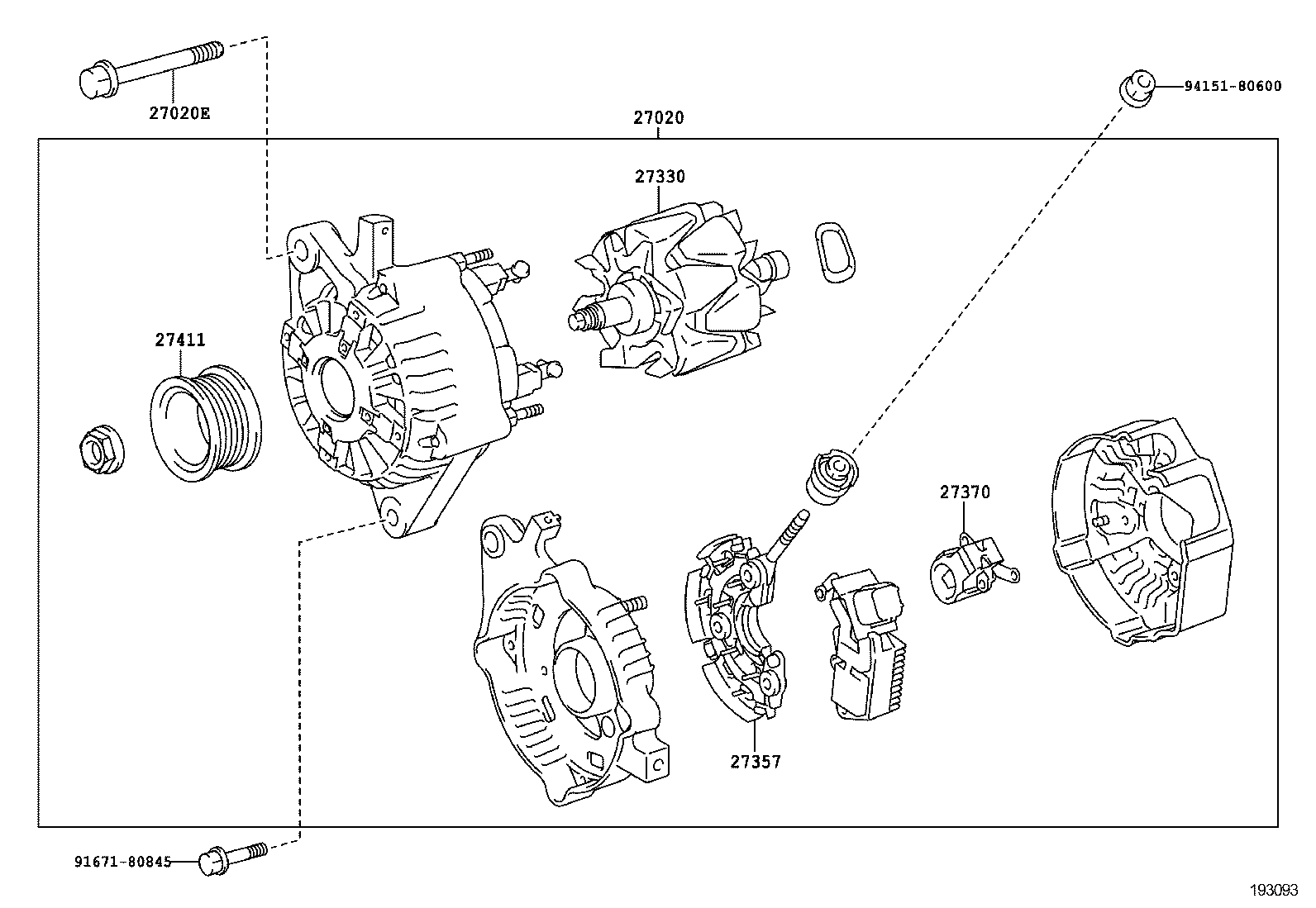

NRE150L-AHFDKW (2008)
Toyota Auris/Corolla (Jpp)
(0809-0910)1NRFE
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-47020 |
1NRFE..NRE150..LHD 12V 100A,COLD AREA SPEC |
1 | ||
| 27060-47030 |
1NRFE..NRE150 12V 100A,STOP & START SYSTEM PACKAGE |
1 | ||
| 27060-47010 |
1NRFE..NRE150 12V 80A |
1 | ||
| 27060-47030 |
1NRFE..NRE150..LHD 12V 100A,STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1NRFE..NRE150 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27330-23130 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27330-23130 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27330-30130 |
1NRFE..NRE150 |
1 | ||
| 27330-62220 |
1NRFE..NRE150 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-22200 |
1NRFE..NRE150 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27370-31220 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27370-23120 |
1NRFE..NRE150 |
1 | ||
| 27370-31220 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-22210 |
1NRFE..NRE150 |
1 | ||
| Common parts | ||||
| 91671-80845 | ||||
| 94151-80600 | ||||

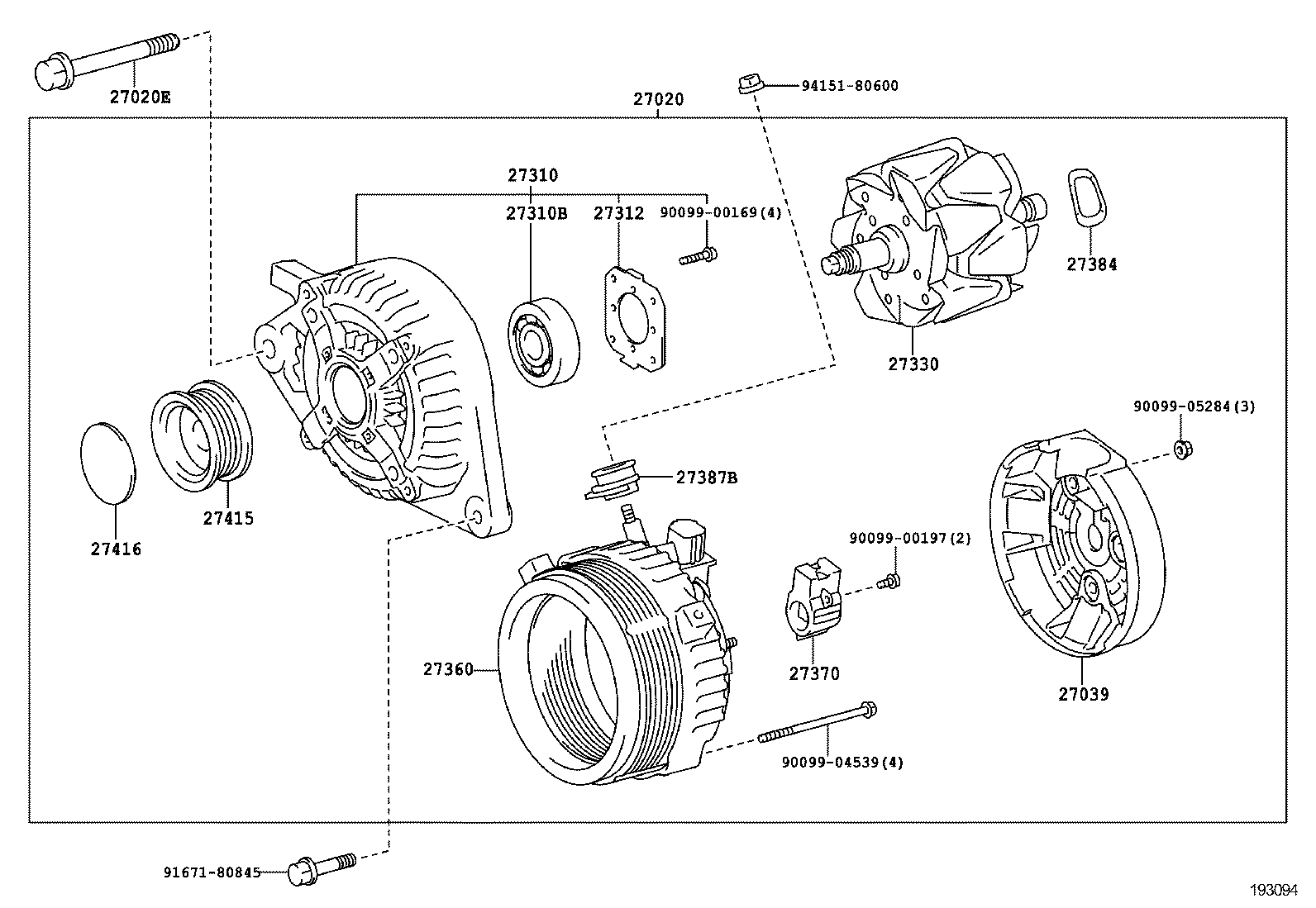

(0809-0910)1NRFE
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-47020 |
1NRFE..NRE150..LHD 12V 100A,COLD AREA SPEC |
1 | ||
| 27060-47030 |
1NRFE..NRE150 12V 100A,STOP & START SYSTEM PACKAGE |
1 | ||
| 27060-47010 |
1NRFE..NRE150 12V 80A |
1 | ||
| 27060-47030 |
1NRFE..NRE150..LHD 12V 100A,STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1NRFE..NRE150 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26170 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27039-26170 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27039-31390 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27039-31390 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27039-26170 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27039-31390 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-47140 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27310-47140 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27310-47140 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 90099-10223 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 90099-10223 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27312-72100 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27312-72100 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27330-23130 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27330-23130 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27330-30130 |
1NRFE..NRE150 |
1 | ||
| 27330-62220 |
1NRFE..NRE150 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-47150 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27360-47140 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27360-47150 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27370-31220 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27370-23120 |
1NRFE..NRE150 |
1 | ||
| 27370-31220 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27384-50030 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27384-50030 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27387-20130 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27387-20130 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0Y020 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27415-0Y020 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 27415-0Y020 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27415-0Y020 |
1NRFE..NRE150..TERRA STOP & START SYSTEM PACKAGE&AIR CONDITIONER-MANUAL AIR CONDITIONER |
1 | ||
| 27415-0Y020 |
1NRFE..NRE150..LHD..TERRA COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER |
1 | ||
| 27415-0Y020 |
1NRFE..NRE150..LHD..TERRA STOP & START SYSTEM PACKAGE&COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 27416-0W050 |
1NRFE..NRE150..LHD..TERRA STOP & START SYSTEM PACKAGE&COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER |
1 | ||
| 27416-0W050 |
1NRFE..NRE150..TERRA STOP & START SYSTEM PACKAGE&AIR CONDITIONER-MANUAL AIR CONDITIONER |
1 | ||
| 27416-0W050 |
1NRFE..NRE150..LHD COLD AREA SPEC |
1 | ||
| 27416-0W050 |
1NRFE..NRE150..LHD..TERRA COLD AREA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER |
1 | ||
| 27416-0W050 |
1NRFE..NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 91671-80845 | ||||
| 94151-80600 | ||||
