NDE150R-AHMNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0610- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

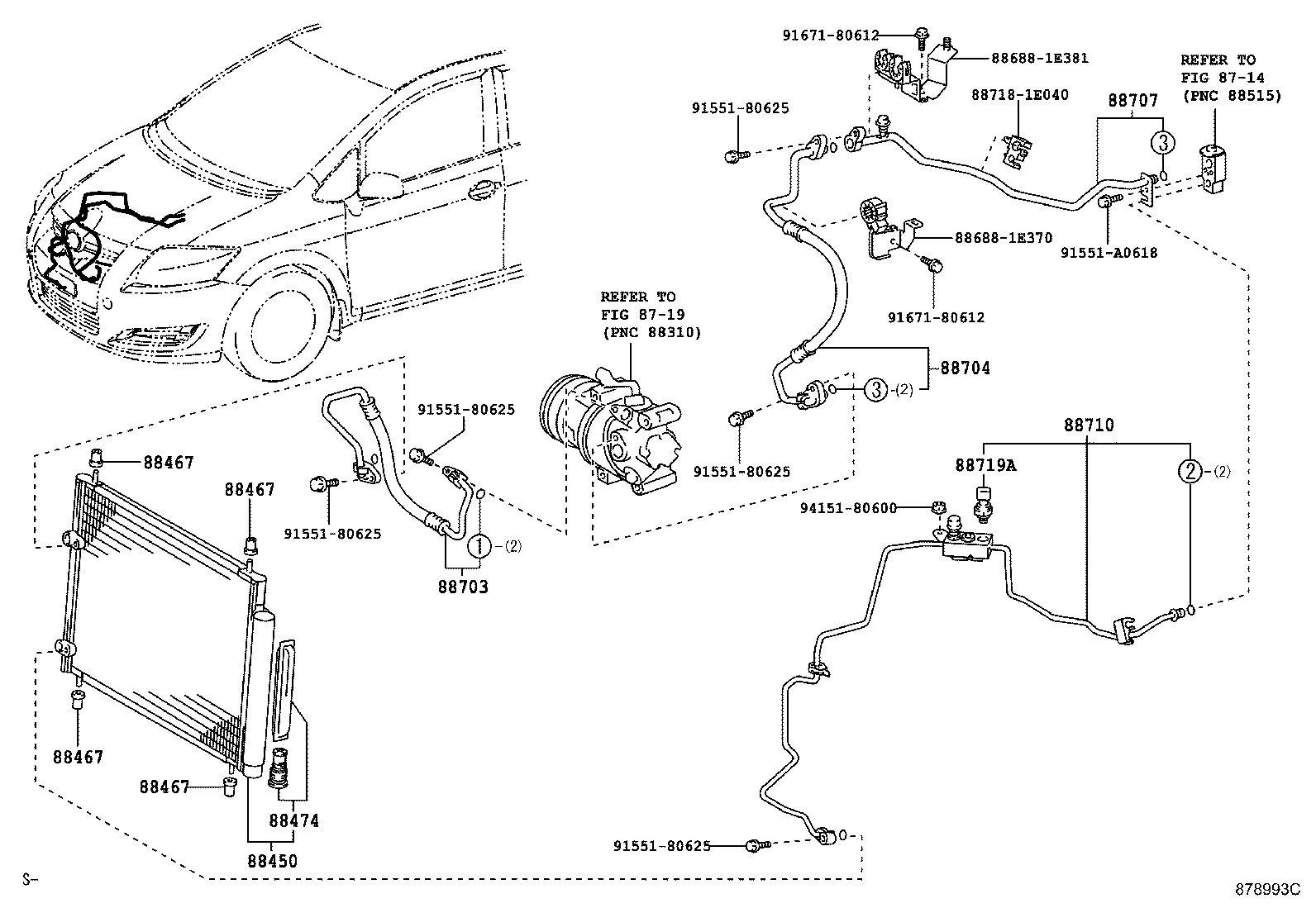

ILLUST NO. 1 OF 2(0610- )NDE150

Click highlighted areas on diagram

diagram 8714 8719 88450 88467 88467 88467 88467 88474 886881E370 886881E381 88703 88704 88707 88710 887181E040 88719A 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 9167180612 9167180612 9415180600
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-02280

NDE150..SOL

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL

 4
88474 - DRYER, COOLER
88474-17010

NDE150..(5F,5FS)..SOL

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-12850

NDE150..SOL

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-1A200

NDE150..SOL

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-12250

NDE150,ZRE151,ZZE150..SOL

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-12770

NDE150..SOL

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NDE150,ZRE151,ZZE150..SOL

 1
Common parts
88688-1E370
88688-1E381
88718-1E040
91551-80625
91551-A0618
91671-80612
94151-80600
