NDE150R-AHMNYW (2006)
Toyota Auris/Corolla (Jpp)
ILLUST NO. 1 OF 3(0610- )
MANUAL HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-12140 |
NDE150..RHD..SOL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55901-12140 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-12070 |
NDE150 SUB COLD AREA SPEC |
1 | ||
| 55902-12060 |
NDE150..RHD..SOL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55902-12060 |
NDE150 |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-12020 |
ADE150..SOL;NDE150..(5F,5FS)..SOL |
1 | ||
| 55903-12020 |
ADE150..SOL;NDE150..(5F,5FS)..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55903-12020 |
ADE150..SOL;NDE150..(5F,5FS)..SOL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2 | ||||
| 55906-26060 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
1 | ||
| 55906-26060 |
ADE150..SOL;NDE150..(5F,5FS)..SOL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55906-26060 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-26080 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55909-26080 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
1 | ||
| 55909-26080 |
ADE150..SOL;NDE150..(5F,5FS)..SOL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
NDE150..RHD..SOL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
3 | ||
| 90010-01122 |
NDE150,ZRE151,ZZE150 |
3 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
NDE150..RHD..SOL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
3 | ||
| 90010-01122 |
NDE150,ZRE151,ZZE150 |
3 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01122 |
NDE150..RHD..SOL SUB COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
3 | ||
| 90010-01122 |
NDE150,ZRE151,ZZE150 |
3 | ||
| Linked diagrams | ||||
| 5501 | ||||
| 8302 | ||||
ILLUST NO. 1 OF 3(0610- )
AUTO HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-12A40 |
ADE150,NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 2 OF 3(0610- )RHD

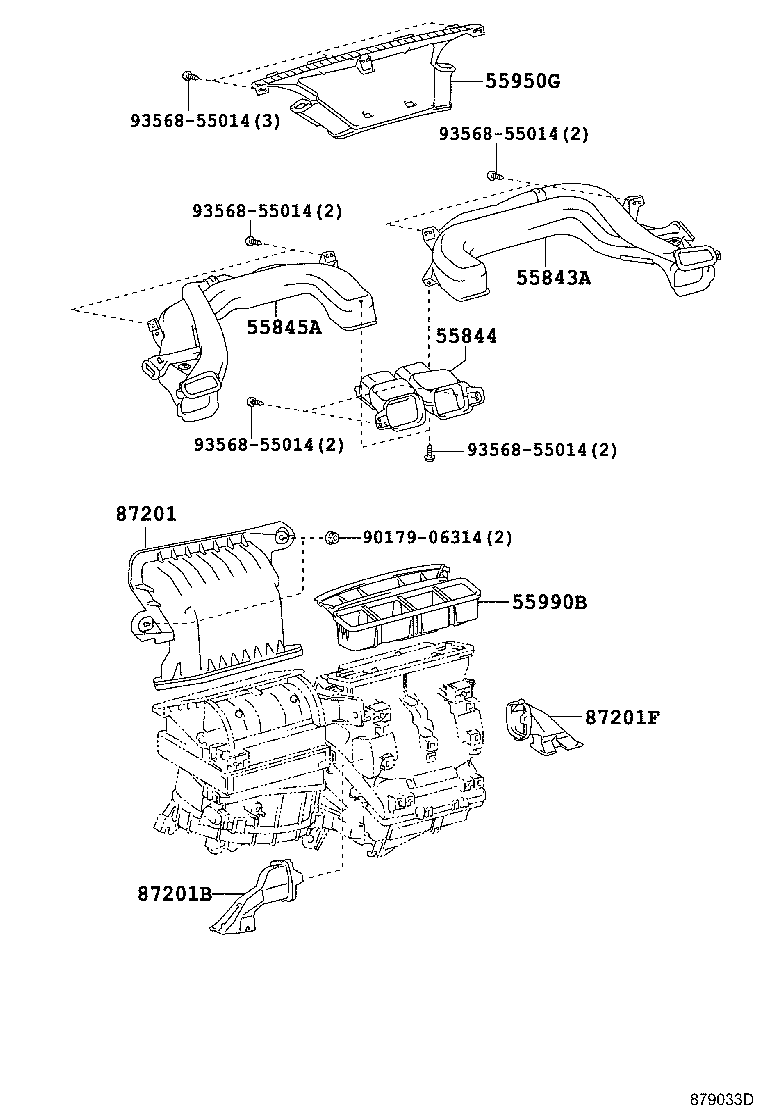

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12330 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12490 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55844-12510 |
NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12220 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12260 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-12060 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87220-12010 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-12330 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-12320 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| Common parts | ||||
| 90179-06314 | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 3(0610- )
SENSOER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-12010 |
NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-51010 |
NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 88625-51010 |
NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 88625-47021 |
NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-12710 |
NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 88688-1E420 | ||||
