Toyota Auris/corolla (jpp) NDE150 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
AURIS/COROLLA (JPP)
NDE150R-AHMNYW (2006)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

NDE150R-AHMNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008

Engine 1NDTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

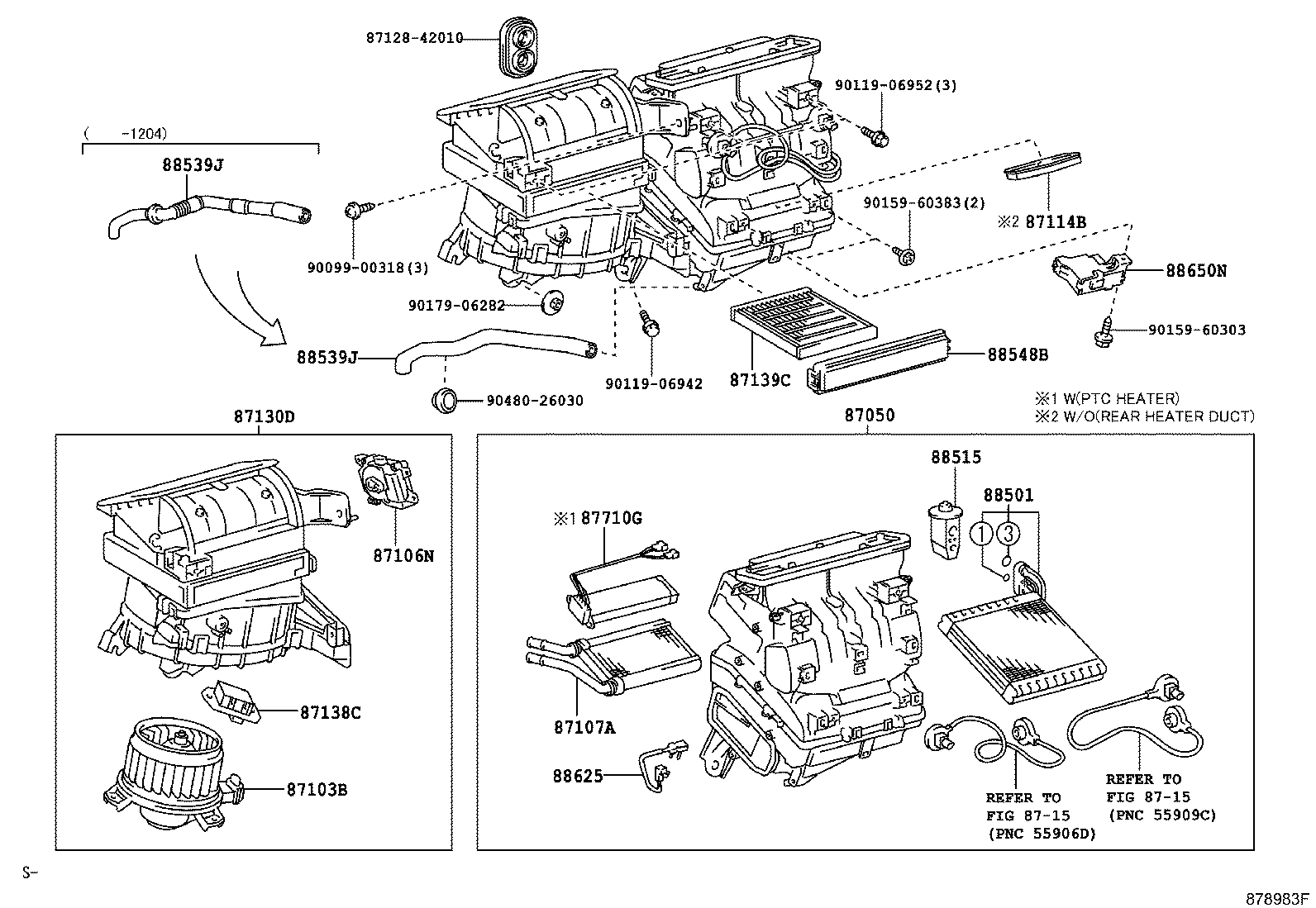

ILLUST NO. 1 OF 2(0610- )RHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12340	ADE150..RHD;NDE150..RHD..(5F,5FS)..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 01/2009	1
87050-12320	ADE150..RHD;NDE150..RHD..(5F,5FS)..SOL	10/2006 - 01/2009	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42080	ADE150,NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 10/2007	1
87103-42070	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
87103-42081	NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	11/2007 - 12/2008	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42110	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
87106-42120	NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 12/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	10/2006 - 01/2009	1
87114B - COVER, HEATER
87114-12080	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
87130D - BLOWER ASSY
87130-12470	ADE150,NDE150..RHD	10/2006 - 05/2008	1
87130-12520	ADE150,NDE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 05/2008	1
87130-12471	NDE150..RHD	06/2008 - 12/2008	1
87130-12521	NDE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	06/2008 - 12/2008	1
87138C - RESISTOR, BLOWER
87138-26150	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
87139C - FILTER, CLEAN AIR
87139-30040	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	10/2006 - 01/2009	1
87710G - QUICK HEATER ASSY
87710-12010	NDE150..RHD	10/2006 - 12/2008	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-26210	ADE150,NDE150,ZRE151,ZZE150..SOL	10/2006 - 05/2008	1
88515 - VALVE, COOLER EXPANSION
88515-42090	ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL	10/2006 - 01/2009	1
88539J - HOSE, DRAIN COOLER
88539-12190	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
88539J - HOSE, DRAIN COOLER
88539-12190	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
88548B - CASE, AIR FILTER
88548-42010	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	NDE150,ZRE151,ZZE150..SOL	10/2006 - 12/2008	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12B10	ADE150,NDE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 03/2008	1
88650-12A90	ADE150;NDE150..5F,5FS	10/2006 - 01/2009	1
Common parts
87128-42010
90099-00318
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030
Linked diagrams
8715

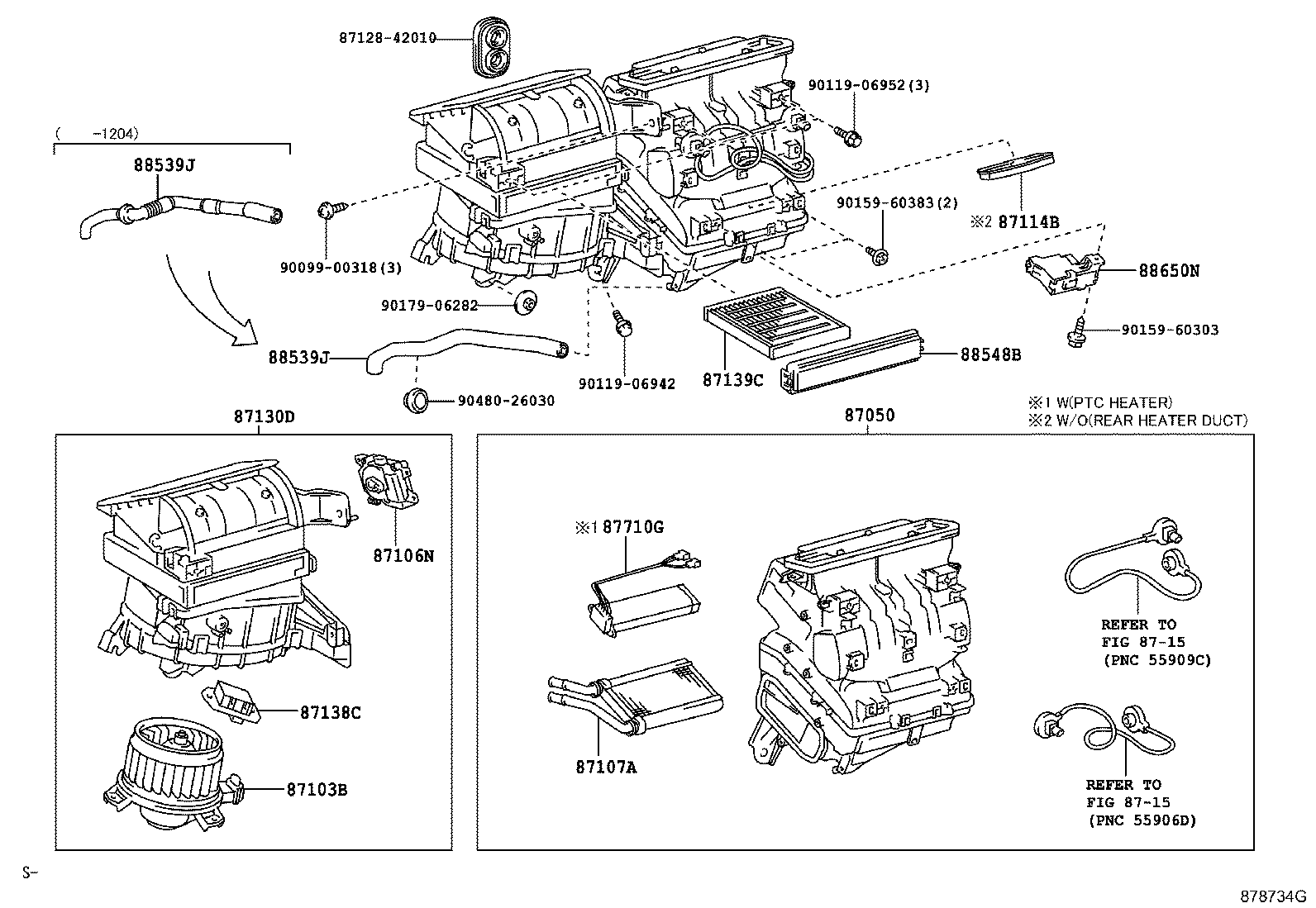

ILLUST NO. 1 OF 2(0610- )RHD

Click highlighted areas on diagram

MANUAL W/O(AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12340	ADE150..RHD;NDE150..RHD..(5F,5FS)..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 01/2009	1
87050-12320	ADE150..RHD;NDE150..RHD..(5F,5FS)..SOL	10/2006 - 01/2009	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42080	ADE150,NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 10/2007	1
87103-42070	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
87103-42081	NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	11/2007 - 12/2008	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42110	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
87106-42120	NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 12/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	10/2006 - 01/2009	1
87114B - COVER, HEATER
87114-12080	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
87130D - BLOWER ASSY
87130-12470	ADE150,NDE150..RHD	10/2006 - 05/2008	1
87130-12520	ADE150,NDE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 05/2008	1
87130-12471	NDE150..RHD	06/2008 - 12/2008	1
87130-12521	NDE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	06/2008 - 12/2008	1
87138C - RESISTOR, BLOWER
87138-26150	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
87139C - FILTER, CLEAN AIR
87139-30040	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	10/2006 - 01/2009	1
87710G - QUICK HEATER ASSY
87710-12010	NDE150..RHD	10/2006 - 12/2008	1
88539J - HOSE, DRAIN COOLER
88539-12190	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
88539J - HOSE, DRAIN COOLER
88539-12190	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
88548B - CASE, AIR FILTER
88548-42010	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12B10	ADE150,NDE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 03/2008	1
88650-12A90	ADE150;NDE150..5F,5FS	10/2006 - 01/2009	1
Common parts
87128-42010
90099-00318
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030
Linked diagrams
8715

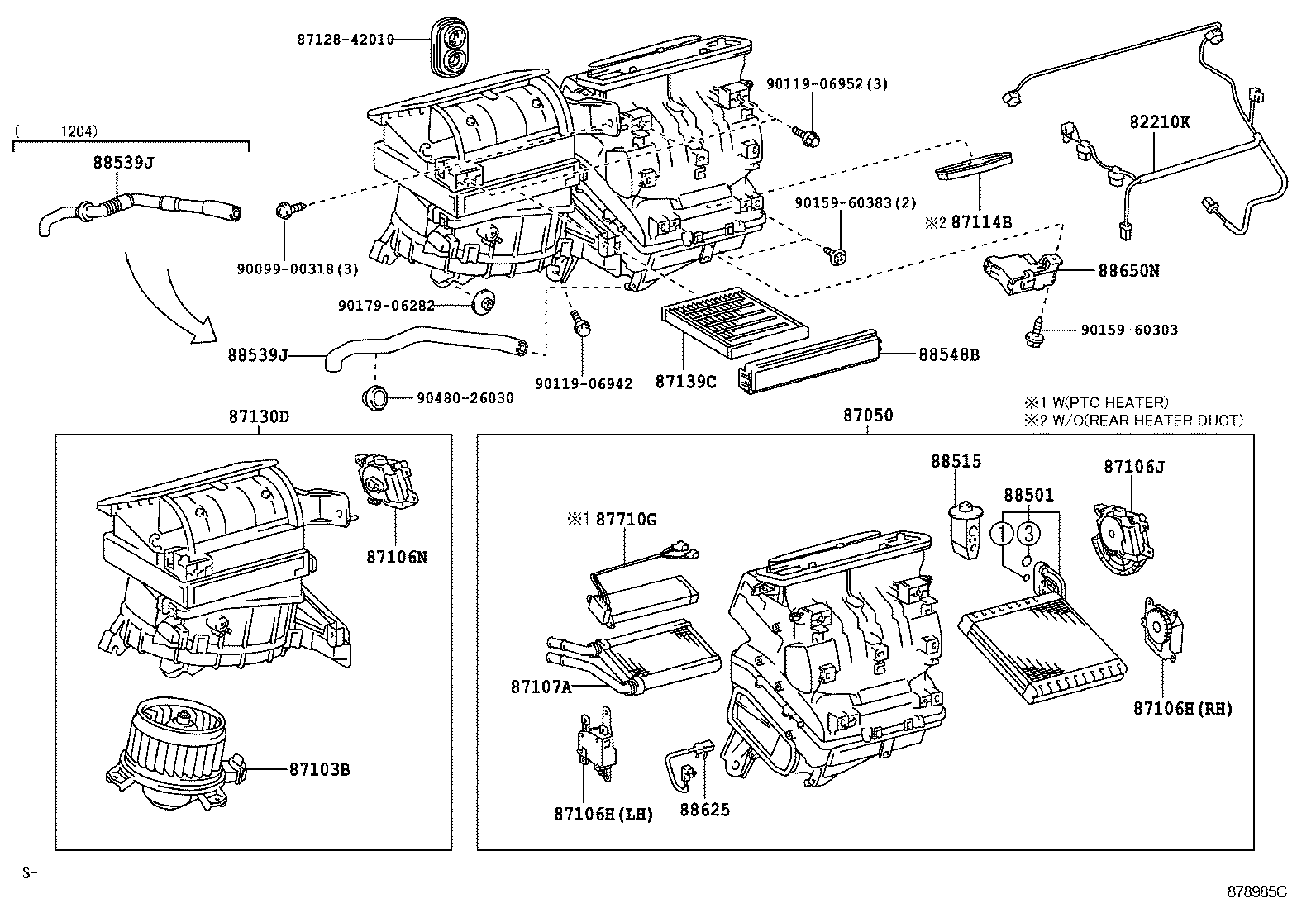

ILLUST NO. 1 OF 2(0610- )RHD

Click highlighted areas on diagram

AUTO DUAL CONTROL AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-12040	NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 01/2009	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12340	ADE150..RHD;NDE150..RHD..(5F,5FS)..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 01/2009	1
87050-12320	ADE150..RHD;NDE150..RHD..(5F,5FS)..SOL	10/2006 - 01/2009	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42080	ADE150,NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 10/2007	1
87103-42070	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
87103-42081	NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	11/2007 - 12/2008	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-12170	NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),RH	10/2006 - 12/2008	1
87106-42090	NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),LH	10/2006 - 12/2008	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-12170	NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),RH	10/2006 - 12/2008	1
87106-42090	NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),LH	10/2006 - 12/2008	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-42100	NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 12/2008	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42110	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
87106-42120	NDE150,ZRE151,ZZE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 12/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	10/2006 - 01/2009	1
87114B - COVER, HEATER
87114-12080	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
87130D - BLOWER ASSY
87130-12470	ADE150,NDE150..RHD	10/2006 - 05/2008	1
87130-12520	ADE150,NDE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 05/2008	1
87130-12471	NDE150..RHD	06/2008 - 12/2008	1
87130-12521	NDE150..RHD..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	06/2008 - 12/2008	1
87139C - FILTER, CLEAN AIR
87139-30040	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	10/2006 - 01/2009	1
87710G - QUICK HEATER ASSY
87710-12010	NDE150..RHD	10/2006 - 12/2008	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-26210	ADE150,NDE150,ZRE151,ZZE150..SOL	10/2006 - 05/2008	1
88515 - VALVE, COOLER EXPANSION
88515-42090	ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL	10/2006 - 01/2009	1
88539J - HOSE, DRAIN COOLER
88539-12190	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
88539J - HOSE, DRAIN COOLER
88539-12190	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
88548B - CASE, AIR FILTER
88548-42010	NDE150,ZRE151,ZZE150..RHD	10/2006 - 12/2008	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	NDE150,ZRE151,ZZE150..SOL	10/2006 - 12/2008	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12B10	ADE150,NDE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)	10/2006 - 03/2008	1
88650-12A90	ADE150;NDE150..5F,5FS	10/2006 - 01/2009	1
Common parts
87128-42010
90099-00318
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030

ILLUST NO. 2 OF 2(0610- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
