NDE150R-AHMNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )RHD

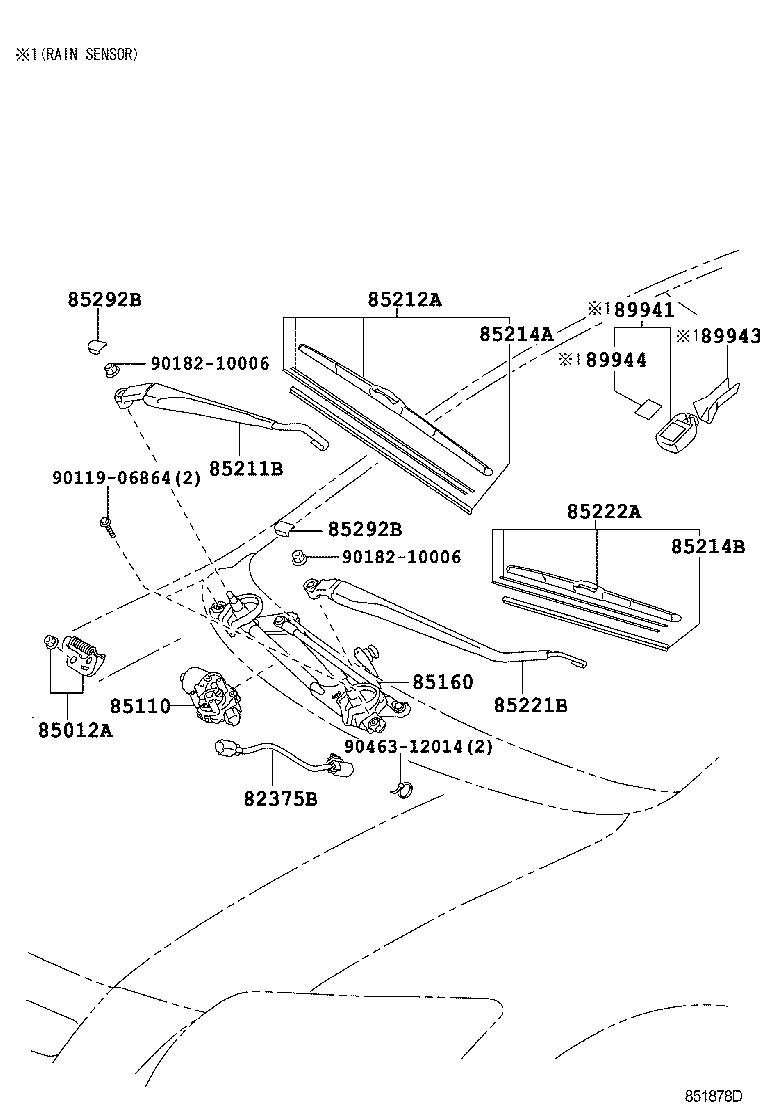

Click highlighted areas on diagram

diagram 82375B 85012A 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 9011906864 9018210006 9018210006 9046312014
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-12320

NDE150,ZRE151,ZZE150

 1
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-58030

NDE150,ZRE151,ZZE150..RHD

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12A00

NDE150,ZRE151,ZZE150..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-12A10

NDE150,ZRE151,ZZE150..RHD

 1
85211B - ARM, FRONT WIPER, RH
85211-12501

NDE150,ZRE151,ZZE150..RHD

 1
85211-12500

ADE150,NDE150,ZRE151,ZZE150..RHD

 1
85212A - BLADE, FR WIPER, RH
85212-12450

ADE150,NDE150,ZRE151,ZZE150..RHD

 1
85212-12450

NDE150,ZRE151,ZZE150..RHD

 1
85214A - RUBBER, WIPER, RH
85214-68020

NDE150,ZRE151,ZZE150..RHD

 1
85214B - RUBBER, WIPER, LH
85214-28090

NDE150,ZRE151,ZZE150..RHD

 1
85221B - ARM, FRONT WIPER, LH
85221-12440

ADE150,NDE150,ZRE151,ZZE150..RHD

 1
85221-12441

NDE150,ZRE151,ZZE150..RHD

 1
85222A - BLADE, FR WIPER, LH
85222-28160

ADE150,NDE150,ZRE151,ZZE150..RHD

 1
85222-28160

NDE150,ZRE151,ZZE150..RHD

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NDE150,ZRE151,ZZE150

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NDE150,ZRE151,ZZE150

 2
89941 - SENSOR, RAIN
89941-42010

NDE150,ZRE151,ZZE150..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
89943 - COVER, RAIN SENSOR
89943-28010

NDE150,ZRE151,ZZE150..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
89944 - TAPE, RAIN SENSOR
89944-42010

NDE150,ZRE151,ZZE150..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
Common parts
90119-06864
90182-10006
90463-12014
