NDE150R-AHMNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )RHD

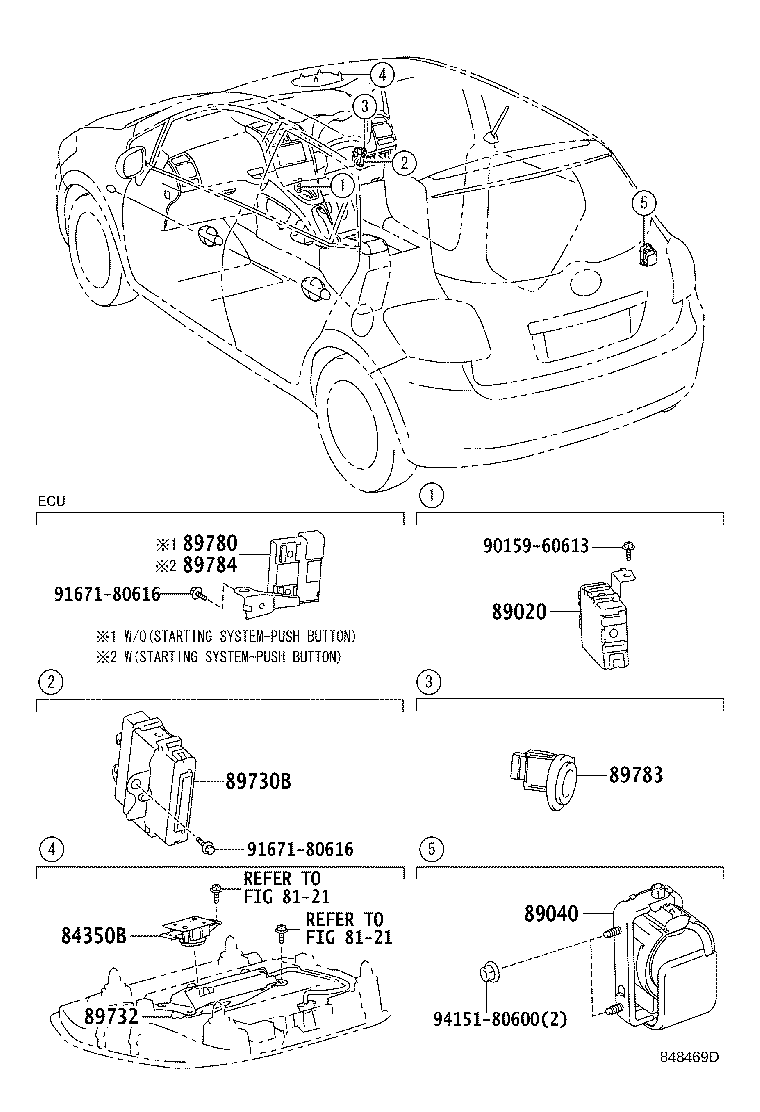

Click highlighted areas on diagram

diagram 8121 8121 84350B 89020 89040 89730B 89732 89780 89783 89784 9015960613 9167180616 9167180616 9415180600
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-12180

NDE150,ZRE151,ZZE150

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-42020

ADE150,NDE150,ZRE151,ZZE150

 1
89783-42040

NDE150,ZRE151,ZZE150

 1
Common parts
90159-60613
91671-80616
94151-80600
Linked diagrams
8121
