NDE150R-AHMNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 8(0610- )

Click highlighted areas on diagram

DOOR

diagram 82151 82152 82153 82154 82184 82185 82666L 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-12B90

NDE150,ZRE151,ZZE150..RHD..SOL

POWER DOOR LOCK-WITH(DOUBLE LOCK)

 1
82151-12B60

NDE150,ZRE151,ZZE150..RHD..SOL

 1
82152 - WIRE, FRONT DOOR, LH
82152-12B80

NDE150,ZRE151,ZZE150..RHD

POWER DOOR LOCK-WITH(DOUBLE LOCK)

 1
82152-12B50

NDE150,ZRE151,ZZE150..RHD

 1
82153 - WIRE, REAR DOOR, NO.1
82153-12530

NDE150,ZRE151,ZZE150..SOL

 1
82153-12570

NDE150,ZRE151,ZZE150..RHD..SOL

POWER DOOR LOCK-WITH(DOUBLE LOCK)

 1
82154 - WIRE, REAR DOOR, NO.2
82154-12480

NDE150,ZRE151,ZZE150..SOL

 1
82154-12520

NDE150,ZRE151,ZZE150..RHD..SOL

POWER DOOR LOCK-WITH(DOUBLE LOCK)

 1
82184 - WIRE, BACK DOOR, NO.1
82184-12620

NDE150,ZRE151,ZZE150..RHD

 1
82185 - WIRE, BACK DOOR, NO.2
82185-12660

NDE150,ZRE151,ZZE150

 1
82666L - HOLDER, CONNECTOR NO.9
82666-12410

NDE150,ZRE151,ZZE150

 1
Common parts
90119-06915

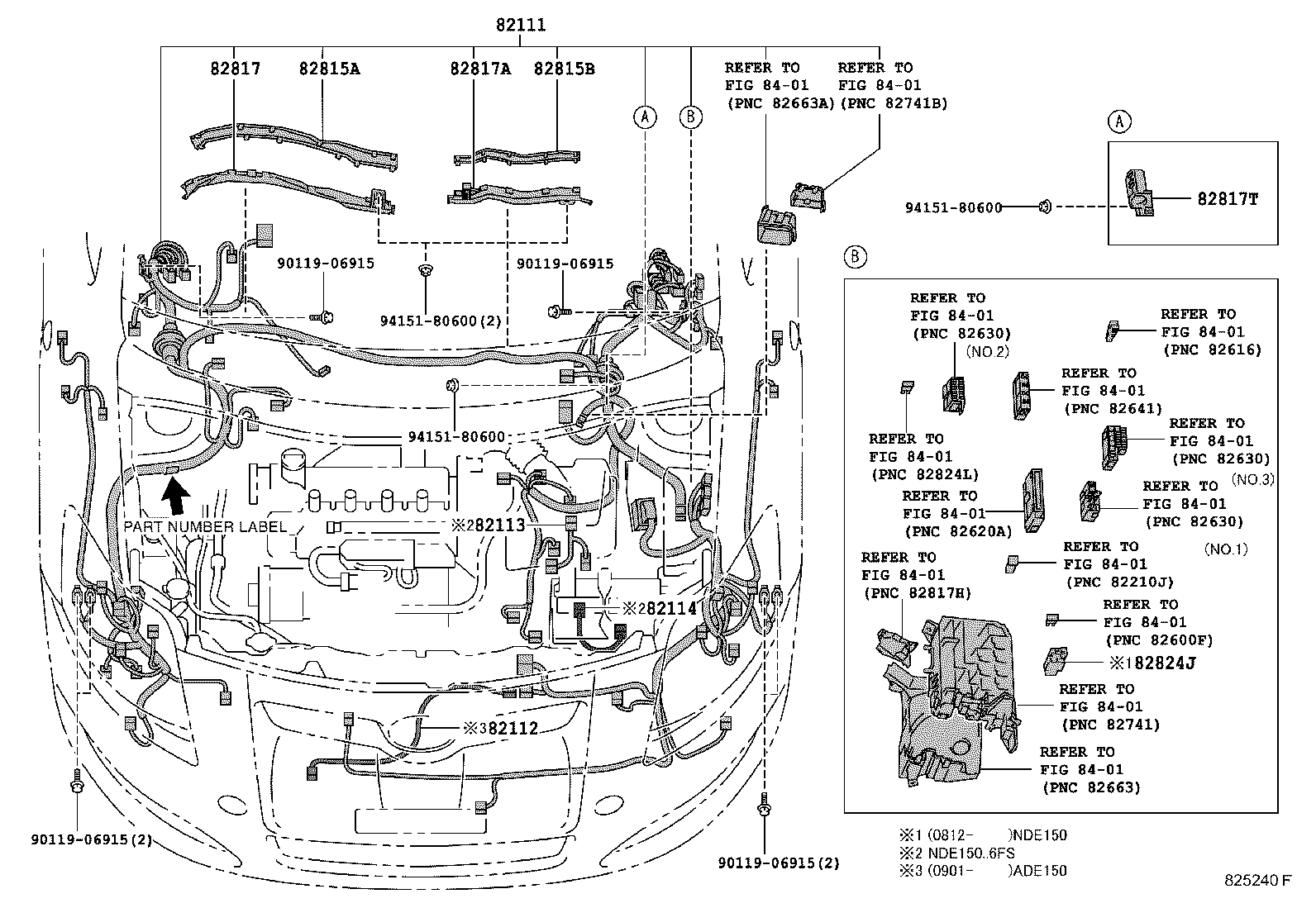

ILLUST NO. 1 OF 8(0610- )ADE150,NDE150..RHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82112 82113 82114 82815A 82815B 82817 82817A 82817T 82824J 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9011906915 9415180600 9415180600 9415180600
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-12M80

NDE150..RHD..5F

 1
82111-12M90

NDE150..RHD..5F

VSC-WITH(W/CUT OFF SWITCH)

 1
82111-12M80

NDE150..RHD..5F

PART NUMBER LABEL=82111-12M80

 1
82111-12M90

NDE150..RHD..5F

PART NUMBER LABEL=82111-12M90

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-12150

NDE150,ZRE151,ZZE150..RHD

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-12160

NDE150,ZRE151,ZZE150..RHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12B10

NDE150,ZRE151,ZZE150..RHD

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-12B20

NDE150,ZRE151,ZZE150..RHD

 1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-12J30

NDE150..RHD

 1
Common parts
90119-06915
94151-80600
Linked diagrams
8401

ILLUST NO. 2 OF 8(0610-0812)NDE150

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82123 82125 82661D 8281502070 8281502090 8281502100 8281502120 8281512070 8281512080 82817B 82817C 82817D 82817E 82817F 82817G 82817J 82817P 82823S 82823T 82991 9011906915 9167180616 9167281018 9167380612 9167380820 9415180600 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-12C60

NDE150..5F

 1
82122 - WIRE, ENGINE, NO.2
82122-12410

NDE150

 1
82122-12400

NDE150

SUB COLD AREA SPEC

 1
82123 - WIRE, ENGINE, NO.3
82123-12410

NDE150

 1
82125 - WIRE, TRANSMISSION
82125-12420

NDE150

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12280

NDE150,ZRE151,ZZE150

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-02380

NDE150

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-02400

NDE150

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-02410

NDE150

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-02430

NDE150

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-12860

NDE150

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-12A10

NDE150

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-12A20

NDE150

 1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-02750

NDE150

 1
82823S - CAP, STARTER TERMINAL
82823-52010

NDE150

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

ADE150,ZZE150;NDE150,ZRE151..5F,5FS

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12120

NDE150

 1
Common parts
82815-02070
82815-02090
82815-02100
82815-02120
82815-12070
82815-12080
90119-06915
91671-80616
91672-81018
91673-80612
91673-80820
94151-80600

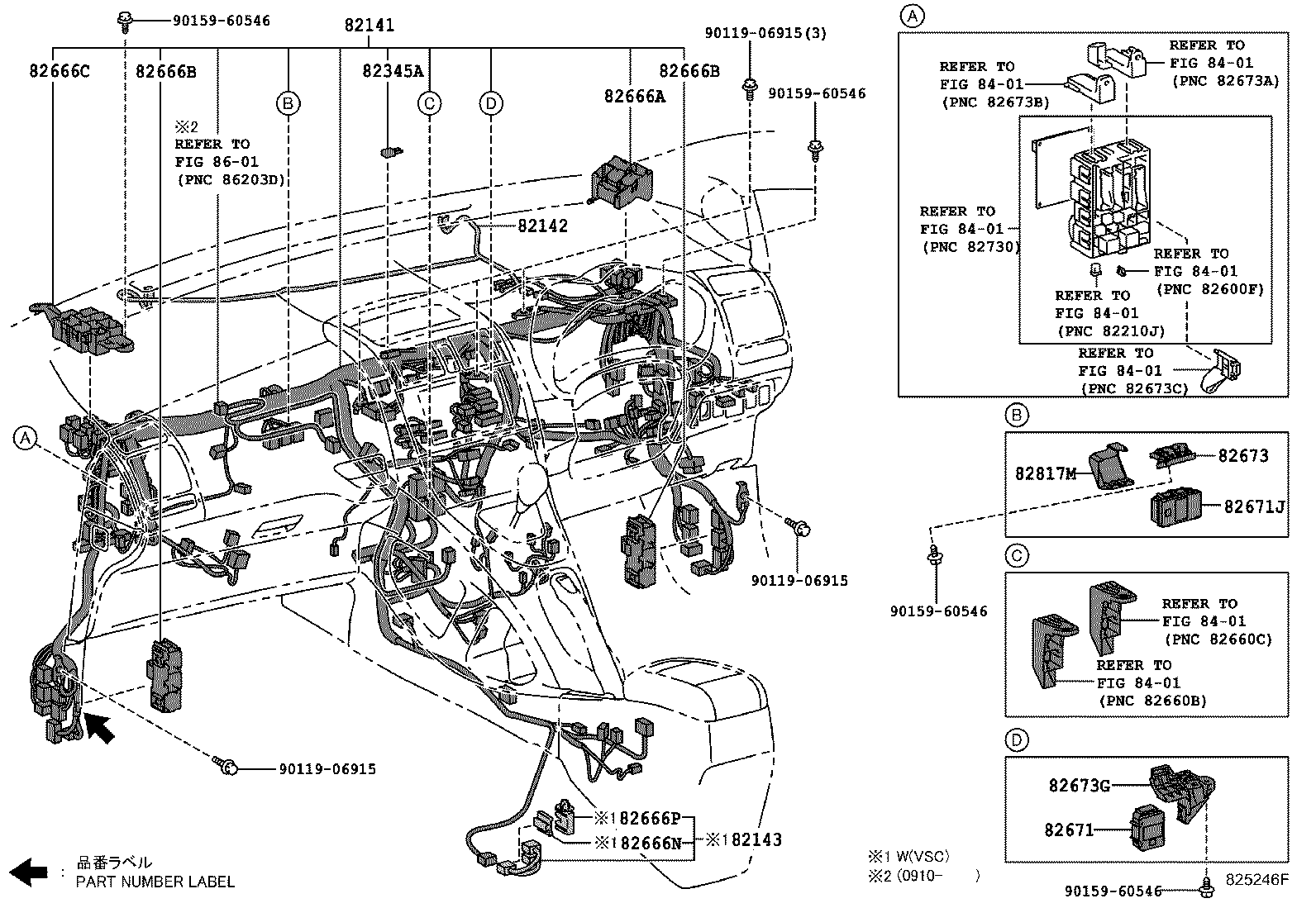

ILLUST NO. 3 OF 8(0610- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 82143 82345A 82666A 82666B 82666B 82666C 82666N 82666P 82671 82671J 82673 82673G 82817M 8401 8401 8401 8401 8401 8401 8401 8401 8601 9011906915 9011906915 9011906915 9015960546 9015960546 9015960546 9015960546
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-1EV40

NDE150,ZRE151,ZZE150..RHD..5F..SOL

AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

 1
82141-1EW60

NDE150,ZRE151,ZZE150..RHD..5F..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

 1
82141-1EV00

NDE150,ZRE151,ZZE150..RHD..5F

 1
82141-1EW20

NDE150,ZRE151,ZZE150..RHD..5F..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
82141-1EW60

NDE150,ZRE151,ZZE150..RHD..5F..SOL

PART NUMBER LABEL=82141-1AF10 OR -1EW60

 1
82141-1EV40

NDE150,ZRE151,ZZE150..RHD..5F..SOL

PART NUMBER LABEL=82141-1AD50 OR -1EV40

 1
82141-1EV00

NDE150,ZRE151,ZZE150..RHD..5F

PART NUMBER LABEL=82141-1AD10 OR -1EV00

 1
82141-1EW20

NDE150,ZRE151,ZZE150..RHD..5F..SOL

PART NUMBER LABEL=82141-1AE70 OR -1EW20

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-12380

NDE150,ZRE151,ZZE150..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
82142-12370

NDE150,ZRE151,ZZE150..SOL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL)

 1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-12220

NDE150

VSC-WITH(W/CUT OFF SWITCH)

 1
82666A - HOLDER, CONNECTOR NO.2
82666-12350

NDE150,ZRE151,ZZE150

 1
82666B - HOLDER, CONNECTOR NO.3
82666-12360

NDE150,ZRE151,ZZE150

 2
82666B - HOLDER, CONNECTOR NO.3
82666-12360

NDE150,ZRE151,ZZE150

 2
82666C - HOLDER, CONNECTOR NO.4
82666-12390

NDE150,ZRE151,ZZE150..RHD

 1
82666N - HOLDER, CONNECTOR NO.10
82666-21040

NDE150,ZRE151,ZZE150

VSC-WITH(W/CUT OFF SWITCH)

 1
82666P - HOLDER, CONNECTOR NO.11
82666-35040

NDE150,ZRE151,ZZE150

VSC-WITH(W/CUT OFF SWITCH)

 1
82671 - BLOCK, JUNCTION
82671-12270

NDE150,ZRE151,ZZE150..RHD

 1
82671J - BLOCK, JUNCTION, NO.2
82671-12280

NDE150,ZRE151,ZZE150..RHD

 1
82673 - BRACKET, JUNCTION BLOCK
82673-12160

NDE150,ZRE151,ZZE150..RHD

 1
82673G - BRACKET, JUNCTION BLOCK
82673-12150

NDE150,ZRE151,ZZE150..RHD

 1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-12D20

NDE150,ZRE151,ZZE150..RHD

 1
Common parts
90119-06915
90159-60546
Linked diagrams
8401
8601

ILLUST NO. 6 OF 8(0610- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 2329226030 8271502290 8271502300 8271502390 8271502400 8271512420 8271512870 8271512890 8271512A01 8271512A10 8271512A20 8271512A30 8271512A40 8271512A90 8271512B00 8271512C00 8271512C10 8271512C30 8271512C60 8271512C80 8271512F20 8271512F30 8271512N70 8271512N80 8271512R10 8271520A10 8271520A20 8271520A30 8271520A40 8271520A70 8271520A80 8271532390 8271542560 827156A460 8272920150 9155180608 9155180608 9155180816 9167180610 9167180612 9167180612 9167180614 9167180614 9167180614 9167180616 9167180616 9167180616 9167180816 9167180816 9167180820 9167281018 9167281018 9167281018 9167281018 9167380612 9167380612 9167380612 9167380612 9167380612 9167380612 9167380612 9167380612 9167380616 9167380820 9167380820
Part # Description Qty Price
Common parts
23292-26030
82715-02290
82715-02300
82715-02390
82715-02400
82715-12420
82715-12870
82715-12890
82715-12A01
82715-12A10
82715-12A20
82715-12A30
82715-12A40
82715-12A90
82715-12B00
82715-12C00
82715-12C10
82715-12C30
82715-12C60
82715-12C80
82715-12F20
82715-12F30
82715-12N70
82715-12N80
82715-12R10
82715-20A10
82715-20A20
82715-20A30
82715-20A40
82715-20A70
82715-20A80
82715-32390
82715-42560
82715-6A460
82729-20150
91551-80608
91551-80816
91671-80610
91671-80612
91671-80614
91671-80616
91671-80816
91671-80820
91672-81018
91673-80612
91673-80616
91673-80820

ILLUST NO. 6 OF 8(0610- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 4702 5361412040 827111E350 8271135470 8271512840 8271512E20 8271512F40 8271512L40 8271512L90 8271512N20 8271512N30 8271512N40 9167180816 9167180816 9167180816 9167281018 9167380612
Part # Description Qty Price
Common parts
53614-12040
82711-1E350
82711-35470
82715-12840
82715-12E20
82715-12F40
82715-12L40
82715-12L90
82715-12N20
82715-12N30
82715-12N40
91671-80816
91672-81018
91673-80612
Linked diagrams
4702

ILLUST NO. 7 OF 8(0610- )

Click highlighted areas on diagram

CONNECTOR 1/2

diagram 8282452130 8282460460 8282460460 9008098298 9098010795 9098010860 9098011016 9098011019 9098011075 9098011148 9098011148 9098011148 9098011156 9098011162 9098011255 9098011659 9098011660 9098011967 90980WA052
Part # Description Qty Price
Common parts
82824-52130
82824-60460
90080-98298
90980-10795
90980-10860
90980-11016
90980-11019
90980-11075
90980-11148
90980-11156
90980-11162
90980-11255
90980-11659
90980-11660
90980-11967
90980-WA052

ILLUST NO. 6 OF 8(0610- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271116790 8271116790 8271512A50 8271512B70 8271512B80 8271512C70 8271512G00 8271512N00 8271512N40 8271512N90 8271512P00 8271512P10 8271512P20 8271512P30 8271512P50 8271512P60 8271512P70 8271512P80 8271512P90 8271512Q30 8271512Q41 8271512Q60 8271512Q70 8271528L90 8271542740 8271552S30 8271552U00 9011908C59 9167180612 9167180612 9167180612 9167180612 9167180614 9167180816 9167180816 9167180816 9167180816 9167180816 9167180816 9167180816 9167180816 9167180820 9167281018 9167281018 9167281018 9167380612 9167380612
Part # Description Qty Price
Common parts
82711-16790
82715-12A50
82715-12B70
82715-12B80
82715-12C70
82715-12G00
82715-12N00
82715-12N40
82715-12N90
82715-12P00
82715-12P10
82715-12P20
82715-12P30
82715-12P50
82715-12P60
82715-12P70
82715-12P80
82715-12P90
82715-12Q30
82715-12Q41
82715-12Q60
82715-12Q70
82715-28L90
82715-42740
82715-52S30
82715-52U00
90119-08C59
91671-80612
91671-80614
91671-80816
91671-80820
91672-81018
91673-80612

ILLUST NO. 5 OF 8(0610- )

Click highlighted areas on diagram

FLOOR & ROOF

diagram 8121 8121 8121 82161 82162 82163 82171 82345 82666D 82666E 82666F 82666G 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-12C80

NDE150,ZRE151,ZZE150..RHD

 1
82161-12C90

NDE150,ZRE151,ZZE150..RHD

SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)

 1
82161-12C80

NDE150,ZRE151,ZZE150..RHD

PART NUMBER LABEL=82161-12C80

 1
82161-12C90

NDE150,ZRE151,ZZE150..RHD

PART NUMBER LABEL=82161-12C90

 1
82162 - WIRE, FLOOR, NO.2
82162-12680

NDE150,ZRE151,ZZE150..RHD

 1
82162-12690

NDE150,ZRE151,ZZE150..RHD

SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)

 1
82162-12680

NDE150,ZRE151,ZZE150..RHD

PART NUMBER LABEL=82162-12680

 1
82162-12690

NDE150,ZRE151,ZZE150..RHD

PART NUMBER LABEL=82162-12690

 1
82171 - WIRE, ROOF, NO.1
82171-12C90

NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC)

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
82171-12C70

NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)

 1
82171-12C90

NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC)

PART NUMBER LABEL=82171-12C90

 1
82171-12C70

NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)

PART NUMBER LABEL=82171-12C70

 1
82345 - DIODE
82345-12050

NDE150,ZRE151,ZZE150

 1
82666D - HOLDER, CONNECTOR NO.5
82666-12400

NDE150,ZRE151,ZZE150

 1
82666E - HOLDER, CONNECTOR NO.6
82666-20280

NDE150,ZRE151,ZZE150

 1
82666F - HOLDER, CONNECTOR NO.7
82666-12370

NDE150,ZRE151,ZZE150

 1
82666G - HOLDER, CONNECTOR NO.8
82666-20280

NDE150,ZRE151,ZZE150

 1
Common parts
90119-06915
Linked diagrams
8121

ILLUST NO. 8 OF 8(0610- )

Click highlighted areas on diagram

CONNECTOR 2/2

diagram 9098010619 9098010996 9098010997 9098011070 9098011856 9098011909 9098012404 9098012460 9098012490 9098012495 9098012551 9098012552 9098012699 9098012717
Part # Description Qty Price
Common parts
90980-10619
90980-10996
90980-10997
90980-11070
90980-11856
90980-11909
90980-12404
90980-12460
90980-12490
90980-12495
90980-12551
90980-12552
90980-12699
90980-12717
