NDE150R-AHMNYW (2006)
Toyota Auris/Corolla (Jpp)

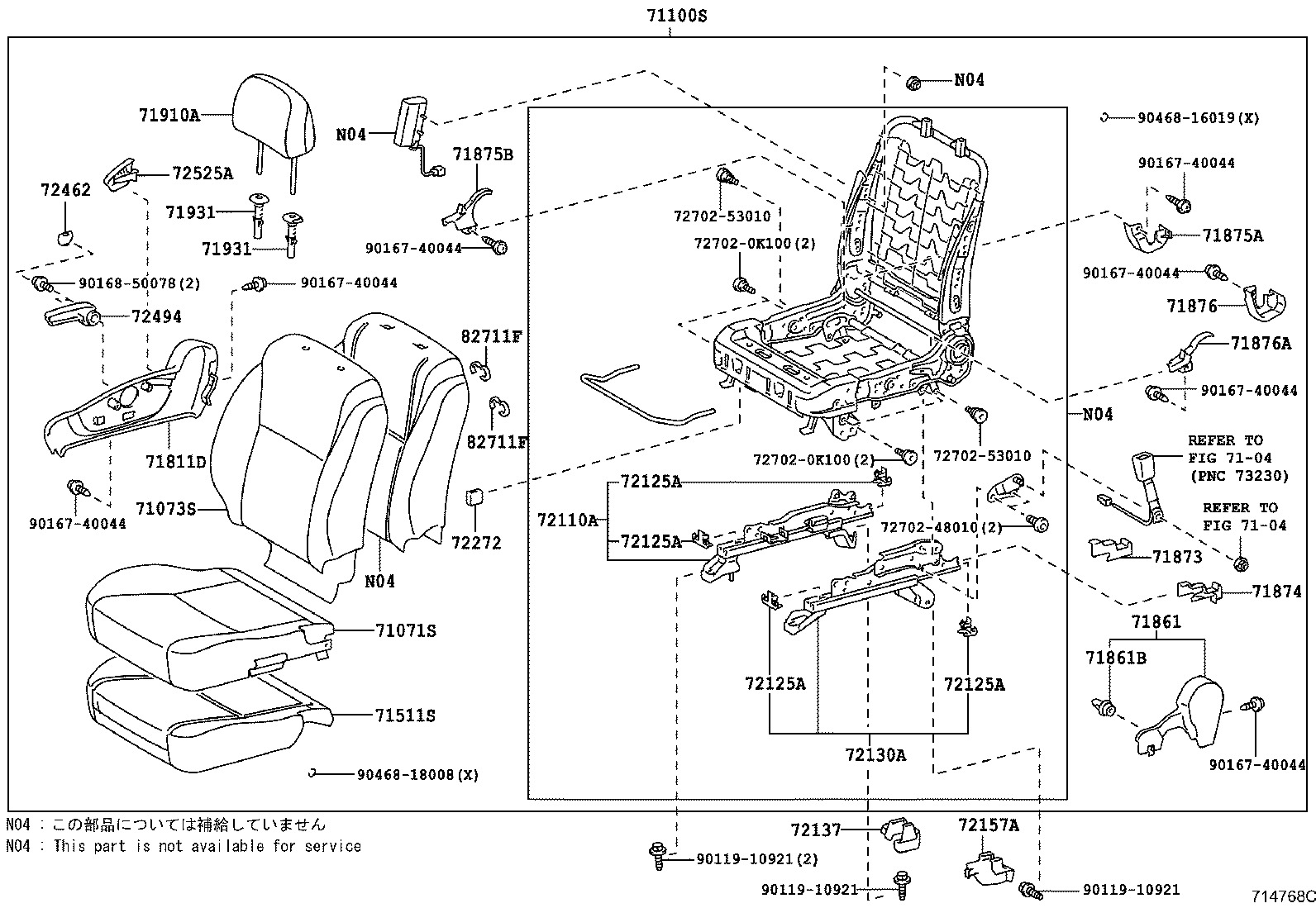

ILLUST NO. 1 OF 2(0610- )RHD
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-12C00E3 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 71071-12C00B5 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-12D80E2 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 71073-12D80B5 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-12K60B6 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71100-12K60E6 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) EXCLUSIVE PACKAGE,GREGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12B00 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42090E1 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM42 |
1 | ||
| 71811-42090B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12280E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
1 | ||
| 71861-12280B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-33020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52170B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
2 | ||
| 71875-52170E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
2 | ||
| 71875-60160E2 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52160B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
2 | ||
| 71876-52160E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160E1 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
2 | ||
| 71876-60160B3 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12B30B3 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30E2 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ADE150,NDE150,ZRE151,ZZE150..SOL W(LOCK),DK.GRAY,TRIM17 |
2 | ||
| 71931-47010E4 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL W/O(LOCK),GREGE,TRIM42 |
2 | ||
| 71931-47010B2 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
ADE150,NDE150,ZRE151,ZZE150..SOL W(LOCK),GREGE,TRIM42 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ADE150,NDE150,ZRE151,ZZE150..SOL W(LOCK),DK.GRAY,TRIM17 |
2 | ||
| 71931-47010E4 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL W/O(LOCK),GREGE,TRIM42 |
2 | ||
| 71931-47010B2 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
ADE150,NDE150,ZRE151,ZZE150..SOL W(LOCK),GREGE,TRIM42 |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-12170 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 |
8 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12760 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-12150B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12120B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 72462-42010E1 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM42 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 72494-42010E1 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM42 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020E1 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM42 |
1 | ||
| 72525-42020B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
NDE150,ZRE151,ZZE150 |
4 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
NDE150,ZRE151,ZZE150 |
4 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-48010 | ||||
| 72702-53010 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
| Linked diagrams | ||||
| 7104 | ||||

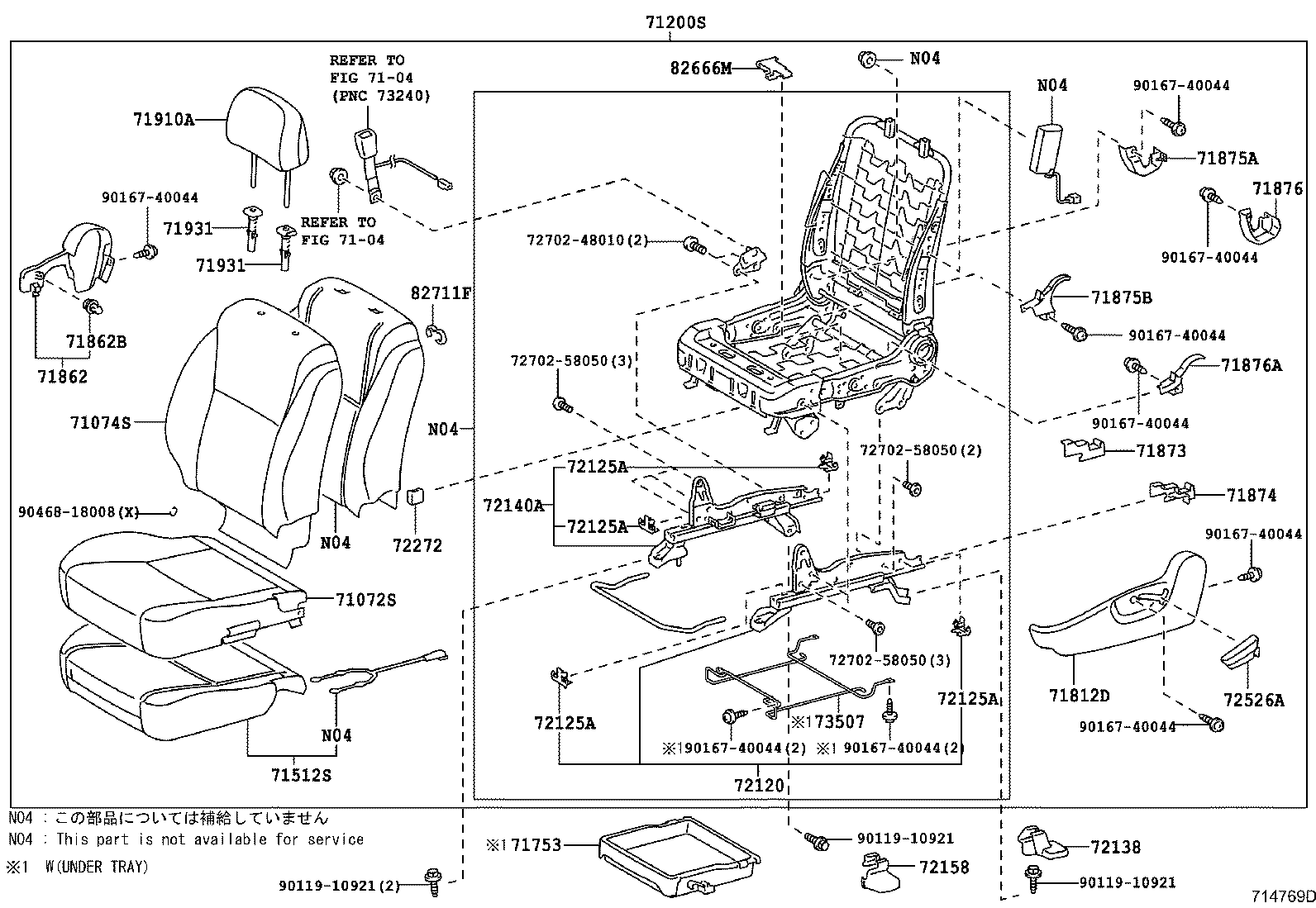

ILLUST NO. 2 OF 2(0610- )RHD
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-12D20E3 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 71072-12D20B5 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-12C10E2 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 71074-12C10B5 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-12J90E7 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) EXCLUSIVE PACKAGE,GREGE,TRIM4# |
1 | ||
| 71200-12J90B7 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-12070 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-12020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71812-42090E1 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM42 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12260E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
1 | ||
| 71862-12260B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-33020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52170B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
2 | ||
| 71875-52170E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
2 | ||
| 71875-60160E2 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52160B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
2 | ||
| 71876-52160E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160E1 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
2 | ||
| 71876-60160B3 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12B30B3 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS DARK GRAY,TRIM1# |
2 | ||
| 71910-12B30E2 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ADE150,NDE150,ZRE151,ZZE150..SOL W(LOCK),DK.GRAY,TRIM17 |
2 | ||
| 71931-47010E4 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL W/O(LOCK),GREGE,TRIM42 |
2 | ||
| 71931-47010B2 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
ADE150,NDE150,ZRE151,ZZE150..SOL W(LOCK),GREGE,TRIM42 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ADE150,NDE150,ZRE151,ZZE150..SOL W(LOCK),DK.GRAY,TRIM17 |
2 | ||
| 71931-47010E4 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL W/O(LOCK),GREGE,TRIM42 |
2 | ||
| 71931-47010B2 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010E3 |
ADE150,NDE150,ZRE151,ZZE150..SOL W(LOCK),GREGE,TRIM42 |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-12140 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 |
8 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-12120B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12630 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12110B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-12020 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 72526-42010E1 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM42 |
1 | ||
| 73507 - RAIL SUB-ASSY, FRONT SEAT | ||||
| 73507-12010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-12420 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 82711-12120 |
NDE150,ZRE151,ZZE150 |
4 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90468-18008 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
