NDE150R-AHMNYW (2006)
Toyota Auris/Corolla (Jpp)
Production
Oct 2006
-
Dec 2008
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )RHD

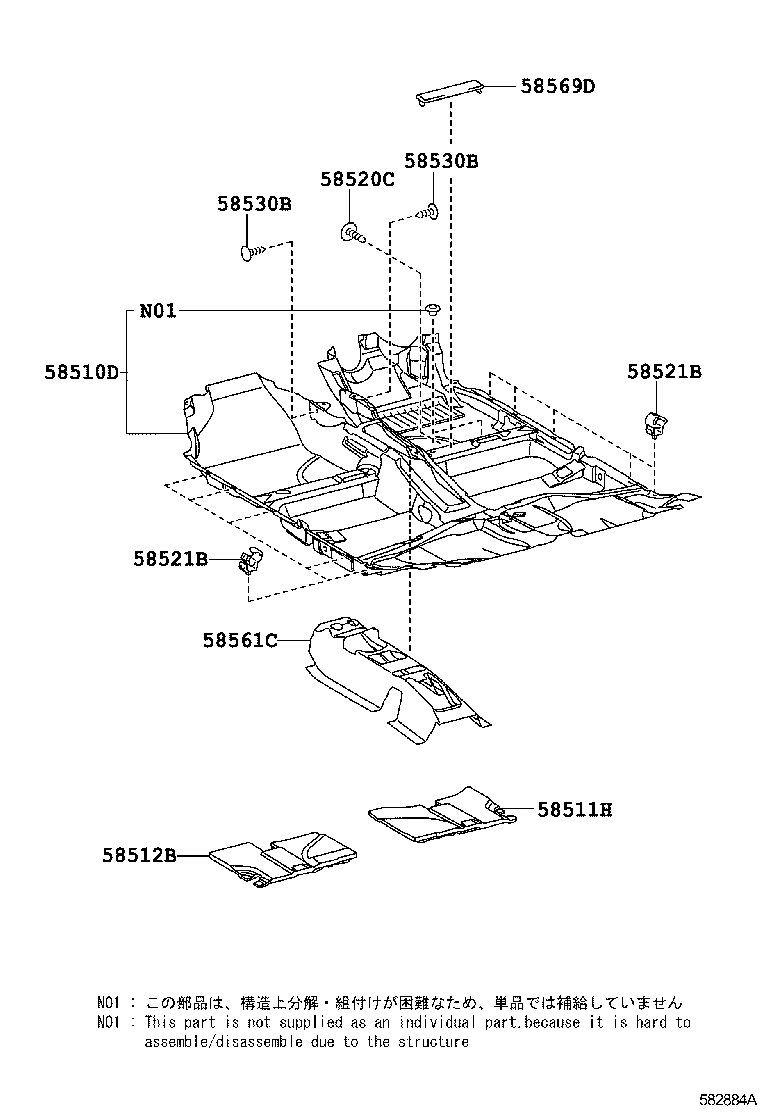

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-12B90E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 58510-12B90B1 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 58511H - MAT, FLOOR, FRONT RH | ||||
| 58512-12190 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 58512B - MAT, FLOOR, FRONT LH | ||||
| 58511-12610 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049B7 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS DK.GRAY |
1 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-12140 |
NDE150,ZRE151,ZZE150 |
10 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-12140 |
NDE150,ZRE151,ZZE150 |
10 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164B2 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS DK.GRAY |
2 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-05164B2 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS DK.GRAY |
2 | ||
| 58561C - SILENCER, FRONT FLOOR, NO.1 | ||||
| 58561-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-12010B0 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS DK.GRAY |
1 | ||
