NDE150R-AHMNYW (2006)
Toyota Auris/Corolla (Jpp)

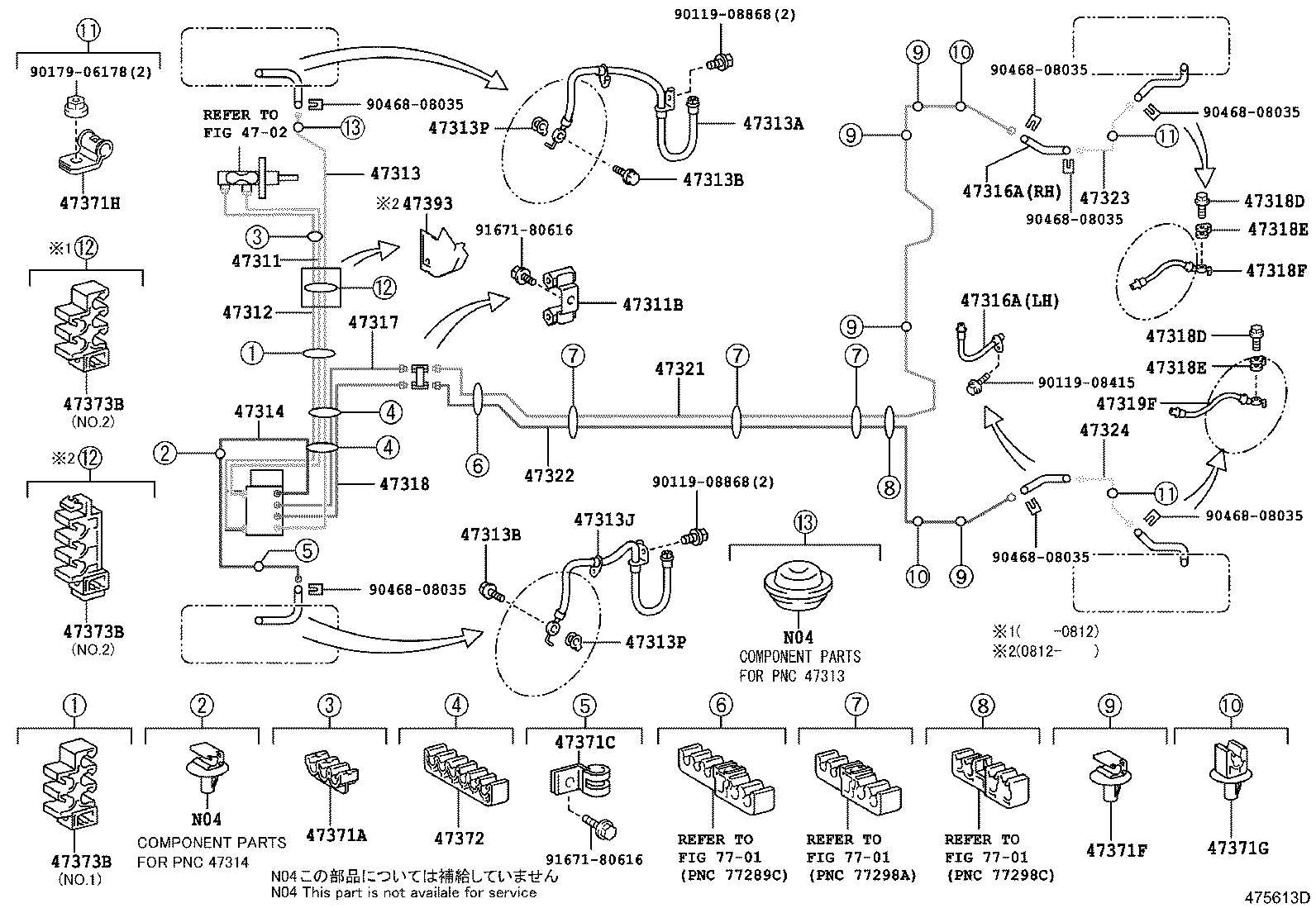

ILLUST NO. 1 OF 2(0610- )ADE150,NDE150..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12A10 |
NDE150..RHD |
1 | ||
| 47311-12A20 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12540 |
NDE150..RHD |
1 | ||
| 47312-12550 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12710 |
NDE150..RHD |
1 | ||
| 47313-12720 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E33 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E34 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12590 |
NDE150..RHD |
1 | ||
| 47314-12600 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E31 |
NDE150,ZRE151,ZZE150 LH |
1 | ||
| 90947-02E32 |
NDE150,ZRE151,ZZE150 RH |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E31 |
NDE150,ZRE151,ZZE150 LH |
1 | ||
| 90947-02E32 |
NDE150,ZRE151,ZZE150 RH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12360 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47317-12350 |
NDE150..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12500 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47318-12490 |
NDE150..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E30 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E30 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12290 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12450 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12230 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12190 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00899 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 90464-00868 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10781 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D17 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
4 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01D29 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
2 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90461-10837 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
NDE150..RHD |
2 | ||
| 90464-00892 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D43 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH),NO.1 & NO.2 |
2 | ||
| 90949-01D45 |
NDE150..RHD NO.1 & NO.2 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D43 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH),NO.1 & NO.2 |
2 | ||
| 90949-01D45 |
NDE150..RHD NO.1 & NO.2 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D43 |
NDE150..RHD VSC-WITH(W/CUT OFF SWITCH),NO.1 & NO.2 |
2 | ||
| 90949-01D45 |
NDE150..RHD NO.1 & NO.2 |
2 | ||
| Common parts | ||||
| 90119-08415 | ||||
| 90119-08868 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

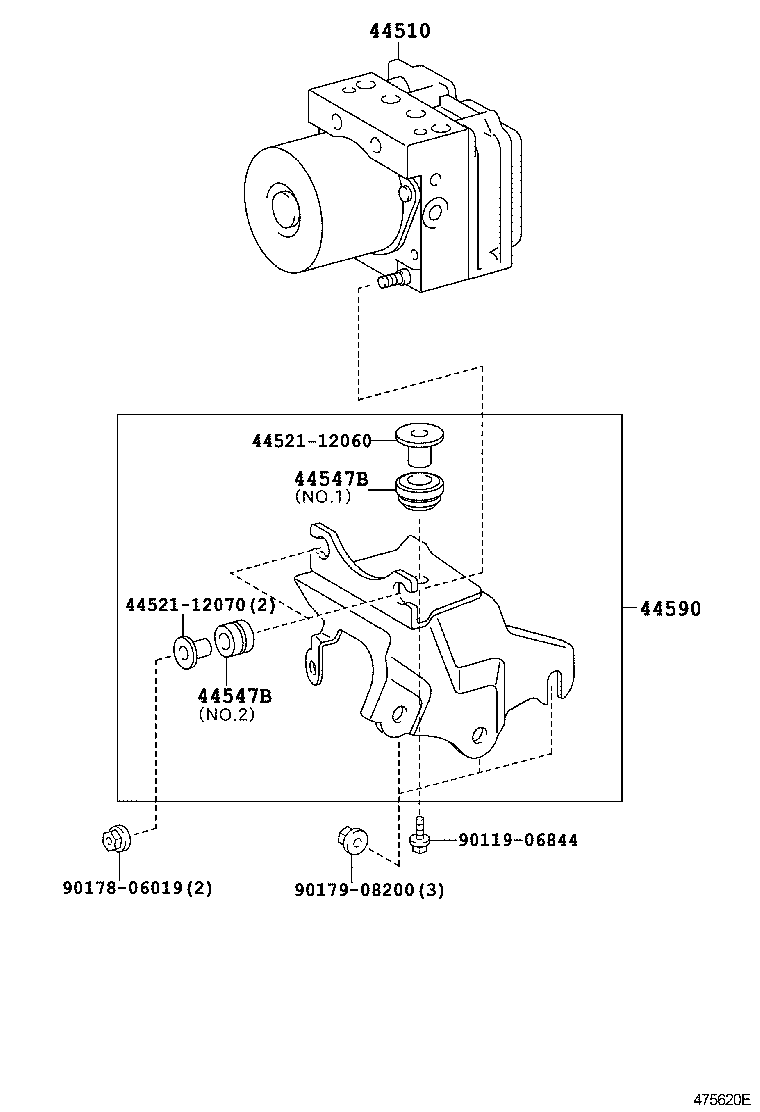

ILLUST NO. 2 OF 2(0610- )ADE150,NDE150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12290 |
ADE150,NDE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 44050-12280 |
ADE150,NDE150 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-12030 |
NDE150 NO.2 |
2 | ||
| 44547-12010 |
NDE150 NO.1 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-12030 |
NDE150 NO.2 |
2 | ||
| 44547-12010 |
NDE150 NO.1 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-12120 |
ADE150;NDE150..5F,5FS |
1 | ||
| 44590-12130 |
ADE150;NDE150..5F,5FS VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| Common parts | ||||
| 44521-12060 | ||||
| 44521-12070 | ||||
| 90119-06844 | ||||
| 90178-06019 | ||||
| 90179-08200 | ||||

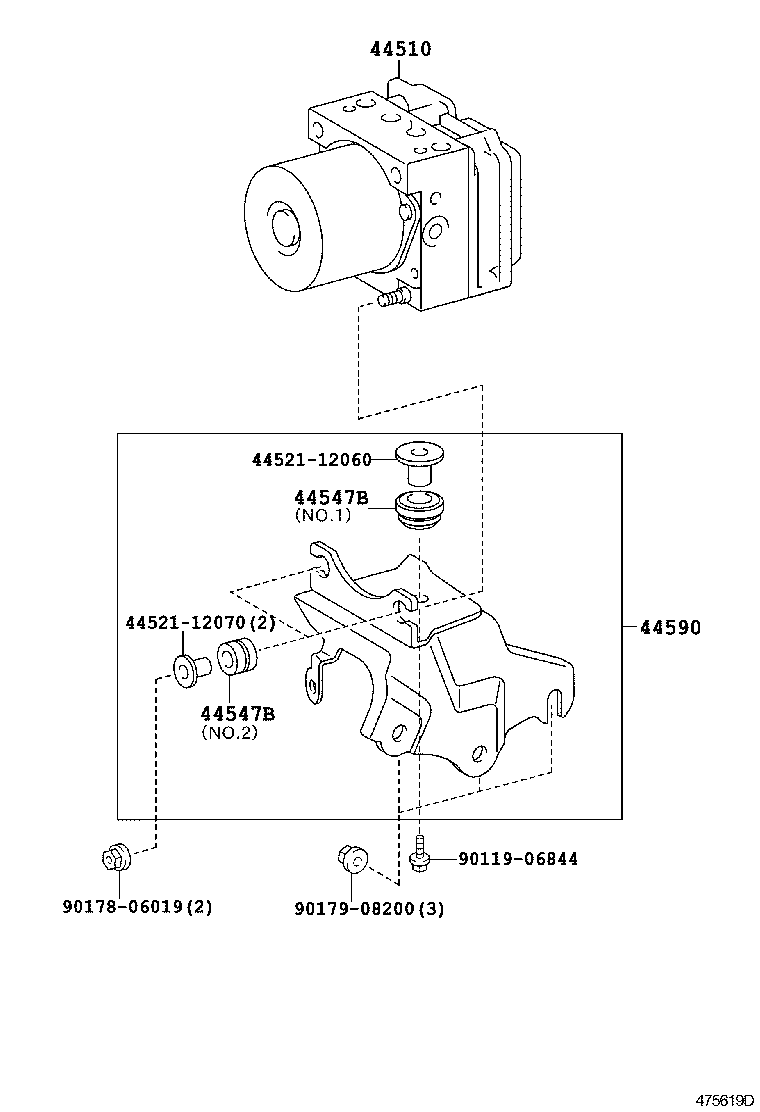

ILLUST NO. 2 OF 2(0610- )ADE150,NDE150
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12290 |
ADE150,NDE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 44050-12280 |
ADE150,NDE150 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-12030 |
NDE150 NO.2 |
2 | ||
| 44547-12010 |
NDE150 NO.1 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-12030 |
NDE150 NO.2 |
2 | ||
| 44547-12010 |
NDE150 NO.1 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-12120 |
ADE150;NDE150..5F,5FS |
1 | ||
| 44590-12130 |
ADE150;NDE150..5F,5FS VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| Common parts | ||||
| 44521-12060 | ||||
| 44521-12070 | ||||
| 90119-06844 | ||||
| 90178-06019 | ||||
| 90179-08200 | ||||
