NDE150R-AHMNYW (2006)
Toyota Auris/Corolla (Jpp)
Production
Oct 2006
-
Dec 2008
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )ADE150,NDE150

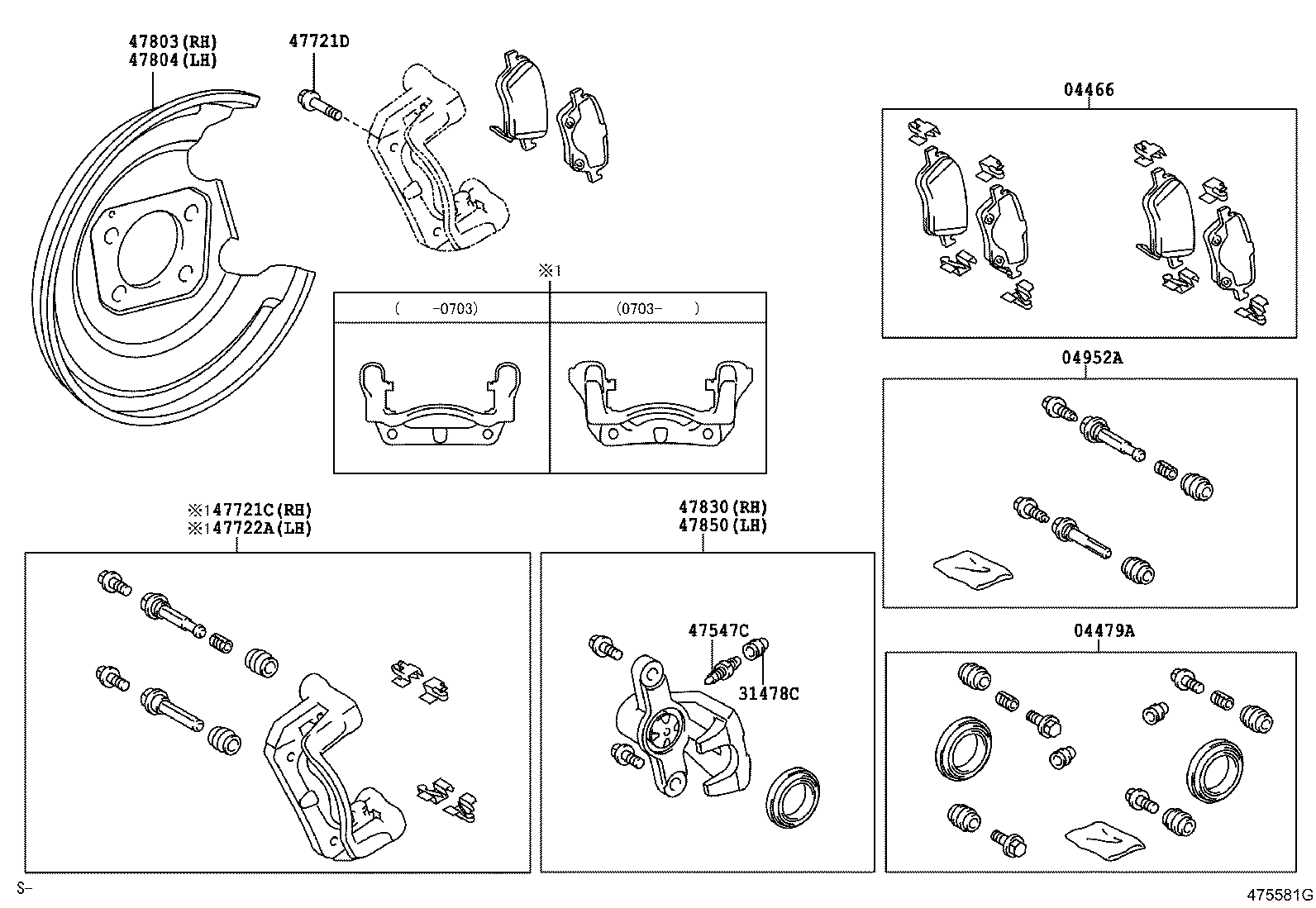

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02180 |
NDE150 MARK GALFER G3409 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-02310 |
NDE150 |
1 | ||
| 04952A - PIN KIT, REAR DISC BRAKE CYLINDER SLIDE | ||||
| 04952-02220 |
NDE150 |
2 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 90069-39001 |
ADE150;NDE150..5F,5FS |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 90069-39000 |
ADE150;NDE150..5F,5FS |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-09010 |
ADE150,NDE150 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-10404 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS *10-1.25PX24-21.5 |
4 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-09010 |
ADE150,NDE150 |
1 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47881-12070 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47882-12070 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-02100 |
NDE150 |
1 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-02100 |
NDE150 |
1 | ||
