NDE150R-AHMNYW (2006)
Toyota Auris/Corolla (Jpp)
Production
Oct 2006
-
Dec 2008
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610-0812)NDE150..RHD

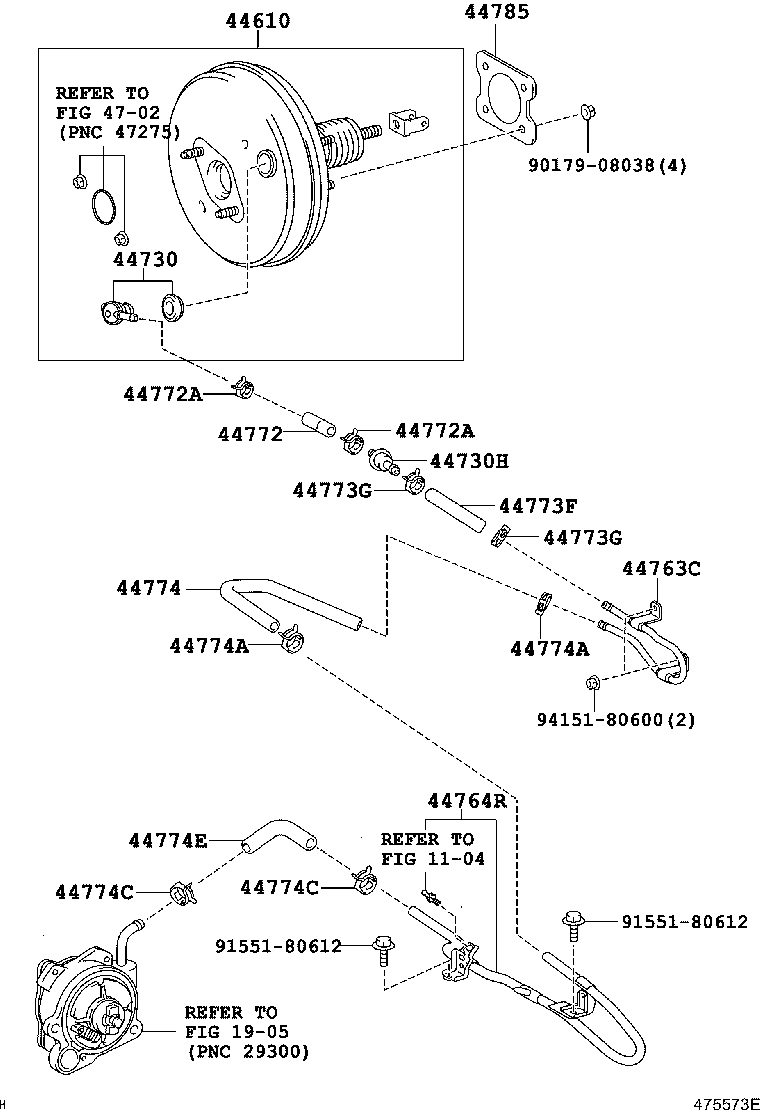

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-19035 |
ADE150..RHD;NDE150..RHD..(5F,5FS) VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 44610-19045 |
ADE150..RHD;NDE150..RHD..(5F,5FS) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-09020 |
ADE150;NDE150..5F,5FS |
1 | ||
| 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) | ||||
| 44730-35010 |
NDE150..RHD |
1 | ||
| 44763C - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-12450 |
NDE150..RHD |
1 | ||
| 44764R - TUBE, CONNECTOR TO VACUUM RESERVOIR | ||||
| 44764-12010 |
NDE150 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-12610 |
NDE150..RHD |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12780 |
NDE150..RHD |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NDE150..RHD |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NDE150..RHD |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12570 |
NDE150..RHD |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ADE150..LHD;NDE150,ZRE151,ZZE150..5F,5FS |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ADE150..LHD;NDE150,ZRE151,ZZE150..5F,5FS |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NDE150,ZZE150 |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NDE150,ZZE150 |
2 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-52021 |
NDE150 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91551-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1905 | ||||
| 4702 | ||||
