NDE150R-AHMNYW (2006)
Toyota Auris/Corolla (Jpp)
Production
Oct 2006
-
Dec 2008
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )ADE150,NDE150

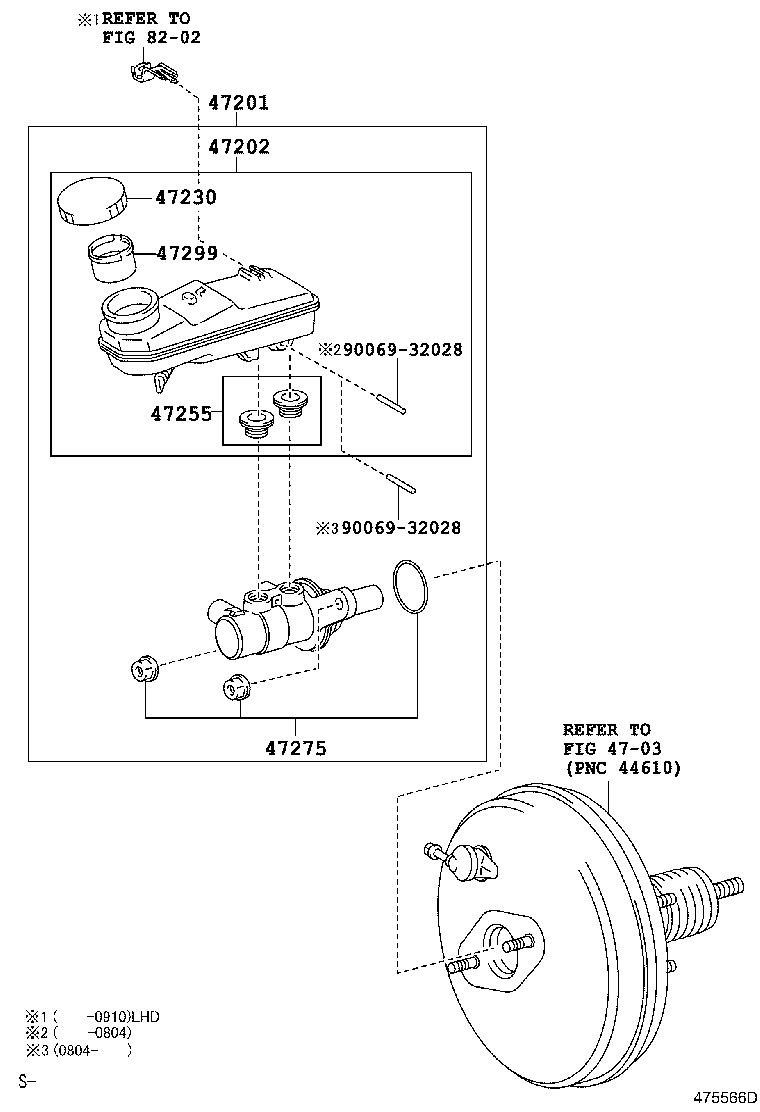

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-19035 |
ADE150,NDE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 47201-19045 |
ADE150,NDE150..RHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-09100 |
ADE150..RHD;NDE150..RHD..(5F,5FS) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-0D010 |
NDE150 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-09040 |
NDE150 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-09010 |
ADE150;NDE150..5F,5FS |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-02160 |
NDE150 |
1 | ||
| Common parts | ||||
| 90069-32028 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 8202 | ||||
