NDE150R-AHMNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0812)NDE150,ZRE151,ZZE150

Click highlighted areas on diagram

C50,C50A,C53,C53A

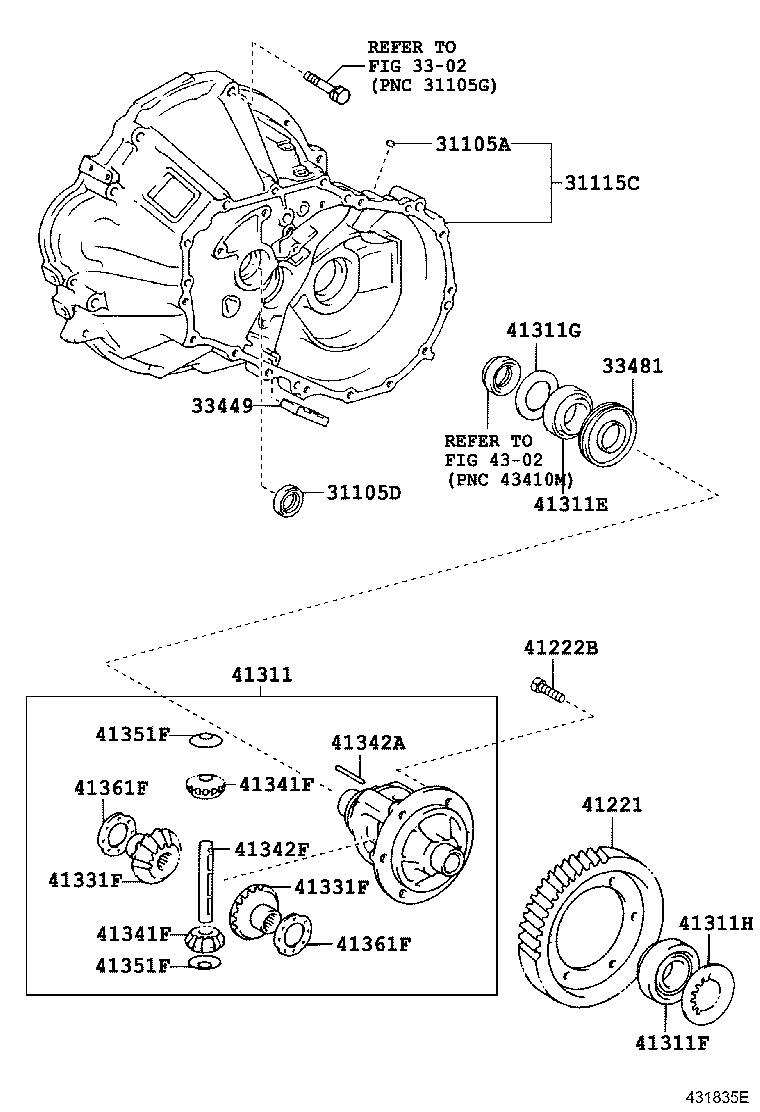

diagram 31105A 31105D 31115C 3302 33449 33481 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

NDE150,ZRE151,ZZE150

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25028

NDE150,ZRE151,ZZE150

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31105-12220

NDE150,ZRE151

 1
33449 - MAGNET, TRANSMISSION
33449-12020

NDE150,ZRE151,ZZE150

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-20160

NDE150

N=35

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-17040

NDE150

 1
41221-12470

NDE150

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040

NDE150,ZRE151,ZZE150

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-32061

NDE150

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40097

NDE150

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40094

NDE150

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

NDE150,ZRE151,ZZE150

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41016

NDE150,ZRE151,ZZE150

T=2.20,MARK CC

 1
90564-41019

NDE150,ZRE151,ZZE150

T=2.35,MARK FF

 1
90564-41020

NDE150,ZRE151,ZZE150

T=2.40,MARK GG

 1
90564-41026

NDE150,ZRE151,ZZE150

T=2.70,MARK NN

 1
90564-41014

NDE150,ZRE151,ZZE150

T=2.10,MARK AA

 1
90564-41017

NDE150,ZRE151,ZZE150

T=2.25,MARK DD

 1
90564-41025

NDE150,ZRE151,ZZE150

T=2.65,MARK MM

 1
90564-41015

NDE150,ZRE151,ZZE150

T=2.15,MARK BB

 1
90564-41022

NDE150,ZRE151,ZZE150

T=2.50,MARK JJ

 1
90564-41018

NDE150,ZRE151,ZZE150

T=2.30,MARK EE

 1
90564-41021

NDE150,ZRE151,ZZE150

T=2.45,MARK HH

 1
90564-41028

NDE150,ZRE151,ZZE150

T=2.80,MARK QQ

 1
90564-41023

NDE150,ZRE151,ZZE150

T=2.55,MARK KK

 1
90564-41031

NDE150,ZRE151,ZZE150

T=2.95,MARK TT

 1
90564-41029

NDE150,ZRE151,ZZE150

T=2.85,MARK RR

 1
90564-41030

NDE150,ZRE151,ZZE150

T=2.90,MARK SS

 1
90564-41032

NDE150,ZRE151,ZZE150

T=3.00,MARK UU

 1
90564-41024

NDE150,ZRE151,ZZE150

T=2.60,MARK LL

 1
90564-41027

NDE150,ZRE151,ZZE150

T=2.75,MARK PP

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

NDE150

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

NDE150

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

NDE150

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

NDE150

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NDE150,ZRE151,ZZE150

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

NDE150

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NDE150

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NDE150

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

NDE150,ZRE151,ZZE150

T=1.05,MARK 15

 2
41361-22040

NDE150,ZRE151,ZZE150

T=1.20,MARK 04

 2
41361-22020

NDE150,ZRE151,ZZE150

T=1.00,MARK 02

 2
41361-22030

NDE150,ZRE151,ZZE150

T=1.10,MARK 03

 2
41361-22140

NDE150,ZRE151,ZZE150

T=0.95,MARK 14

 2
41361-22160

NDE150,ZRE151,ZZE150

T=1.15,MARK 16

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

NDE150,ZRE151,ZZE150

T=1.05,MARK 15

 2
41361-22040

NDE150,ZRE151,ZZE150

T=1.20,MARK 04

 2
41361-22020

NDE150,ZRE151,ZZE150

T=1.00,MARK 02

 2
41361-22030

NDE150,ZRE151,ZZE150

T=1.10,MARK 03

 2
41361-22140

NDE150,ZRE151,ZZE150

T=0.95,MARK 14

 2
41361-22160

NDE150,ZRE151,ZZE150

T=1.15,MARK 16

 2
Linked diagrams
3302
4302
