NDE150R-AHMNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0812)5F

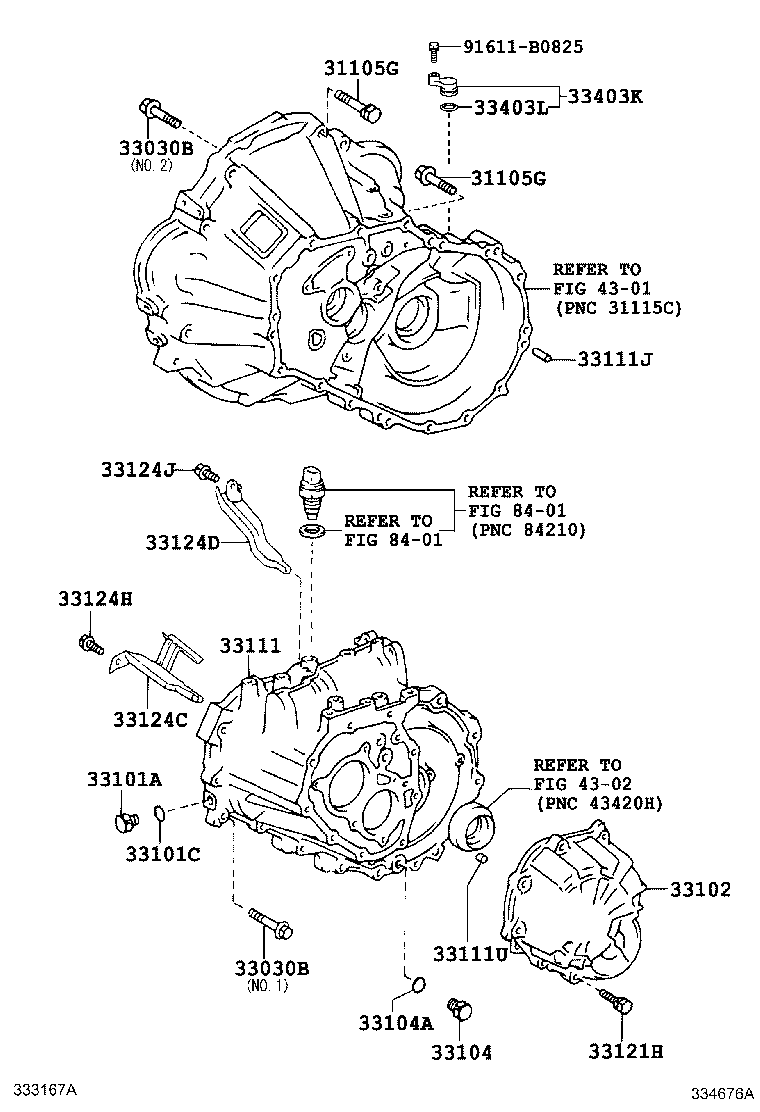

Click highlighted areas on diagram

C50,C53

diagram 31105G 31105G 33030B 33030B 33101A 33101C 33102 33104 33104A 33111 33111J 33111U 33121H 33124C 33124D 33124H 33124J 33403K 33403L 4301 4302 8401 8401 91611B0825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61045

NDE150,ZRE151

*10-1.25PX45-30

 7
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61045

NDE150,ZRE151

*10-1.25PX45-30

 7
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08353

NDE150,ZRE151,ZZE150

*8-1.25PX50-30,NO.1

 13
90105-08430

NDE150,ZRE151,ZZE150

*8-1.25PX45-27.5,NO.2

 3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08353

NDE150,ZRE151,ZZE150

*8-1.25PX50-30,NO.1

 13
90105-08430

NDE150,ZRE151,ZZE150

*8-1.25PX45-27.5,NO.2

 3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NDE150,ZRE151,ZZE150

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

NDE150,ZRE151,ZZE150

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021

NDE150,ZRE151,ZZE150

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18033

NDE150,ZRE151,ZZE150

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

NDE150,ZRE151,ZZE150

 1
33111 - CASE, MANUAL TRANSMISSION
33111-52120

NDE150,ZRE151,ZZE150..5F

 1
33111-12260

NDE150,ZRE151,ZZE150..5F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NDE150,ZRE151,ZZE150

L=23,OD=8

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

NDE150,ZRE151,ZZE150

L=11,OD=11

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08429

NDE150,ZRE151,ZZE150

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

NDE150,ZRE151,ZZE150

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021

NDE150,ZRE151,ZZE150

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820

NDE150,ZRE151,ZZE150

 1
33124J - BOLT, W/WASHER
91611-G0820

NDE150,ZRE151,ZZE150

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NDE150,ZRE151,ZZE150

 1
33403L - RING, O
96711-24030

NDE150,ZRE151,ZZE150

 1
Common parts
91611-B0825
Linked diagrams
4301
4302
8401
