NDE150R-AHMNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

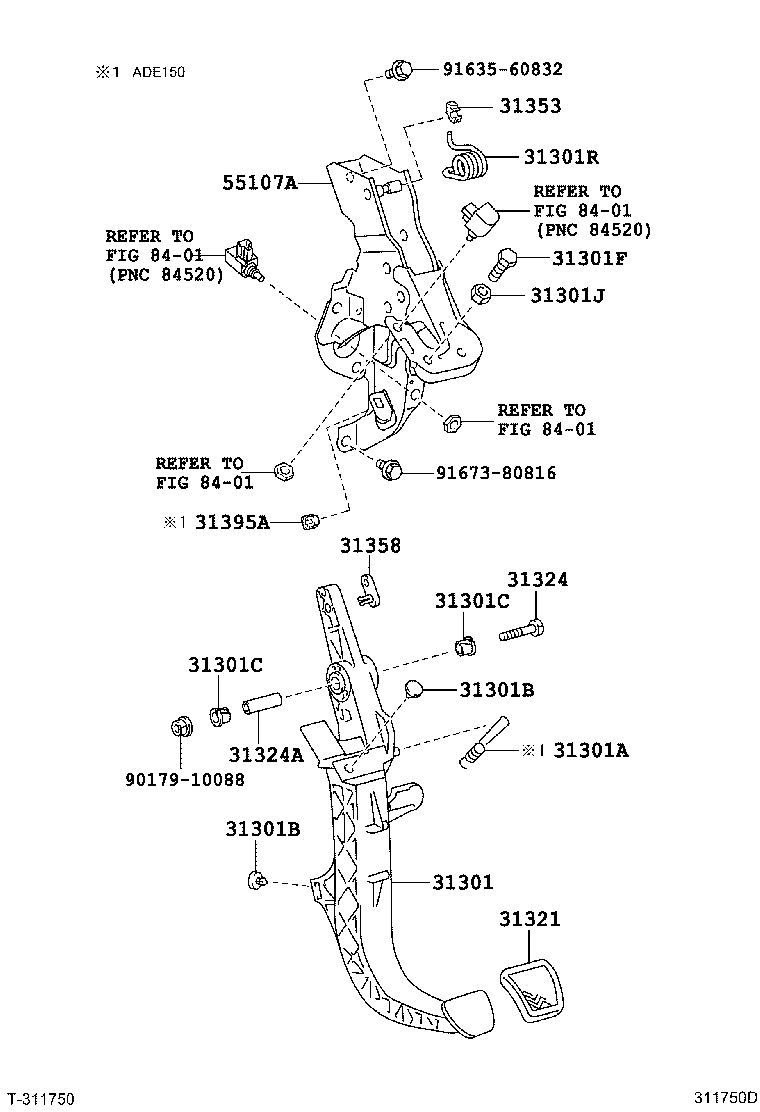

ILLUST NO. 1 OF 2(0610- )ADE150,NDE150,ZRE152..RHD..5F,6F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31301R 31321 31324 31324A 31353 31358 31395A 55107A 8401 8401 8401 8401 9017910088 9163560832 9167380816
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31311-12370

NDE150,ZRE151,ZZE150..RHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NDE150,ZRE151,ZZE150..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NDE150,ZRE151,ZZE150..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NDE150,ZRE151,ZZE150..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NDE150,ZRE151,ZZE150..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

NDE150,ZRE151,ZZE150..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-61000

ADE150,ZZE150;NDE150,ZRE151..5F

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
31394-12060

NDE150..RHD..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-42010

NDE150,ZRE151,ZZE150..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

NDE150,ZRE151,ZZE150..RHD..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

NDE150,ZRE151,ZZE150..RHD..5F

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010

NDE150..5F

 1
31358 - CAP, OVER CENTER SPRING
31358-42010

NDE150..RHD..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12290

NDE150..RHD..5F

 1
Common parts
90179-10088
91635-60832
91673-80816
Linked diagrams
8401

ILLUST NO. 2 OF 2(0610-0812)NDE150..5F

Click highlighted areas on diagram

diagram 3103 3103 3105 31418 31481 31481 31481M 31481M 31481M 31482D 31483B 31484 31484C 31490 9017906219 9046106227 9046110753 9046110836 9046808040 9046808040 9155180820 9155281014 9167180616 9167180814 9167180816
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02E28

NDE150,ZRE151,ZZE150..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12370

NDE150,ZRE151,ZZE150..RHD..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12370

NDE150,ZRE151,ZZE150..RHD..5F

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

NDE150,ZRE151,ZZE150..RHD..5F

 2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

NDE150,ZRE151,ZZE150..RHD..5F

 2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

NDE150,ZRE151,ZZE150..RHD..5F

 2
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-12311

NDE150..5F

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-12080

NDE150..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12500

NDE150,ZRE151,ZZE150..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-12531

NDE150..5F

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-12100

NDE150..5F

 1
Common parts
90179-06219
90461-06227
90461-10753
90461-10836
90468-08040
91551-80820
91552-81014
91671-80616
91671-80814
91671-80816
Linked diagrams
3103
3105
