NDE150R-AHMNYW (2006)
Toyota Auris/Corolla (Jpp)
Production
Oct 2006
-
Dec 2008
Engine
1NDTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610-0812)1NDTV

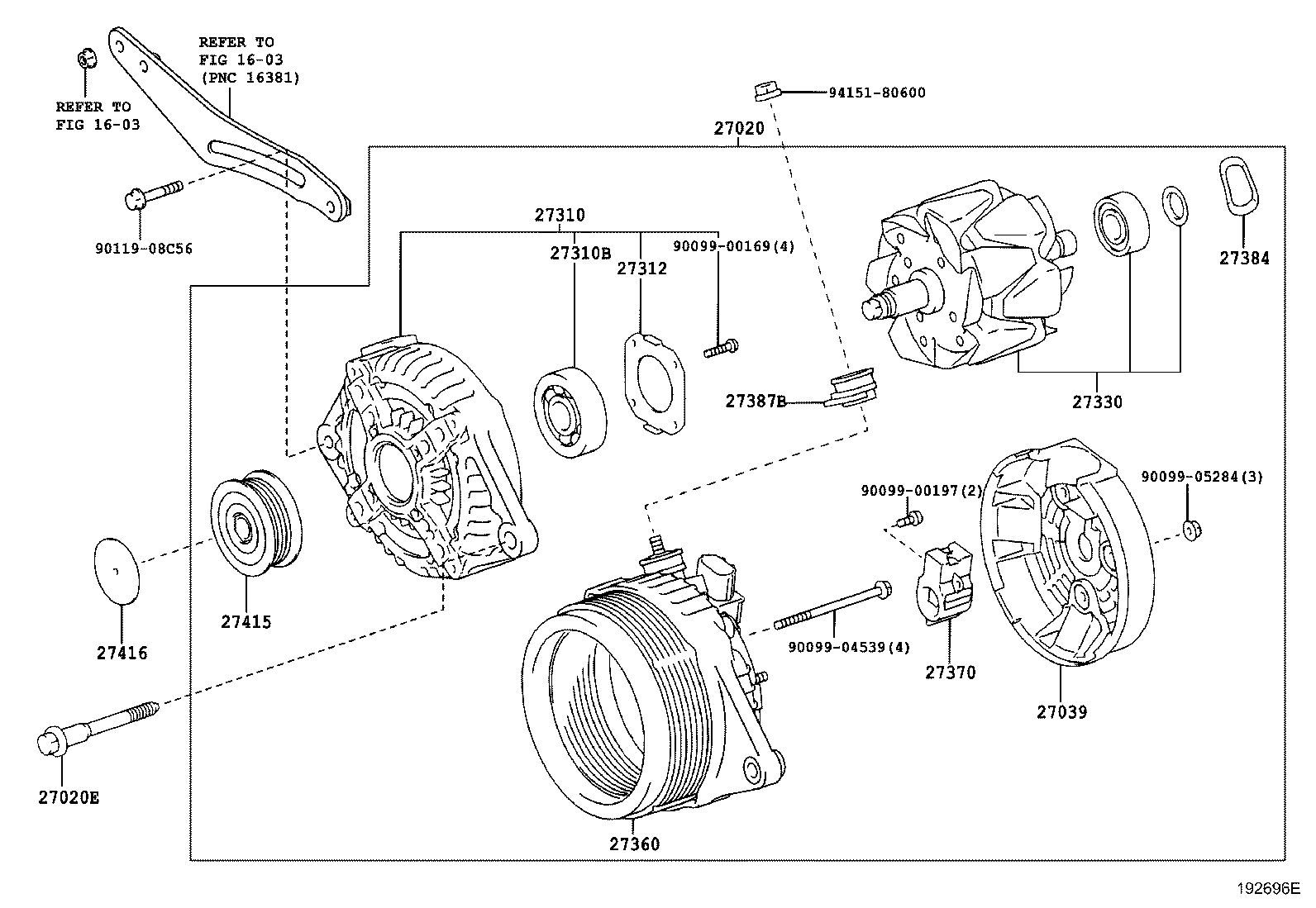

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-33071 |
1NDTV..NDE150 12V 100A |
1 | ||
| 27060-33072 |
1NDTV..NDE150 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10520 |
1NDTV..NDE150 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-27060 |
1NDTV..NDE150 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-33110 |
1NDTV..NDE150 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10231 |
1NDTV..NDE150 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1NDTV,1ZRFE..NDE150,ZRE151 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
1NDTV,1ZRFE..NDE150,ZRE151 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-33110 |
1NDTV..NDE150 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
1NDTV,1ZRFE..NDE150,ZRE151 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1NDTV,1ZRFE..NDE150,ZRE151 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
1NDTV,1ZRFE..NDE150,ZRE151 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-33050 |
1NDTV..NDE150 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-27010 |
1NDTV..NDE150 |
1 | ||
| Common parts | ||||
| 90099-00169 | ||||
| 90099-00197 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 90119-08C56 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
