NDE150R-AHMNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0812)1NDTV

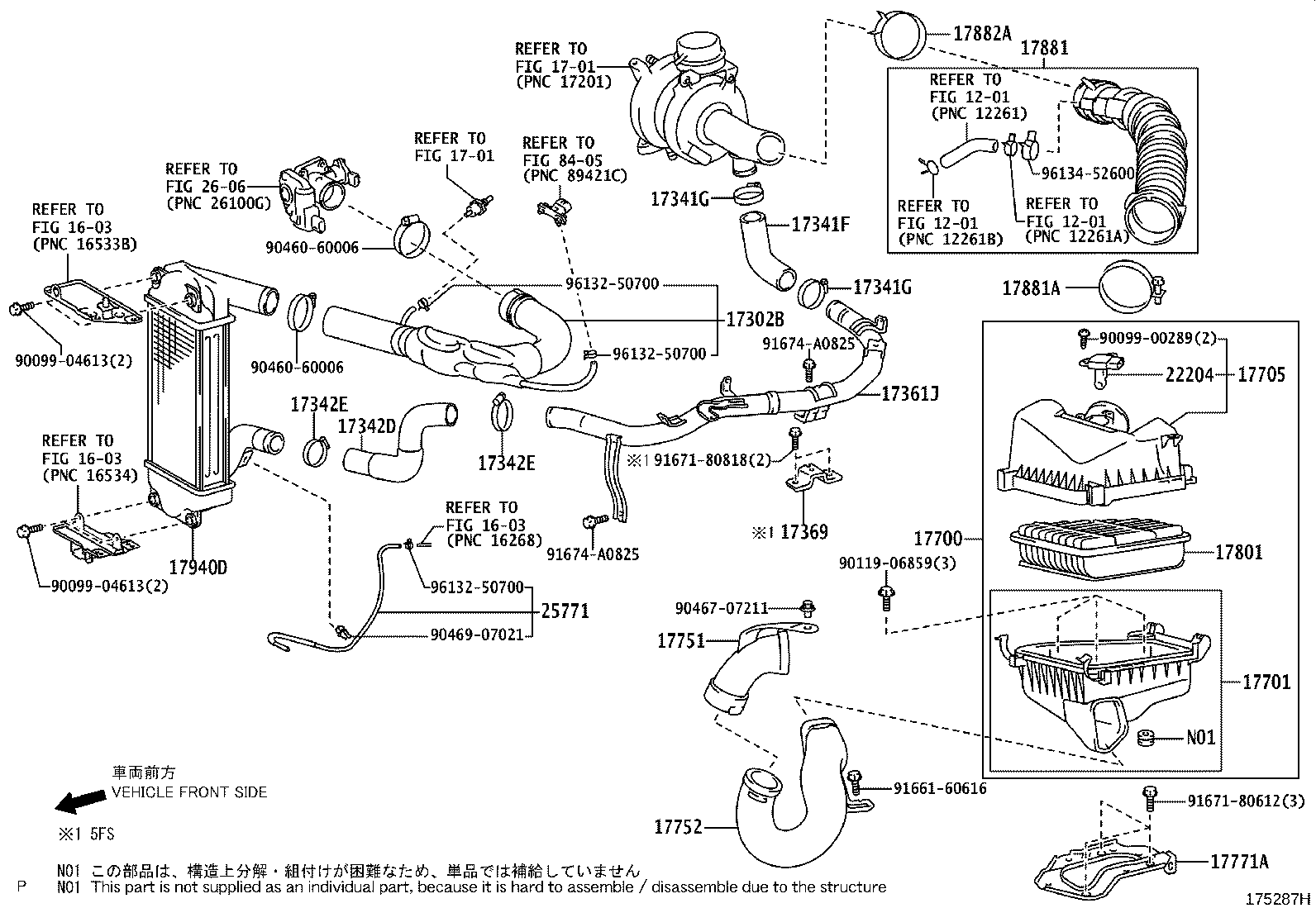

Click highlighted areas on diagram

diagram 1201 1201 1201 1603 1603 1603 1701 1701 17302B 17341F 17341G 17341G 17342D 17342E 17342E 17361J 17369 17700 17701 17705 17751 17752 17771A 17801 17881 17881A 17882A 17940D 22204 25771 2606 8405 9009900289 9009904613 9009904613 9011906859 9046060006 9046060006 9046707211 9046907021 9166160616 9167180612 9167180818 91674A0825 91674A0825 9613250700 9613250700 9613250700 9613452600
Part # Description Qty Price
17302B - HOSE SUB-ASSY, AIR
17302-33010

1NDTV..NDE150

 1
17341F - HOSE, AIR, NO.1
17341-33040

1NDTV..NDE150

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-50005

1NDTV..NDE150

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-50005

1NDTV..NDE150

 2
17342D - HOSE, AIR, NO.2
17342-33040

1NDTV..NDE150

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-50005

1NDTV..NDE150

 2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-50005

1NDTV..NDE150

 2
17361J - TUBE, AIR, NO.1
17361-33030

1NDTV..NDE150

 1
17700 - CLEANER ASSY, AIR
17700-33200

1NDTV..NDE150

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-26330

1NDTV..NDE150

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-33070

1NDTV..NDE150

 1
17751 - INLET, AIR CLEANER, NO.1
17751-26040

1NDTV..NDE150

 1
17752 - INLET, AIR CLEANER, NO.2
17752-26030

1NDTV..NDE150

 1
17771A - BRACKET, AIR CLEANER
17771-26010

1NDTV..NDE150

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-26020

1NDTV..NDE150

(J)

 1
17801-0R030

1NDTV..NDE150

(L)

 1
17801-26020

1NDTV..NDE150

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-33030

1NDTV..NDE150

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1NDTV..NDE150

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-54002

1NDTV..NDE150

 1
17940D - INTERCOOLER ASSY
17900-0N020

1NDTV..NDE150

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-33010

1NDTV..NDE150

 1
25771 - HOSE, VACCUM TRANSMITTING, NO.2
25770-33010

1NDTV..NDE150

 1
Common parts
90099-00289
90099-04613
90119-06859
90460-60006
90467-07211
90469-07021
91661-60616
91671-80612
91671-80818
91674-A0825
96132-50700
96134-52600
