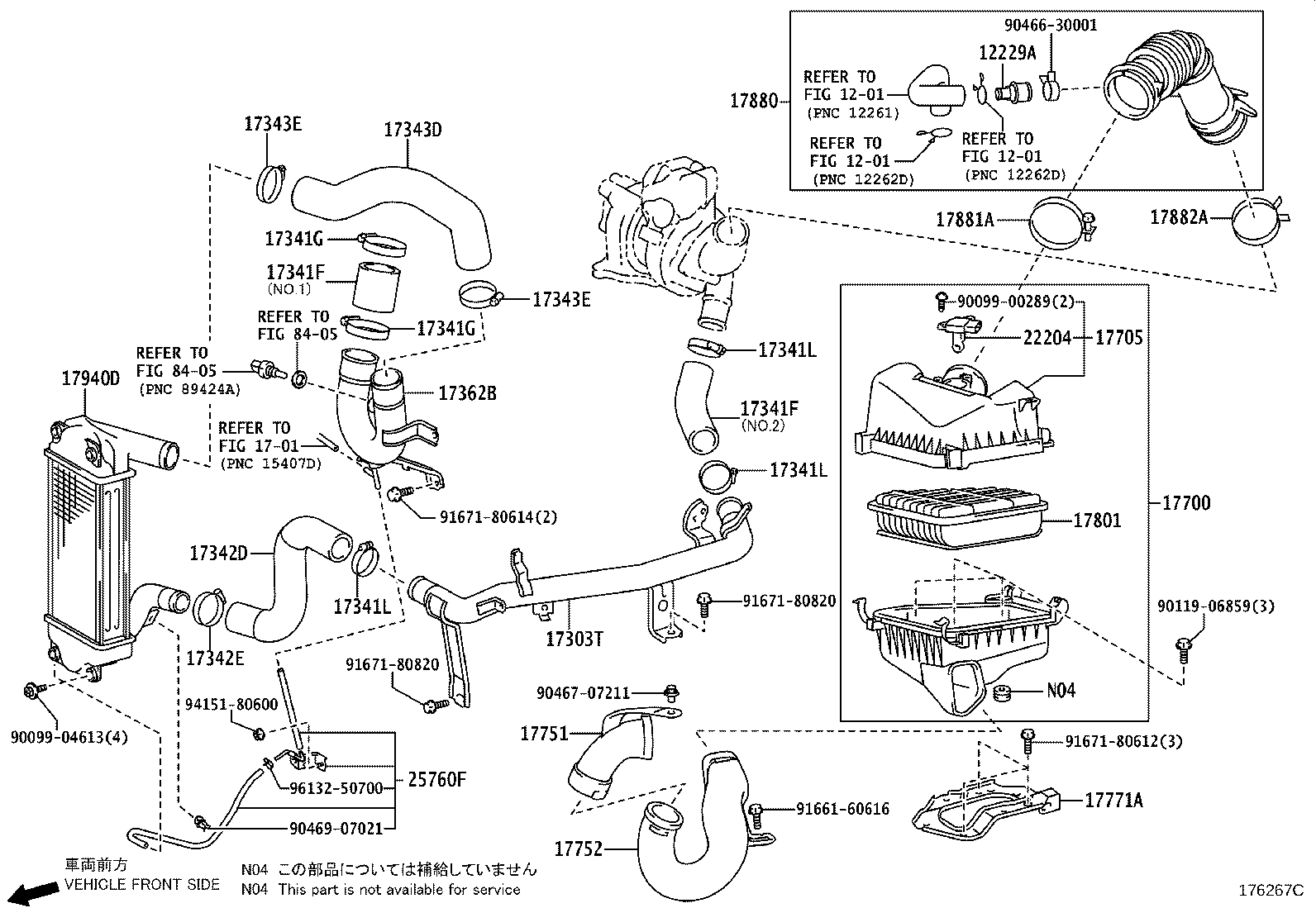

Toyota Auris/corolla (jpp) NDE150 AIR CLEANER

Part #	Description	Period	Qty
12229A - PIPE, VENTILATION
12229-33010	1NDTV..NDE150	12/2008 - 10/2009	1
17303T - PIPE SUB-ASSY, AIR
17303-33020	1NDTV..NDE150	12/2008 - 10/2009	1
17341F - HOSE, AIR, NO.1
17341-33070	1NDTV..NDE150 NO.2	12/2008 - 10/2009	1
17341-33040	1NDTV..NDE150	10/2006 - 12/2008	1
17341-33080	1NDTV..NDE150 NO.1	12/2008 - 10/2009	1
17341F - HOSE, AIR, NO.1
17341-33070	1NDTV..NDE150 NO.2	12/2008 - 10/2009	1
17341-33040	1NDTV..NDE150	10/2006 - 12/2008	1
17341-33080	1NDTV..NDE150 NO.1	12/2008 - 10/2009	1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-50005	1NDTV..NDE150	10/2006 - 12/2008	2
90460-63011	1NDTV..NDE150	12/2008 - 10/2009	2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-50005	1NDTV..NDE150	10/2006 - 12/2008	2
90460-63011	1NDTV..NDE150	12/2008 - 10/2009	2
17341L - CLAMP, HOSE
90460-50005	1NDTV..NDE150	12/2008 - 10/2009	3
17341L - CLAMP, HOSE
90460-50005	1NDTV..NDE150	12/2008 - 10/2009	3
17341L - CLAMP, HOSE
90460-50005	1NDTV..NDE150	12/2008 - 10/2009	3
17342D - HOSE, AIR, NO.2
17342-33080	1NDTV..NDE150	12/2008 - 10/2009	1
17342-33040	1NDTV..NDE150	10/2006 - 12/2008	1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-50005	1NDTV..NDE150	12/2008 - 10/2009	1
90460-50005	1NDTV..NDE150	10/2006 - 12/2008	2
17343D - HOSE, AIR, NO.3
17343-33070	1NDTV..NDE150	12/2008 - 10/2009	1
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-60006	1NDTV..NDE150	12/2008 - 10/2009	2
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-60006	1NDTV..NDE150	12/2008 - 10/2009	2
17362B - TUBE, AIR, NO.2
17362-33050	1NDTV..NDE150	12/2008 - 10/2009	1
17700 - CLEANER ASSY, AIR
17700-33200	1NDTV..NDE150	10/2006 - 12/2008	1
17700-33210	1NDTV..NDE150	12/2008 - 10/2009	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-33070	1NDTV..NDE150	10/2006 - 12/2008	1
17705-33080	1NDTV..NDE150	12/2008 - 10/2009	1
17751 - INLET, AIR CLEANER, NO.1
17751-26040	1NDTV..NDE150	10/2006 - 12/2008	1
17751-26040	1NDTV..NDE150	12/2008 - 10/2009	1
17752 - INLET, AIR CLEANER, NO.2
17752-26030	1NDTV..NDE150	10/2006 - 12/2008	1
17752-26030	1NDTV..NDE150	12/2008 - 10/2009	1
17771A - BRACKET, AIR CLEANER
17771-26020	1NDTV..NDE150	12/2008 - 10/2009	1
17771-26010	1NDTV..NDE150	10/2006 - 12/2008	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0R030	1NDTV..NDE150 (L)	12/2008 - 10/2009	1
17801-26020	1NDTV..NDE150	10/2006 - 02/2007	1
17801-26020	1NDTV..NDE150 (J)	12/2008 - 10/2009	1
17880 - HOSE ASSY, AIR CLEANER
17880-33060	1NDTV..NDE150	12/2008 - 10/2009	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750	1NDTV..NDE150	10/2006 - 12/2008	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-54002	1NDTV..NDE150	10/2006 - 12/2008	1
90466-54002	1NDTV..NDE150	12/2008 - 10/2009	1
17940D - INTERCOOLER ASSY
17900-0N020	1NDTV..NDE150	10/2006 - 12/2008	1
17900-0N040	1NDTV..NDE150	12/2008 - 10/2009	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-26010	1NDTV..NDE150	12/2008 - 10/2009	1
22204-33010	1NDTV..NDE150	10/2006 - 12/2008	1
25760F - HOSE ASSY, VACUUM TRANSMITTING
25770-33030	1NDTV..NDE150	12/2008 - 10/2009	1
Common parts
90099-00289
90099-04613
90119-06859
90466-30001
90467-07211
90469-07021
91661-60616
91671-80612
91671-80614
91671-80820
94151-80600
96132-50700
Linked diagrams
1201
1701
8405

NDE150R-AHLNXW (2008)

(0812- )1NDTV
