NDE150R-AHFNYW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )NDE150..RHD

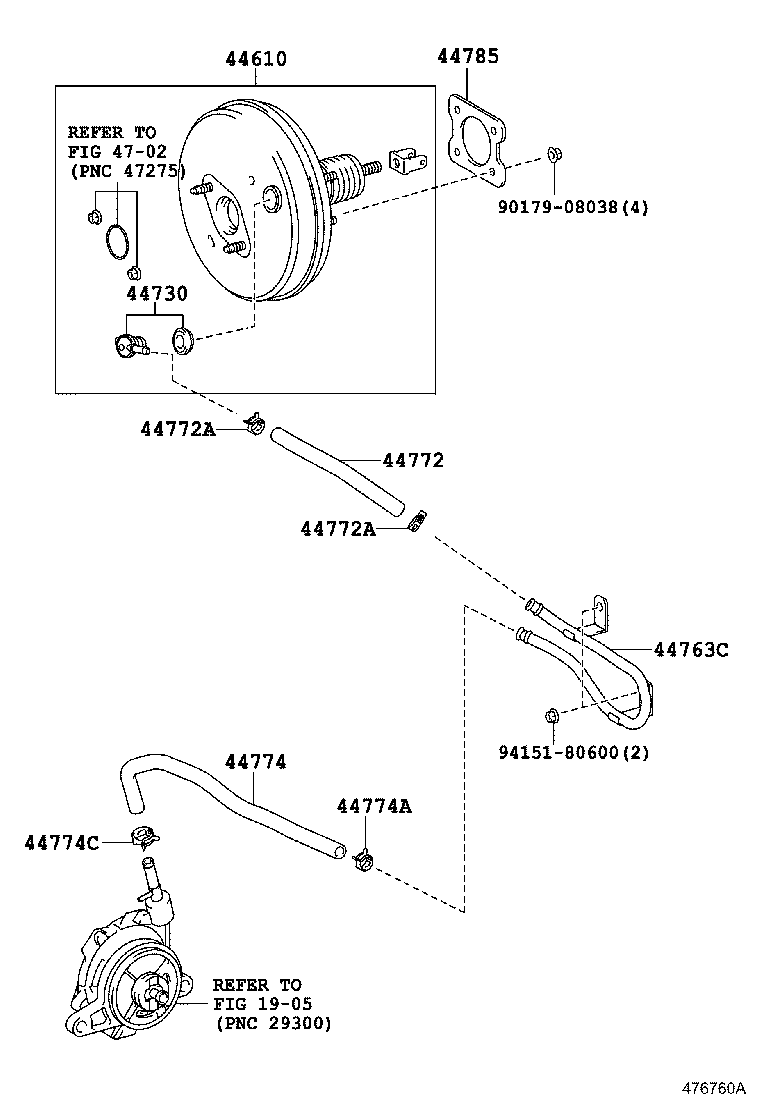

Click highlighted areas on diagram

diagram 1905 44610 44730 44763C 44772 44772A 44772A 44774 44774A 44774C 44785 4702 9017908038 9415180600
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-19045

NDE150..RHD;ADE150..RHD..DCRL

 1
44610-19035

NDE150..RHD;ADE150..RHD..DCRL

VSC-WITH(W/CUT OFF SWITCH)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020

NDE150;ADE150..DCRL

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12450

NDE150..RHD

 1
44763-12450

NDE150..RHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12610

NDE150..RHD

 1
44772-12620

NDE150..RHD

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

NDE150,ZRE151,ZZE150

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

NDE150,ZRE151,ZZE150

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12570

NDE150..RHD

 1
44774-12760

NDE150..RHD

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NDE150,ZZE150

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

NDE150,ZRE151,ZZE150

 1
Common parts
90179-08038
94151-80600
Linked diagrams
1905
4702
