NDE150R-AHFNYW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )1NDTV

Click highlighted areas on diagram

diagram 11302 11302A 11322A 11322B 11322C 1601 1601 1601 1603 1603 1603 7403 8401 9012608052 9020106021 9046706200 9155180825 9155180840 9155281040 9167180614 9415180841
Part # Description Qty Price

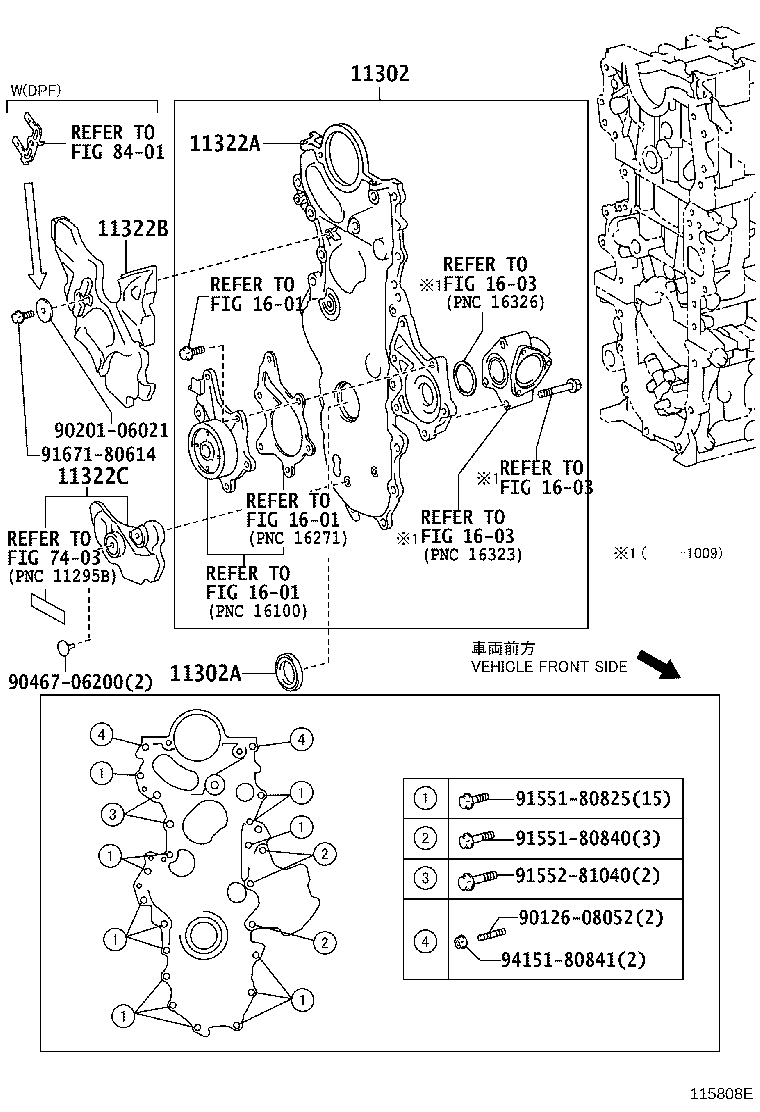

11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-33010

1NDTV..NDE150

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-40033

1NDTV..NDE150

 1
11322A - COVER, TIMING BELT, NO.1
11321-33020

1NDTV..NDE150

 1
11322B - COVER, TIMING BELT, NO.2
11322-33020

1NDTV..NDE150

 1
11322C - COVER, TIMING BELT, NO.3
11323-33010

1NDTV..NDE150

 1
Common parts
90126-08052
90201-06021
90467-06200
91551-80825
91551-80840
91552-81040
91671-80614
94151-80841
