NDE150R-AHFDYW (2009)
Toyota Auris/Corolla (Jpp)

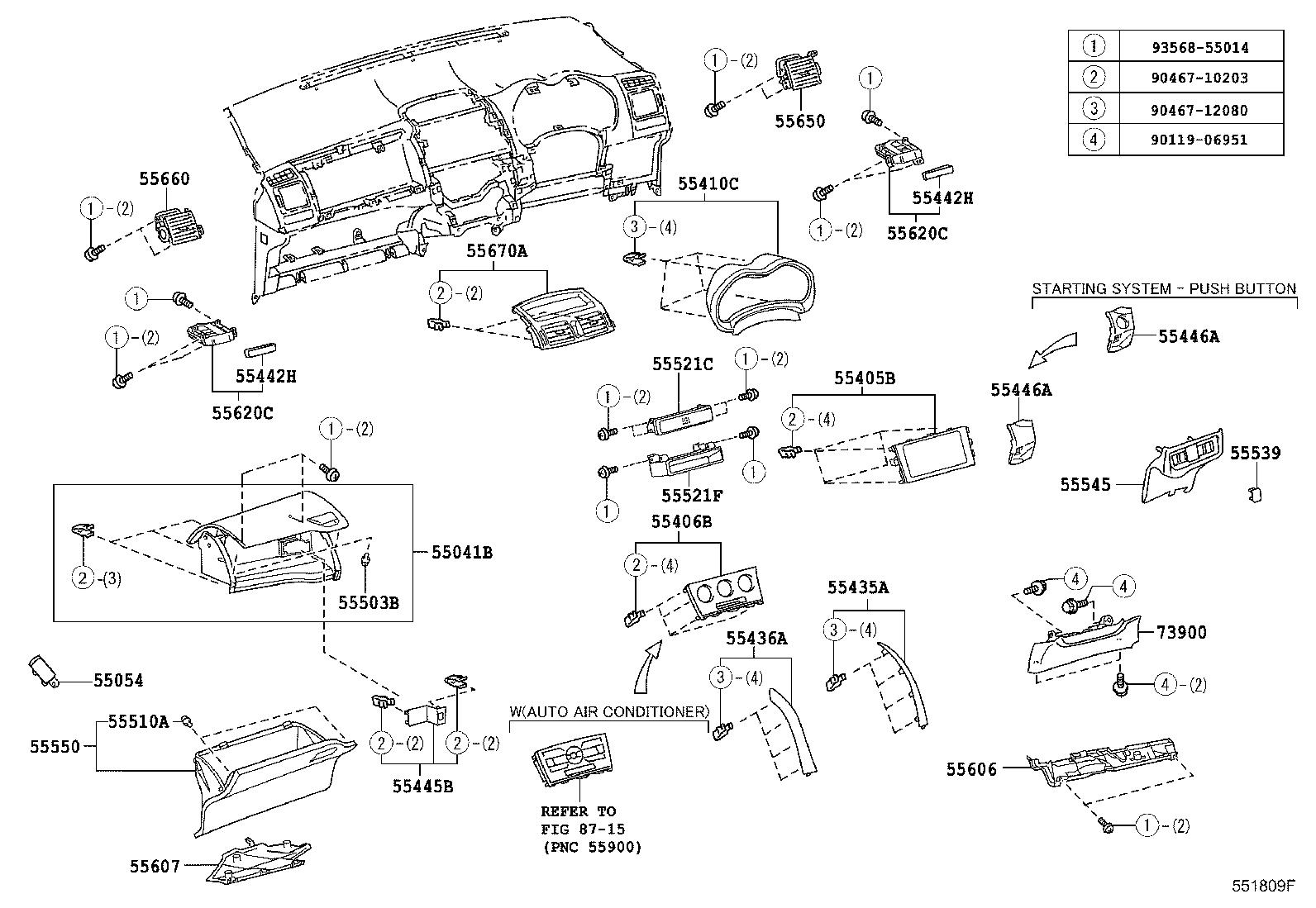

ILLUST NO. 2 OF 2(0910- )NDE150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-12120B0 |
NDE150 DK.GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55054-12020 |
NDE150,ZRE151 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-1A190 |
NDE150,ZRE151,ZZE150..TERRA AUDIO-CD RADIO 4SPEAKER |
1 | ||
| 55405-1A190 |
NDE150,ZRE151,ZZE150..TERRA AUDIO-TURN BY TURN NAVIGATION 6SPEAKER |
1 | ||
| 55405-1A190 |
NDE150,ZRE151,ZZE150..TERRA AUDIO-CD RADIO 6SPEAKER |
1 | ||
| 55405-1A190 |
NDE150,ZRE151,ZZE150..TERRA |
1 | ||
| 55405-12A10 |
NDE150,ZRE151..TERRA |
1 | ||
| 55405-12A10 |
NDE150,ZRE151..TERRA AUDIO-CD RADIO 4SPEAKER |
1 | ||
| 55405-12A10 |
NDE150,ZRE151..TERRA AUDIO-CD RADIO 6SPEAKER |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-12530 |
NDE150,ZRE151 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12B10B0 |
NDE150 DK.GRAY,TRIM1# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-12070 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55435-12150 |
NDE150,ZRE151..TERRA |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55436-12120 |
NDE150,ZRE151..TERRA |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-12230B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55442-12260B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55442-12230B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55442-12260B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-12230B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55442-12260B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55442-12230B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55442-12260B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-12160 |
NDE150 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12090B0 |
NDE150,ZZE150..RHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55446-12090B0 |
NDE150 DK.GRAY,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12090B0 |
NDE150,ZZE150..RHD..TERRA DK.GRAY,TRIM1# |
1 | ||
| 55446-12090B0 |
NDE150 DK.GRAY,TRIM1# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 58959-60060 |
NDE150,ZRE151 |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
NDE150,ZRE151 |
2 | ||
| 90541-05026 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-12190 |
NDE150,ZRE151,ZZE150..TERRA AUDIO-TURN BY TURN NAVIGATION 6SPEAKER |
1 | ||
| 55521-12190 |
NDE150,ZRE151,ZZE150..TERRA AUDIO-CD RADIO 4SPEAKER |
1 | ||
| 55521-12190 |
NDE150,ZRE151,ZZE150..TERRA |
1 | ||
| 55521-12190 |
NDE150,ZRE151,ZZE150..TERRA AUDIO-CD RADIO 6SPEAKER |
1 | ||
| 55521-12190 |
NDE150,ZRE151..TERRA AUDIO-CD RADIO 4SPEAKER |
1 | ||
| 55521-12190 |
NDE150,ZRE151..TERRA AUDIO-CD RADIO 6SPEAKER |
1 | ||
| 55521-12190 |
NDE150,ZRE151..TERRA |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-52020 |
NDE150,ZRE151,ZZE150..TERRA AUDIO-CD RADIO 6SPEAKER |
1 | ||
| 55521-52020 |
NDE150,ZRE151,ZZE150..TERRA AUDIO-CD RADIO 4SPEAKER |
1 | ||
| 55521-52020 |
NDE150,ZRE151..TERRA AUDIO-CD RADIO 4SPEAKER |
1 | ||
| 55521-52020 |
NDE150,ZRE151,ZZE150..TERRA AUDIO-TURN BY TURN NAVIGATION 6SPEAKER |
1 | ||
| 55521-52020 |
NDE150,ZRE151..TERRA AUDIO-CD RADIO 6SPEAKER |
1 | ||
| 55521-52020 |
NDE150,ZRE151,ZZE150..TERRA |
1 | ||
| 55521-52020 |
NDE150,ZRE151..TERRA |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
NDE150 VSC-WITH(W/CUT OFF SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
NDE150,ZRE151 DK.GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-12030B0 |
NDE150 DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12422B0 |
NDE150 DK.GRAY,TRIM1# |
1 | ||
| 55550-12421B0 |
NDE150 DK.GRAY,TRIM1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-12060 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 55606-12060 |
NDE150 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-12060 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 55607-12060 |
NDE150 |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-12131B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55620-12111B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-12113B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-12112B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-12130B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55620-12132B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-12131B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55620-12111B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-12113B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-12112B0 |
NDE150 DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-12130B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55620-12132B0 |
NDE150 DK.GRAY,TRIM1#,LH |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12290B0 |
NDE150,ZRE151 DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12360B0 |
NDE150,ZRE151 DK.GRAY,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-12310 |
NDE150,ZRE151,ZZE150..TERRA |
1 | ||
| 55670-12480 |
NDE150,ZRE151 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-12010B0 |
NDE150 DK.GRAY,TRIM1# |
1 | ||
| 73900-12010B0 |
NDE150,ZZE150..RHD..TERRA SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
