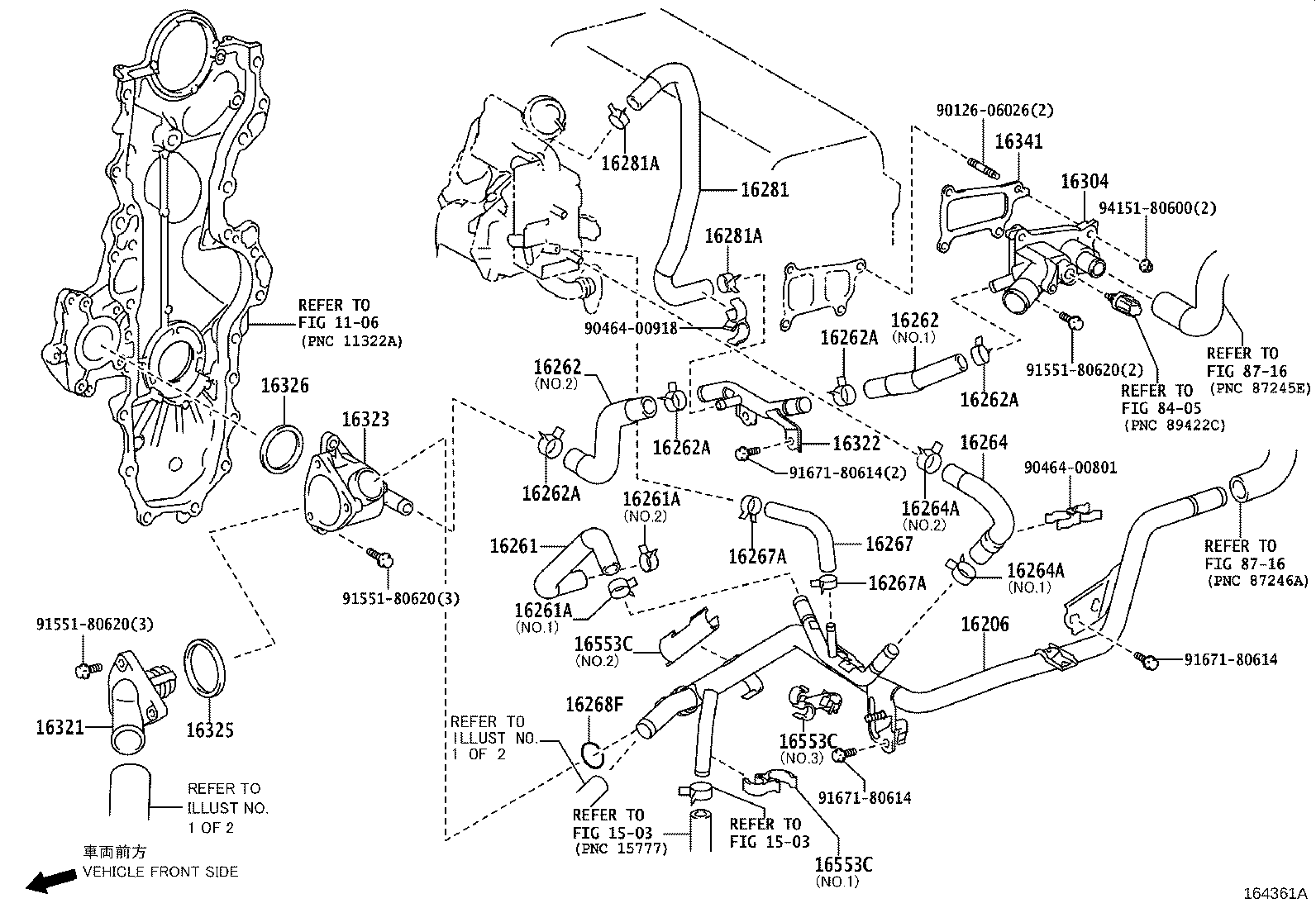

Toyota Auris/corolla (jpp) NDE150 RADIATOR & WATER OUTLET

Part #	Description	Period	Qty
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-33020	1NDTV..NDE150 TYPE A:REFER ILLUST.	10/2009 - 03/2010	1
16206-33040	1NDTV..NDE150 TYPE B:REFER ILLUST.	03/2010 - 09/2010	1
16206-33041	1NDTV..NDE150	09/2010 - 08/2012	1
16261 - HOSE, WATER BY-PASS
16261-33050	1NDTV..NDE150	10/2009 - 12/2999	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13054	1NDTV..NDE150 NO.1	10/2006 - 12/2008	1
96137-41701	1NDTV..NDE150 NO.1	10/2009 - 12/2999	1
90467-15022	1NDTV..NDE150 NO.2	10/2006 - 12/2008	1
96137-41901	1NDTV..NDE150 NO.2	10/2009 - 12/2999	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13054	1NDTV..NDE150 NO.1	10/2006 - 12/2008	1
96137-41701	1NDTV..NDE150 NO.1	10/2009 - 12/2999	1
90467-15022	1NDTV..NDE150 NO.2	10/2006 - 12/2008	1
96137-41901	1NDTV..NDE150 NO.2	10/2009 - 12/2999	1
16262 - HOSE, WATER INLET
16263-33010	1NDTV..NDE150 NO.2	10/2009 - 09/2010	1
16262-33011	1NDTV..NDE150 NO.1	12/2011 - 08/2012	1
16262-33010	1NDTV..NDE150 NO.1	10/2009 - 12/2011	1
16263-33030	1NDTV..NDE150 NO.2	09/2010 - 08/2012	1
16262 - HOSE, WATER INLET
16263-33010	1NDTV..NDE150 NO.2	10/2009 - 09/2010	1
16262-33011	1NDTV..NDE150 NO.1	12/2011 - 08/2012	1
16262-33010	1NDTV..NDE150 NO.1	10/2009 - 12/2011	1
16263-33030	1NDTV..NDE150 NO.2	09/2010 - 08/2012	1
16262A - CLIP(FOR WATER INLET HOSE)
96136-52201	1NDTV..NDE150	11/2009 - 12/2999	4
96136-42101	1NDTV..NDE150	10/2009 - 11/2009	4
16262A - CLIP(FOR WATER INLET HOSE)
96136-52201	1NDTV..NDE150	11/2009 - 12/2999	4
96136-42101	1NDTV..NDE150	10/2009 - 11/2009	4
16262A - CLIP(FOR WATER INLET HOSE)
96136-52201	1NDTV..NDE150	11/2009 - 12/2999	4
96136-42101	1NDTV..NDE150	10/2009 - 11/2009	4
16262A - CLIP(FOR WATER INLET HOSE)
96136-52201	1NDTV..NDE150	11/2009 - 12/2999	4
96136-42101	1NDTV..NDE150	10/2009 - 11/2009	4
16264 - HOSE, WATER BY-PASS, NO.2
16264-33030	1NDTV..NDE150	10/2009 - 12/2999	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13054	1NDTV..NDE150 NO.1	10/2006 - 12/2008	1
90467-15022	1NDTV..NDE150 NO.2	10/2006 - 12/2008	1
96137-41901	1NDTV..NDE150 NO.2	10/2009 - 12/2999	1
96137-41701	1NDTV..NDE150 NO.1	10/2009 - 12/2999	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13054	1NDTV..NDE150 NO.1	10/2006 - 12/2008	1
90467-15022	1NDTV..NDE150 NO.2	10/2006 - 12/2008	1
96137-41901	1NDTV..NDE150 NO.2	10/2009 - 12/2999	1
96137-41701	1NDTV..NDE150 NO.1	10/2009 - 12/2999	1
16267 - HOSE, WATER BY-PASS, NO.3
16267-33010	1NDTV..NDE150	10/2006 - 12/2008	1
16267-33030	1NDTV..NDE150	10/2009 - 12/2999	1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13054	1NDTV..NDE150	10/2006 - 12/2008	2
96136-41501	1NDTV..NDE150	10/2009 - 12/2999	2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-13054	1NDTV..NDE150	10/2006 - 12/2008	2
96136-41501	1NDTV..NDE150	10/2009 - 12/2999	2
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24021	1NDTV..NDE150	10/2009 - 09/2010	1
90301-20016	1NDTV..NDE150	09/2010 - 12/2999	1
16281 - HOSE, WATER BY-PASS, NO.4
16281-33030	1NDTV..NDE150	10/2009 - 12/2999	1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501	1NDTV..NDE150	10/2009 - 12/2999	2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501	1NDTV..NDE150	10/2009 - 12/2999	2
16304 - OUTLET SUB-ASSY, WATER
16304-33011	1NDTV..NDE150	12/2011 - 08/2012	1
16304-33010	1NDTV..NDE150	10/2009 - 12/2011	1
16321 - INLET, WATER
16321-33010	1NDTV..NDE150	10/2006 - 12/2008	1
16321-33020	1NDTV..NDE150	10/2009 - 09/2010	1
16321-33050	1NDTV..NDE150	09/2010 - 12/2999	1
16322 - PIPE, WATER INLET
16322-33010	1NDTV..NDE150	10/2009 - 12/2999	1
16323 - HOUSING, WATER INLET
16323-33030	1NDTV..NDE150	09/2010 - 12/2999	1
16323-33010	1NDTV..NDE150	10/2009 - 09/2010	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010	1NDTV..NDE150	10/2006 - 12/2008	1
16325-62010	1NDTV..NDE150	10/2009 - 12/2999	1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-33010	1NDTV..NDE150	10/2009 - 09/2010	1
16326-33030	1NDTV..NDE150	09/2010 - 12/2999	1
16341 - GASKET, WATER OUTLET
16341-33010	1NDTV..NDE150	10/2009 - 12/2999	1
16553C - CLAMP, HOSE
16581-33060	1NDTV..NDE150 NO.3T/P A:REF.ILLUST	10/2009 - 03/2010	1
16581-33050	1NDTV..NDE150 NO.2	10/2009 - 12/2999	1
16581-33130	1NDTV..NDE150 NO.3T/P B:REF.ILLUST	03/2010 - 12/2999	1
16581-33040	1NDTV..NDE150 NO.1	10/2009 - 12/2999	1
16553C - CLAMP, HOSE
16581-33060	1NDTV..NDE150 NO.3T/P A:REF.ILLUST	10/2009 - 03/2010	1
16581-33050	1NDTV..NDE150 NO.2	10/2009 - 12/2999	1
16581-33130	1NDTV..NDE150 NO.3T/P B:REF.ILLUST	03/2010 - 12/2999	1
16581-33040	1NDTV..NDE150 NO.1	10/2009 - 12/2999	1
16553C - CLAMP, HOSE
16581-33060	1NDTV..NDE150 NO.3T/P A:REF.ILLUST	10/2009 - 03/2010	1
16581-33050	1NDTV..NDE150 NO.2	10/2009 - 12/2999	1
16581-33130	1NDTV..NDE150 NO.3T/P B:REF.ILLUST	03/2010 - 12/2999	1
16581-33040	1NDTV..NDE150 NO.1	10/2009 - 12/2999	1
Common parts
90126-06026
90464-00801
90464-00918
91551-80620
91671-80614
94151-80600
Linked diagrams
1106
1503
8405
8716

NDE150R-AHFDYW (2009)

ILLUST NO. 2 OF 2(1009- )1NDTV
