NDE150L-AHMNYW (2006)
Toyota Auris/Corolla (Jpp)

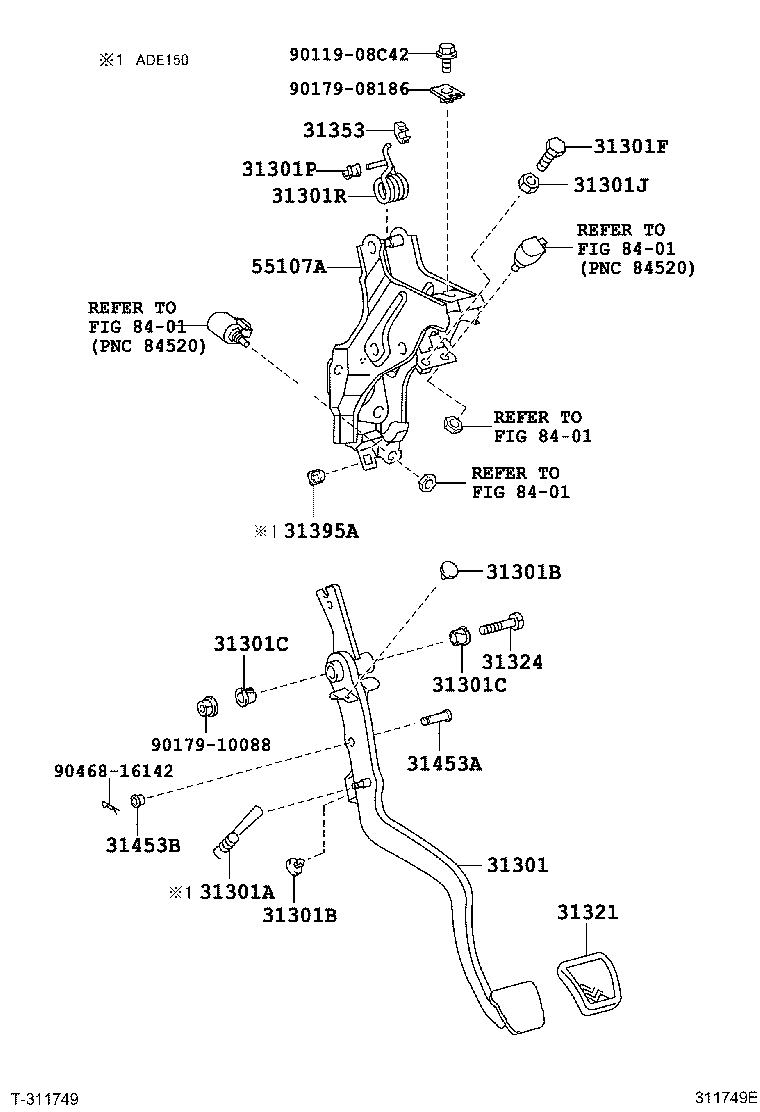

ILLUST NO. 1 OF 2(0610- )ADE150,NDE150,ZRE152..LHD..5F,6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12520 |
NDE150..LHD..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NDE150,ZRE151,ZZE150..5F |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
NDE150,ZRE151,ZZE150..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
NDE150,ZRE151,ZZE150..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
NDE150,ZRE151,ZZE150..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
NDE150,ZRE151,ZZE150..5F |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
ADE150,ZZE150;NDE150,ZRE151..5F |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
NDE150..LHD..5F |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 31394-12080 |
NDE150..LHD..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-42010 |
NDE150,ZRE151,ZZE150..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90109-10167 |
NDE150,ZRE151,ZZE150..LHD..5F |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
NDE150..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08256 |
NDE150,ZRE151,ZZE150..LHD..5F L=36.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
NDE150,ZRE151,ZZE150..LHD..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12300 |
NDE150..LHD..5F |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90179-08186 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||

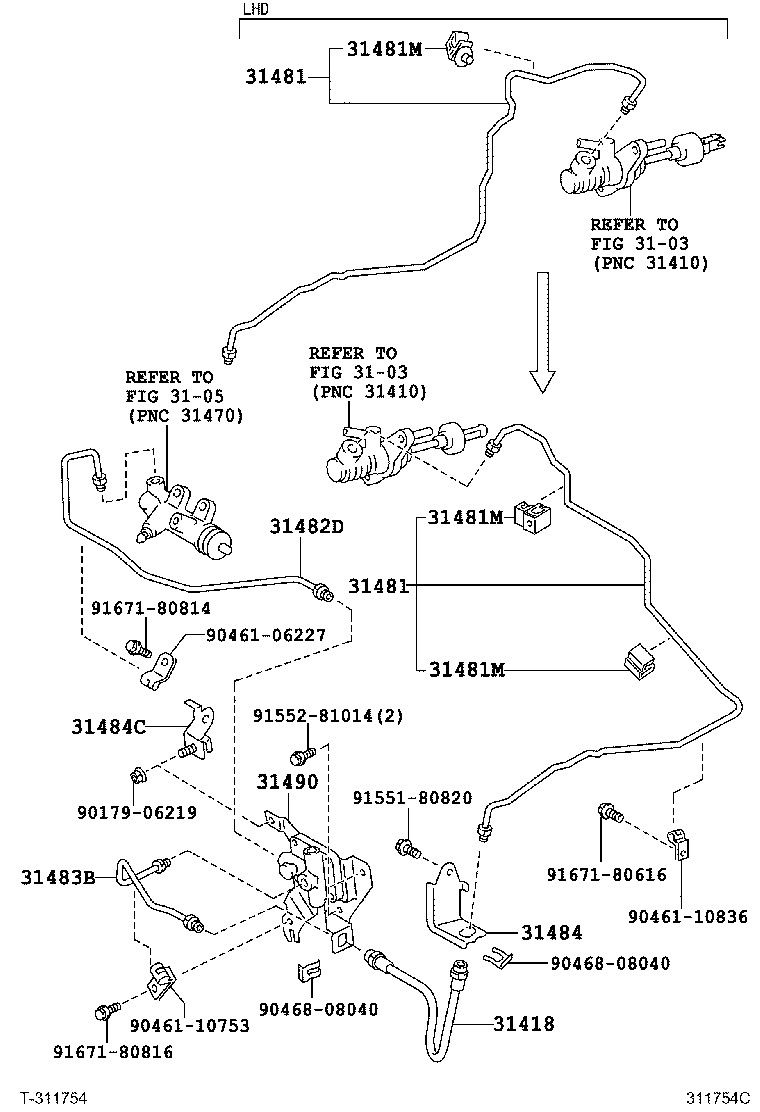

ILLUST NO. 2 OF 2(0610-0812)NDE150..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02E28 |
NDE150,ZRE151,ZZE150..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12360 |
NDE150,ZRE151,ZZE150..LHD..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12360 |
NDE150,ZRE151,ZZE150..LHD..5F |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D46 |
NDE150,ZRE151,ZZE150..LHD..5F |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D46 |
NDE150,ZRE151,ZZE150..LHD..5F |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D46 |
NDE150,ZRE151,ZZE150..LHD..5F |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-12311 |
NDE150..5F |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-12080 |
NDE150..5F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-12500 |
NDE150,ZRE151,ZZE150..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-12531 |
NDE150..5F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-12100 |
NDE150..5F |
1 | ||
| Common parts | ||||
| 90179-06219 | ||||
| 90461-06227 | ||||
| 90461-10753 | ||||
| 90461-10836 | ||||
| 90468-08040 | ||||
| 91551-80820 | ||||
| 91552-81014 | ||||
| 91671-80616 | ||||
| 91671-80814 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
