NDE150L-AHLNXW (2008)
Toyota Auris/Corolla (Jpp)
Production
Dec 2008
-
Oct 2009
Engine
1NDTV
Transmission
6FS MTM
Displacement
2500cc
Power
168 HP (125 kW)

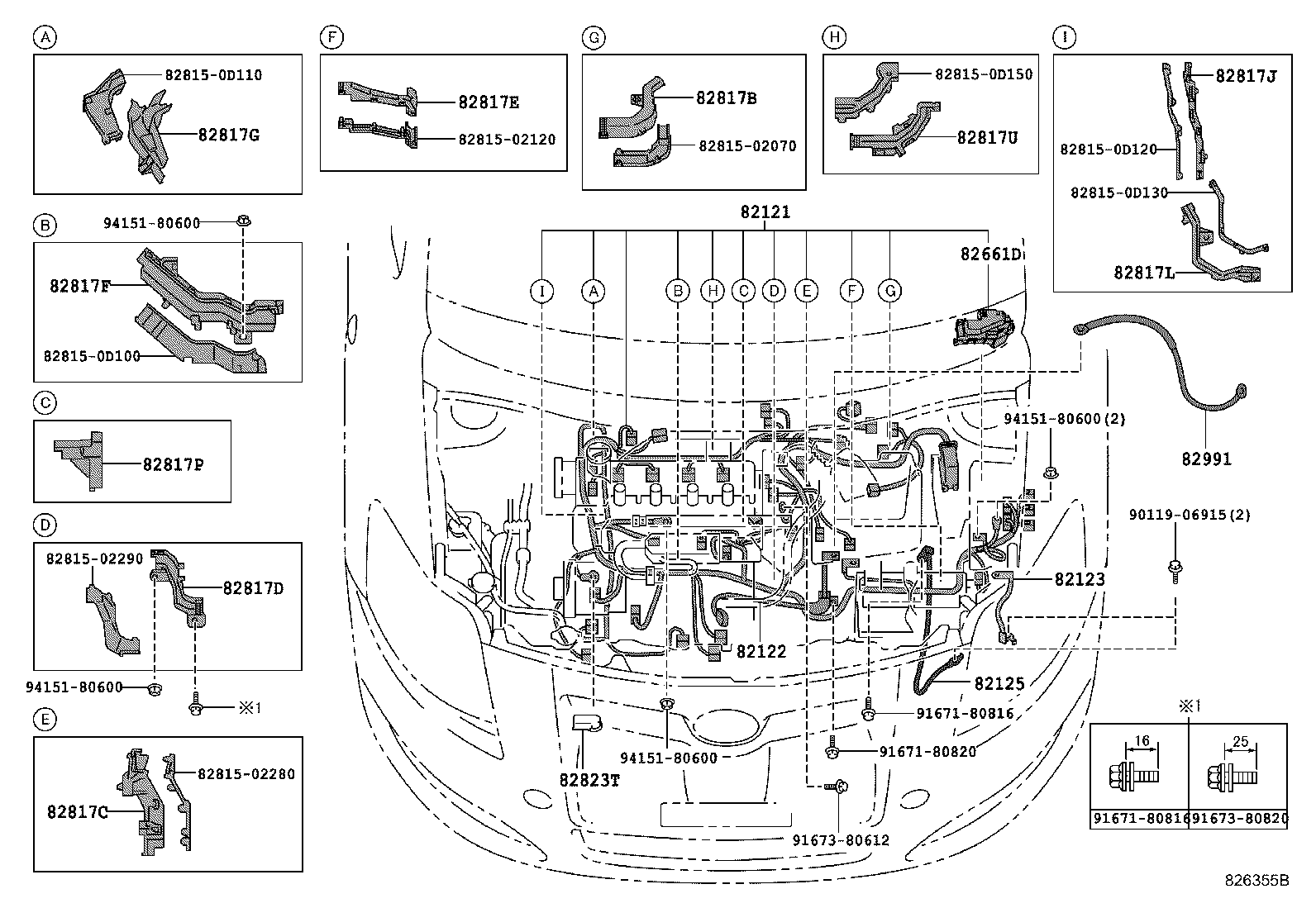

ILLUST NO. 2 OF 8(0812- )NDE150
Click highlighted areas on diagram
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12K50 |
NDE150..6F..DCR |
1 | ||
| 82121-12K60 |
NDE150..6FS..DCR |
1 | ||
| 82121-12K90 |
NDE150..6F..DCRL |
1 | ||
| 82121-12L00 |
NDE150..6FS..DCRL |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-12430 |
NDE150 |
1 | ||
| 82122-12400 |
NDE150..LHD COLD AREA SPEC |
1 | ||
| 82122-12410 |
NDE150 |
1 | ||
| 82122-12400 |
NDE150 SUB COLD AREA SPEC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12500 |
NDE150;ADE150..DCRL |
1 | ||
| 82123-12410 |
NDE150 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-12580 |
NDE150 |
1 | ||
| 82125-12420 |
NDE150 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-02380 |
NDE150 |
1 | ||
| 82817-02380 |
NDE150 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02400 |
NDE150 |
1 | ||
| 82817-02790 |
NDE150 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-02800 |
NDE150 |
1 | ||
| 82817-02410 |
NDE150 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-02430 |
NDE150 |
1 | ||
| 82817-02430 |
NDE150 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-0D170 |
NDE150 |
1 | ||
| 82817-12860 |
NDE150 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12A10 |
NDE150 |
1 | ||
| 82817-0D180 |
NDE150 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12A20 |
NDE150 |
1 | ||
| 82817-0D190 |
NDE150 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-0D200 |
NDE150 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-0D230 |
NDE150 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-0D210 |
NDE150 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12120 |
NDE150;ADE150..DCRL |
1 | ||
| 82991-12120 |
NDE150 |
1 | ||
| Common parts | ||||
| 82815-02070 | ||||
| 82815-02120 | ||||
| 82815-02280 | ||||
| 82815-02290 | ||||
| 82815-0D100 | ||||
| 82815-0D110 | ||||
| 82815-0D120 | ||||
| 82815-0D130 | ||||
| 82815-0D150 | ||||
| 90119-06915 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80612 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||
