NDE150L-AHLDXW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )NDE150

Click highlighted areas on diagram

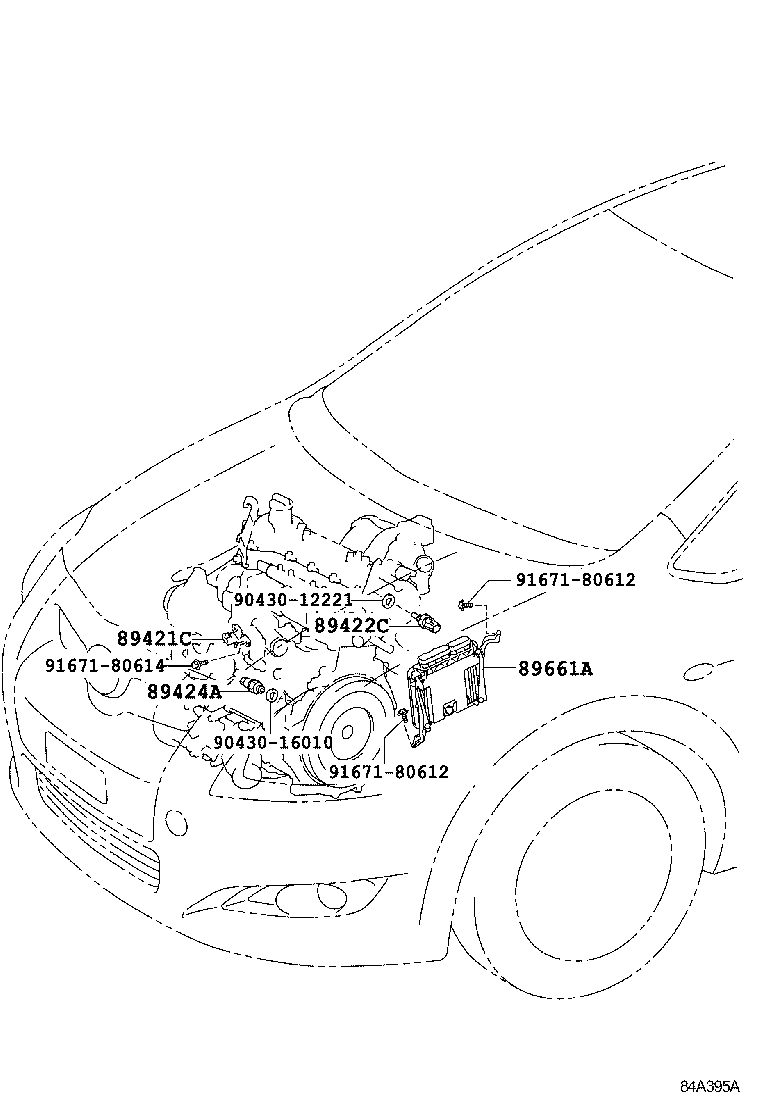

diagram 89421C 89422C 89424A 89661A 9043012221 9043016010 9167180612 9167180612 9167180614
Part # Description Qty Price
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20200

NDE150;ADE150..DCRL

 1
89420-12220

NDE150

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030

NDE150

 1
89422-33030

NDE150;ADE150..DCRL

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010

NDE150;ADE150..DCRL

 1
89661A - COMPUTER, ENGINE CONTROL
89660-12J60

NDE150..6F..DCRL

P/N LABEL=8966102T20

 1
89660-12J70

NDE150..6FS..DCRL

P/N LABEL=8966102T30

 1
89660-12J30

NDE150..6FS..DCR

P/N LABEL=8966102S90

 1
89660-12J50

NDE150..6FS..DCR

EXHAUST EMISSION CONTROL-ECE STEP4 WITHOUT(OBD),P/N LABEL=8966102T10

 1
89660-12J20

NDE150..6F..DCR

P/N LABEL=8966102S80

 1
89660-12J40

NDE150..6F..DCR

EXHAUST EMISSION CONTROL-ECE STEP4 WITHOUT(OBD),P/N LABEL=8966102T00

 1
Common parts
90430-12221
90430-16010
91671-80612
91671-80614
