Toyota Auris/corolla (jpp) NDE150 WIRING & CLAMP

NDE150L-AHGDYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008

Engine 1NDTV

Transmission 5FS MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 8(0610- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-12B20	NDE150,ZRE151,ZZE150..LHD..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER	10/2006 - 12/2008	1
82151-12B10	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82151-12B20	NDE150,ZRE151,ZZE150..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER	10/2006 - 12/2008	1
82152 - WIRE, FRONT DOOR, LH
82152-12B20	NDE150,ZRE151,ZZE150..LHD..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER	10/2006 - 12/2008	1
82152-12B10	NDE150,ZRE151,ZZE150..LHD..TERRA	10/2006 - 12/2008	1
82152-12B20	NDE150,ZRE151,ZZE150..LHD..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER	10/2006 - 12/2008	1
82152-12B30	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)	10/2006 - 12/2008	1
82152-12B30	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER	10/2006 - 12/2008	1
82152-12B30	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER	10/2006 - 12/2008	1
82153 - WIRE, REAR DOOR, NO.1
82153-12530	NDE150,ZRE151,ZZE150..TERRA POWER WINDOW-WITH(FRONT & REAR)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82153-12510	NDE150,ZRE151,ZZE150..TERRA AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82153-12520	NDE150,ZRE151,ZZE150..TERRA POWER WINDOW-WITH(FRONT & REAR)	10/2006 - 12/2008	1
82153-12500	NDE150,ZRE151,ZZE150..TERRA	10/2006 - 12/2008	1
82154 - WIRE, REAR DOOR, NO.2
82154-12470	NDE150,ZRE151,ZZE150..TERRA POWER WINDOW-WITH(FRONT & REAR)	10/2006 - 12/2008	1
82154-12480	NDE150,ZRE151,ZZE150..TERRA POWER WINDOW-WITH(FRONT & REAR)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82154-12460	NDE150,ZRE151,ZZE150..TERRA AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82154-12450	NDE150,ZRE151,ZZE150..TERRA	10/2006 - 12/2008	1
82184 - WIRE, BACK DOOR, NO.1
82184-12590	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82185 - WIRE, BACK DOOR, NO.2
82185-12660	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
82666L - HOLDER, CONNECTOR NO.9
82666-12410	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
Common parts
90119-06915

ILLUST NO. 1 OF 8(0610- )LHD

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-12D20	NDE150..LHD..5F	10/2006 - 12/2008	1
82111-12G80	NDE150..LHD..5F COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82111-12G90	NDE150..LHD..5FS	10/2006 - 12/2008	1
82111-12G80	NDE150..LHD..5F..TERRA COLD AREA SPEC&VSC-WITH	10/2006 - 12/2008	1
82111-12J10	NDE150..LHD..5FS COLD AREA SPEC	10/2006 - 12/2008	1
82111-12J00	NDE150..LHD..5FS VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82111-12D60	NDE150..LHD..5F..TERRA VSC-WITH	10/2006 - 12/2008	1
82111-12J20	NDE150..LHD..5FS COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82111-12D60	NDE150..LHD..5F VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82111-12G70	NDE150..LHD..5F COLD AREA SPEC	10/2006 - 12/2008	1
82111-12D60	NDE150..LHD..5F PART NUMBER LABEL=82111-12D60	10/2006 - 12/2008	1
82111-12G70	NDE150..LHD..5F PART NUMBER LABEL=82111-12G70	10/2006 - 12/2008	1
82111-12G80	NDE150..LHD..5F..TERRA PART NUMBER LABEL=82111-12G80	10/2006 - 12/2008	1
82111-12G90	NDE150..LHD..5FS PART NUMBER LABEL=82111-12G90	10/2006 - 12/2008	1
82111-12J00	NDE150..LHD..5FS PART NUMBER LABEL=82111-12J00	10/2006 - 12/2008	1
82111-12J10	NDE150..LHD..5FS PART NUMBER LABEL=82111-12J10	10/2006 - 12/2008	1
82111-12J20	NDE150..LHD..5FS PART NUMBER LABEL=82111-12J20	10/2006 - 12/2008	1
82111-12G80	NDE150..LHD..5F PART NUMBER LABEL=82111-12G80	10/2006 - 12/2008	1
82111-12D20	NDE150..LHD..5F PART NUMBER LABEL=82111-12D20	10/2006 - 12/2008	1
82111-12D60	NDE150..LHD..5F..TERRA PART NUMBER LABEL=82111-12D60	10/2006 - 12/2008	1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-12130	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-12140	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12A90	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-02640	NDE150..LHD	10/2006 - 12/2008	1
Common parts
90119-06915
94151-80600
Linked diagrams
8401

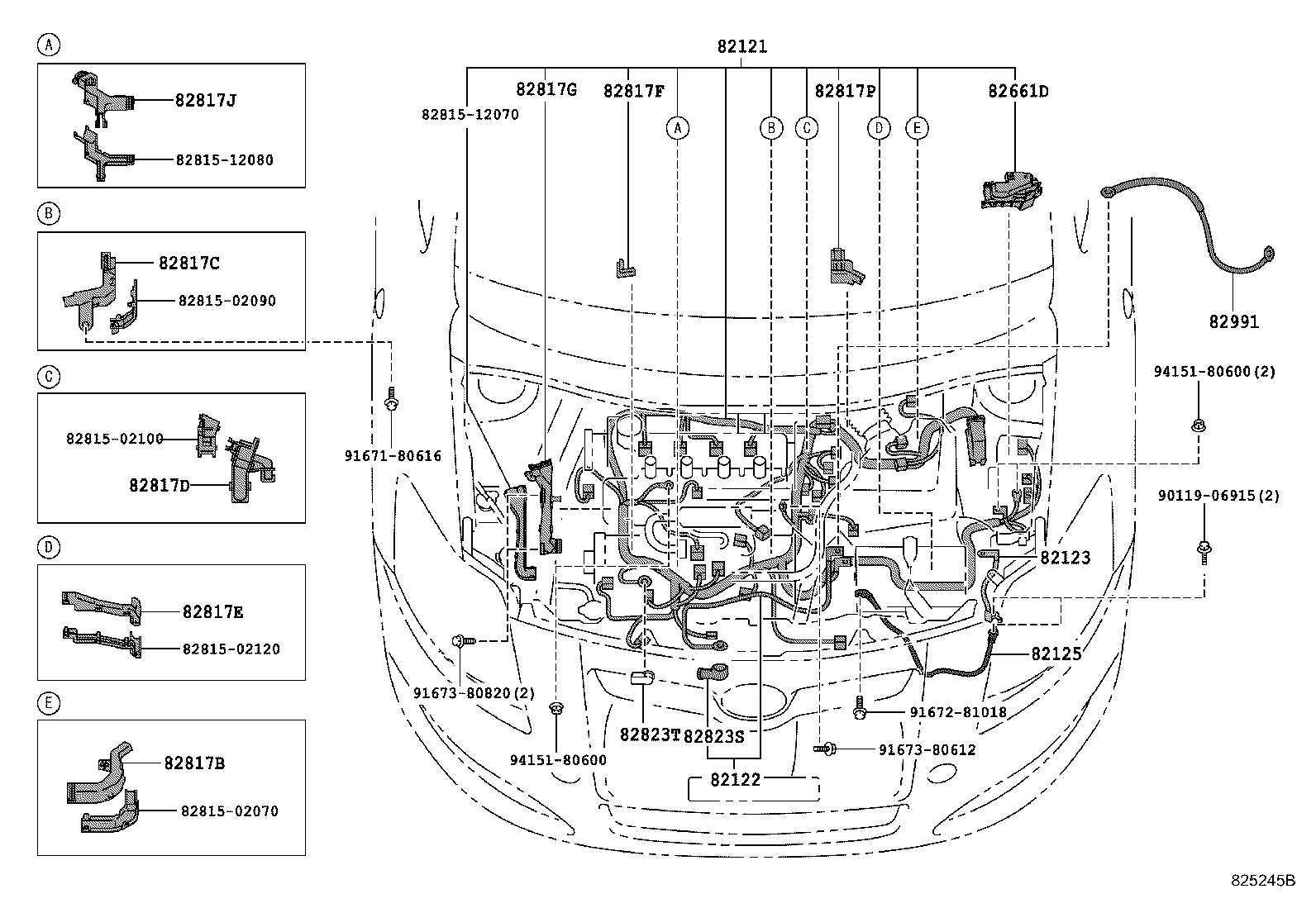

ILLUST NO. 2 OF 8(0610-0812)NDE150

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-12C60	NDE150..5F	10/2006 - 12/2008	1
82121-12C70	NDE150..5FS	10/2006 - 12/2008	1
82122 - WIRE, ENGINE, NO.2
82122-12400	NDE150..LHD COLD AREA SPEC	10/2006 - 12/2008	1
82122-12410	NDE150	10/2006 - 12/2008	1
82122-12400	NDE150 SUB COLD AREA SPEC	10/2006 - 12/2008	1
82123 - WIRE, ENGINE, NO.3
82123-12410	NDE150	10/2006 - 12/2008	1
82125 - WIRE, TRANSMISSION
82125-12420	NDE150	10/2006 - 12/2008	1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12280	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-02380	NDE150	10/2006 - 12/2008	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-02400	NDE150	10/2006 - 12/2008	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-02410	NDE150	10/2006 - 12/2008	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-02430	NDE150	10/2006 - 12/2008	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-12860	NDE150	10/2006 - 12/2008	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-12A10	NDE150	10/2006 - 12/2008	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-12A20	NDE150	10/2006 - 12/2008	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-02750	NDE150	05/2007 - 12/2008	1
82823S - CAP, STARTER TERMINAL
82823-52010	NDE150	10/2006 - 12/2008	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	ADE150,ZZE150;NDE150,ZRE151..5F,5FS	10/2006 - 01/2009	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12120	NDE150	10/2006 - 12/2008	1
Common parts
82815-02070
82815-02090
82815-02100
82815-02120
82815-12070
82815-12080
90119-06915
91671-80616
91672-81018
91673-80612
91673-80820
94151-80600

ILLUST NO. 3 OF 8(0610- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-12R60	NDE150..LHD..5F;ZRE151,ZZE150..LHD..5F..SOL	10/2006 - 12/2008	1
82141-12S30	NDE150,ZRE151..LHD..5F COLD AREA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH	10/2006 - 12/2008	1
82141-1ET20	NDE150,ZRE151..LHD..5FS	10/2006 - 12/2008	1
82141-1ET80	NDE150,ZRE151..LHD..5FS COLD AREA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH	10/2006 - 12/2008	1
82141-12R60	NDE150..LHD..5F;ZRE151,ZZE150..LHD..5F..SOL PART NUMBER LABEL=82141-12Y30 OR -12R60	10/2006 - 12/2008	1
82141-12S30	NDE150,ZRE151..LHD..5F PART NUMBER LABEL=82141-12Z10 OR -12S30	10/2006 - 12/2008	1
82141-1ET20	NDE150,ZRE151..LHD..5FS PART NUMBER LABEL=82141-1AA70 OR -1ET20	10/2006 - 12/2008	1
82141-1ET80	NDE150,ZRE151..LHD..5FS PART NUMBER LABEL=82141-1AB50 OR -1ET80	10/2006 - 12/2008	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-12220	NDE150..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82143-12220	NDE150..5F..TERRA VSC-WITH	10/2006 - 12/2008	1
82143-12220	NDE150 VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82143-12220	NDE150..LHD..5F..TERRA COLD AREA SPEC&VSC-WITH	10/2006 - 12/2008	1
82666A - HOLDER, CONNECTOR NO.2
82666-12350	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
82666B - HOLDER, CONNECTOR NO.3
82666-12360	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	2
82666B - HOLDER, CONNECTOR NO.3
82666-12360	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	2
82666C - HOLDER, CONNECTOR NO.4
82666-12380	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82666N - HOLDER, CONNECTOR NO.10
82666-21040	NDE150,ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82666-21040	NDE150,ZRE151..LHD..5F..TERRA COLD AREA SPEC&VSC-WITH	10/2006 - 12/2008	1
82666-21040	NDE150,ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82666-21040	NDE150,ZRE151,ZZE150..5F..TERRA VSC-WITH	10/2006 - 12/2008	1
82666P - HOLDER, CONNECTOR NO.11
82666-35040	NDE150,ZRE151..LHD..5F..TERRA COLD AREA SPEC&VSC-WITH	10/2006 - 12/2008	1
82666-35040	NDE150,ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82666-35040	NDE150,ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH)	10/2006 - 12/2008	1
82666-35040	NDE150,ZRE151,ZZE150..5F..TERRA VSC-WITH	10/2006 - 12/2008	1
82671 - BLOCK, JUNCTION
82671-12260	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82671J - BLOCK, JUNCTION, NO.2
82671-12250	NDE150..LHD;ZRE151..5FS..TERRA;ZRE151,ZZE150..LHD..SOL	10/2006 - 12/2008	1
82673 - BRACKET, JUNCTION BLOCK
82673-12140	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82673G - BRACKET, JUNCTION BLOCK
82673-12130	NDE150..LHD;ZRE151..5FS..TERRA;ZRE151,ZZE150..LHD..SOL	10/2006 - 12/2008	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-12D10	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
Common parts
90119-06915
90159-60546
Linked diagrams
8401
8601

ILLUST NO. 6 OF 8(0610- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
23292-26030
82715-02290
82715-02300
82715-02390
82715-02400
82715-12420
82715-12870
82715-12890
82715-12A01
82715-12A10
82715-12A20
82715-12A30
82715-12A40
82715-12A90
82715-12B00
82715-12C00
82715-12C10
82715-12C30
82715-12C60
82715-12C80
82715-12F20
82715-12F30
82715-12N70
82715-12N80
82715-12R10
82715-20A10
82715-20A20
82715-20A30
82715-20A40
82715-20A70
82715-20A80
82715-32390
82715-42560
82715-6A460
82729-20150
91551-80608
91551-80816
91671-80610
91671-80612
91671-80614
91671-80616
91671-80816
91671-80820
91672-81018
91673-80612
91673-80616
91673-80820

ILLUST NO. 6 OF 8(0610- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
53614-12040
82711-1E350
82711-35470
82715-12840
82715-12E20
82715-12F40
82715-12L40
82715-12L90
82715-12N20
82715-12N30
82715-12N40
91671-80816
91672-81018
91673-80612
Linked diagrams
4702

ILLUST NO. 7 OF 8(0610- )

Click highlighted areas on diagram

CONNECTOR 1/2

Part #	Description	Period	Qty	Price
Common parts
82824-52130
82824-60460
90080-98298
90980-10795
90980-10860
90980-11016
90980-11019
90980-11075
90980-11148
90980-11156
90980-11162
90980-11255
90980-11659
90980-11660
90980-11967
90980-WA052

ILLUST NO. 6 OF 8(0610- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-16790
82715-12A50
82715-12B70
82715-12B80
82715-12C70
82715-12G00
82715-12N00
82715-12N40
82715-12N90
82715-12P00
82715-12P10
82715-12P20
82715-12P30
82715-12P50
82715-12P60
82715-12P70
82715-12P80
82715-12P90
82715-12Q30
82715-12Q41
82715-12Q60
82715-12Q70
82715-28L90
82715-42740
82715-52S30
82715-52U00
90119-08C59
91671-80612
91671-80614
91671-80816
91671-80820
91672-81018
91673-80612

ILLUST NO. 5 OF 8(0610- )

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-12C70	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)	10/2006 - 12/2008	1
82161-12C50	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82161-12C70	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)	10/2006 - 12/2008	1
82161-12C60	NDE150,ZRE151,ZZE150..LHD..TERRA SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)	10/2006 - 12/2008	1
82161-12C70	NDE150,ZRE151,ZZE150..LHD..TERRA SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)	10/2006 - 12/2008	1
82161-12C70	NDE150,ZRE151,ZZE150..LHD..TERRA SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82161-12C70	NDE150,ZRE151,ZZE150..LHD..TERRA SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82161-12C70	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82161-12C70	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82161-12C50	NDE150,ZRE151,ZZE150..LHD PART NUMBER LABEL=82161-12C50	10/2006 - 12/2008	1
82161-12C70	NDE150,ZRE151,ZZE150..LHD..TERRA PART NUMBER LABEL=82161-12C70	10/2006 - 12/2008	1
82161-12C60	NDE150,ZRE151,ZZE150..LHD..TERRA PART NUMBER LABEL=82161-12C60	10/2006 - 12/2008	1
82162 - WIRE, FLOOR, NO.2
82162-12630	NDE150,ZRE151,ZZE150..LHD	10/2006 - 12/2008	1
82162-12650	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82162-12640	NDE150,ZRE151,ZZE150..LHD..TERRA SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)	10/2006 - 12/2008	1
82162-12650	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)	10/2006 - 12/2008	1
82162-12650	NDE150,ZRE151,ZZE150..LHD..TERRA SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)	10/2006 - 12/2008	1
82162-12650	NDE150,ZRE151,ZZE150..LHD..TERRA SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82162-12650	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82162-12650	NDE150,ZRE151,ZZE150..LHD..TERRA SEAT HEATER-WITH(DRIVER & PASSENGER)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&AUDIO-CD RADIO 6SPEAKER	10/2006 - 12/2008	1
82162-12650	NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR)&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)	10/2006 - 12/2008	1
82162-12630	NDE150,ZRE151,ZZE150..LHD PART NUMBER LABEL=82162-12630	10/2006 - 12/2008	1
82162-12640	NDE150,ZRE151,ZZE150..LHD..TERRA PART NUMBER LABEL=82162-12640	10/2006 - 12/2008	1
82162-12650	NDE150,ZRE151,ZZE150..LHD..TERRA PART NUMBER LABEL=82162-12650	10/2006 - 12/2008	1
82171 - WIRE, ROOF, NO.1
82171-12A00	ADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)	10/2006 - 01/2009	1
82171-12A00	ADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS) PART NUMBER LABEL=82171-12A00	10/2006 - 01/2009	1
82345 - DIODE
82345-12050	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
82666D - HOLDER, CONNECTOR NO.5
82666-12400	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
82666E - HOLDER, CONNECTOR NO.6
82666-20280	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
82666F - HOLDER, CONNECTOR NO.7
82666-12370	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
82666G - HOLDER, CONNECTOR NO.8
82666-20280	NDE150,ZRE151,ZZE150	10/2006 - 12/2008	1
Common parts
90119-06915
Linked diagrams
8121

ILLUST NO. 8 OF 8(0610- )

Click highlighted areas on diagram

CONNECTOR 2/2

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10996
90980-10997
90980-11070
90980-11856
90980-11909
90980-12404
90980-12460
90980-12490
90980-12495
90980-12551
90980-12552
90980-12699
90980-12717

NDE150L-AHGDYW (2006)

ILLUST NO. 4 OF 8(0610- )

ILLUST NO. 1 OF 8(0610- )LHD

ILLUST NO. 2 OF 8(0610-0812)NDE150

ILLUST NO. 3 OF 8(0610- )LHD

ILLUST NO. 6 OF 8(0610- )

ILLUST NO. 6 OF 8(0610- )

ILLUST NO. 7 OF 8(0610- )

ILLUST NO. 6 OF 8(0610- )

ILLUST NO. 5 OF 8(0610- )

ILLUST NO. 8 OF 8(0610- )

Part Price Details
