NDE150L-AHFNYW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0812- )NDE150..LHD..6F

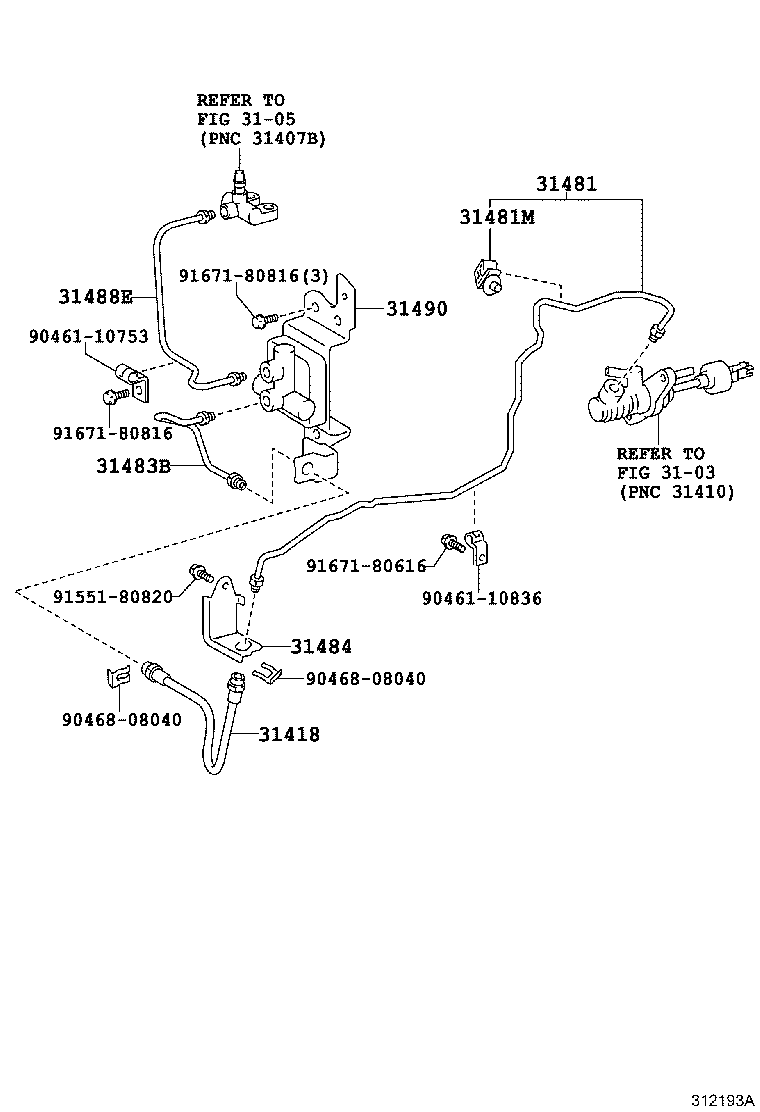

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31481M 31483B 31484 31488E 31490 9046110753 9046110836 9046808040 9046808040 9155180820 9167180616 9167180816 9167180816
Part # Description Qty Price
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-12130

NDE150..6F

 1
31488E - TUBE, BLEEDER TO ACCUMULATOR
31488-12020

NDE150..6F

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-12110

NDE150..6F

 1
Common parts
90461-10753
90461-10836
90468-08040
91551-80820
91671-80616
91671-80816
Linked diagrams
3103
3105
