ADE150R-AHFNYW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Jan 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)ADE150..RHD

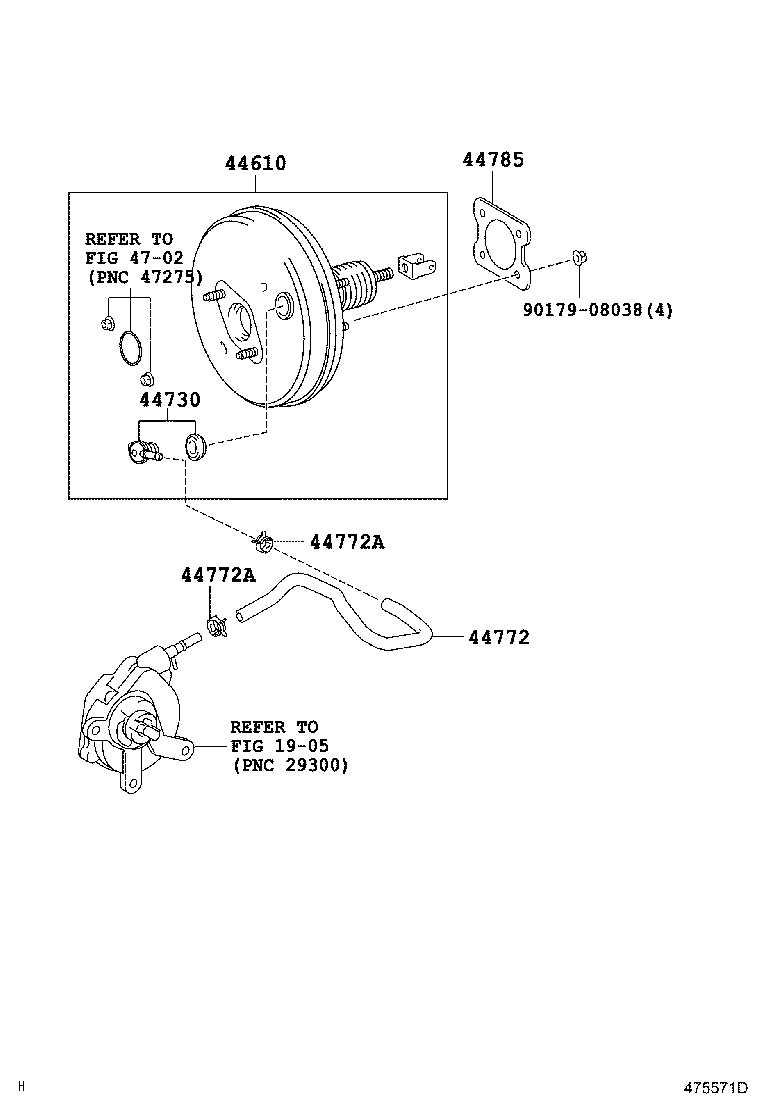

Click highlighted areas on diagram

diagram 1905 44610 44730 44772 44772A 44772A 44785 4702 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-19035

ADE150..RHD;NDE150..RHD..(5F,5FS)

VSC-WITH(W/CUT OFF SWITCH)

 1
44610-19045

ADE150..RHD;NDE150..RHD..(5F,5FS)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020

ADE150;NDE150..5F,5FS

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12640

ADE150..RHD

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

ADE150

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

ADE150

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

ADE150

 1
Common parts
90179-08038
Linked diagrams
1905
4702
