Toyota Auris/corolla (jpp) ADE150 EXHAUST GAS RECIRCULATION SYSTEM

Manufacturers Home
Toyota
EU
AURIS/COROLLA (JPP)
ADE150L-AHFNXW (2006)
2501 - EXHAUST GAS RECIRCULATION SYSTEM

ADE150L-AHFNXW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Jan 2009

Engine 1ADFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

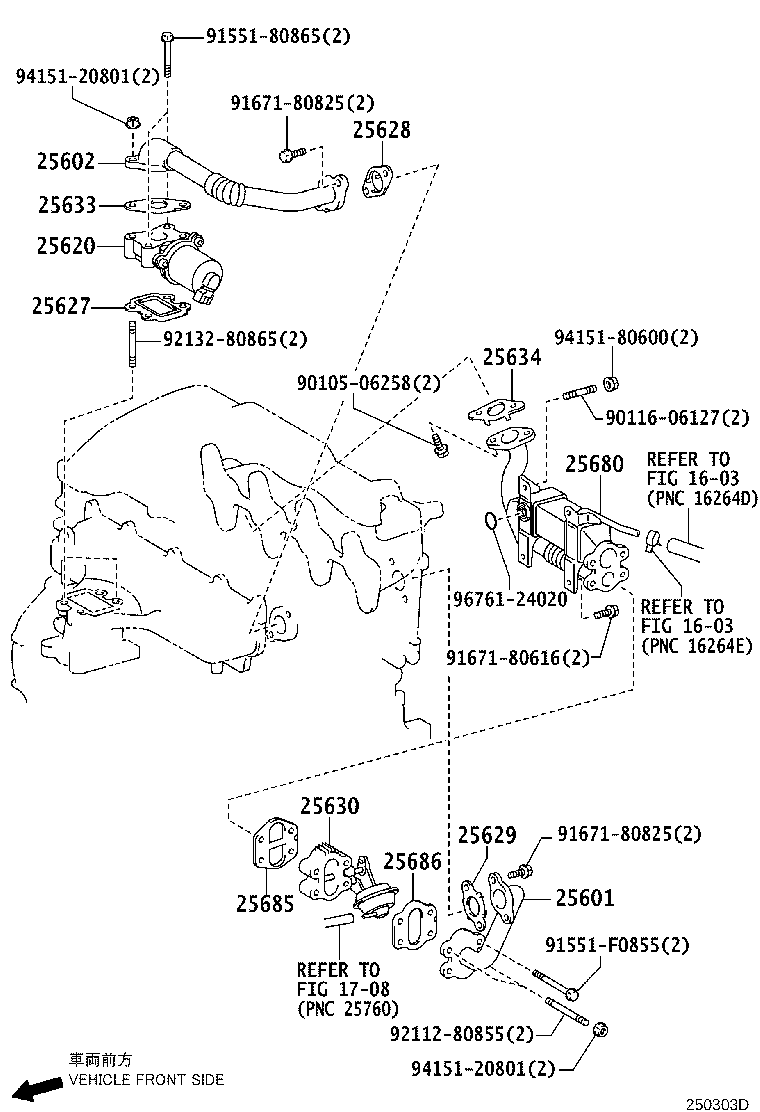

(0610-0901)1ADFTV..DCRL

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-26020	1ADFTV..ADE150..DCRL	10/2006 - 01/2009	1
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-26030	1ADFTV..ADE150	10/2006 - 01/2009	1
25620 - VALVE ASSY, EGR
25620-26111	1ADFTV..ADE150 (J)	02/2007 - 01/2009	1
25620-0R021	1ADFTV..ADE150 (L)	02/2007 - 01/2009	1
25620-0R020	1ADFTV..ADE150 (L)	10/2006 - 02/2007	1
25620-26110	1ADFTV..ADE150 (J)	10/2006 - 02/2007	1
25627 - GASKET, EGR VALVE
25627-26020	1ADFTV..ADE150	10/2006 - 01/2009	1
25628 - GASKET, EGR INLET
25628-26010	1ADFTV..ADE150	10/2006 - 07/2008	1
25628-26020	1ADFTV..ADE150	07/2008 - 01/2009	1
25629 - GASKET, EGR VALVE ADAPTER
25629-26010	1ADFTV..ADE150	10/2006 - 01/2009	1
25630 - VALVE ASSY, EGR, NO.2
25630-26010	1ADFTV..ADE150..DCRL	10/2006 - 12/2008	1
25630-26020	1ADFTV..ADE150..DCRL	12/2008 - 01/2009	1
25633 - GASKET, EGR VALVE
25633-26010	1ADFTV..ADE150	10/2006 - 01/2009	1
25634 - GASKET, EGR PIPE
25634-0R010	1ADFTV..ADE150	10/2006 - 01/2009	1
25680 - COOLER ASSY, EGR
25680-26020	1ADFTV..ADE150..DCRL	01/2007 - 05/2008	1
25680-0R010	1ADFTV..ADE150..DCR	10/2006 - 01/2007	1
25680-26041	1ADFTV..ADE150..DCR	05/2008 - 01/2009	1
25680-0R020	1ADFTV..ADE150..DCRL	10/2006 - 01/2007	1
25680-26040	1ADFTV..ADE150..DCR	01/2007 - 05/2008	1
25680-26021	1ADFTV..ADE150..DCRL	05/2008 - 01/2009	1
25685 - GASKET, EGR COOLER, NO.1
25685-0R010	1ADFTV..ADE150..DCRL	10/2006 - 01/2009	1
25686 - GASKET, EGR COOLER, NO.2
25686-0R010	1ADFTV..ADE150..DCRL	10/2006 - 01/2009	1
Common parts
90105-06258
90116-06127
91551-80865
91551-F0855
91671-80616
91671-80825
92112-80855
92132-80865
94151-20801
94151-80600
96761-24020
Linked diagrams
1603
1708

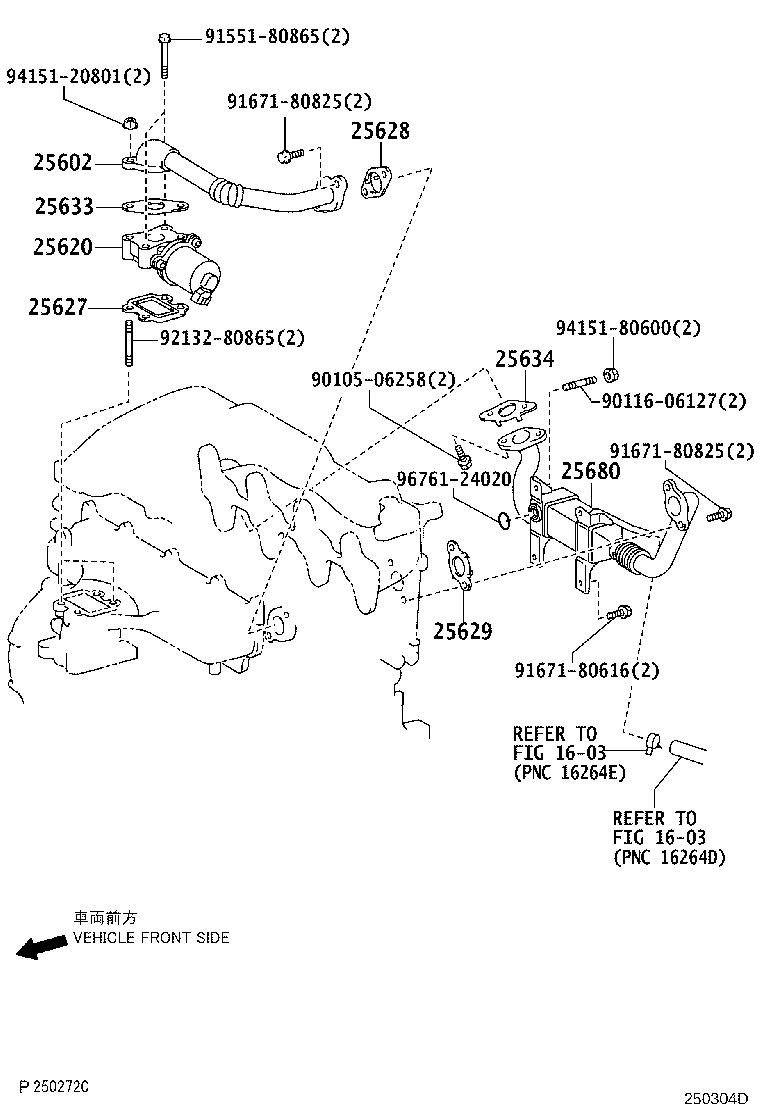

(0610-0901)1ADFTV..DCR

Click highlighted areas on diagram

Part #	Description	Period	Qty
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-26030	1ADFTV..ADE150	10/2006 - 01/2009	1
25620 - VALVE ASSY, EGR
25620-26111	1ADFTV..ADE150 (J)	02/2007 - 01/2009	1
25620-0R021	1ADFTV..ADE150 (L)	02/2007 - 01/2009	1
25620-0R020	1ADFTV..ADE150 (L)	10/2006 - 02/2007	1
25620-26110	1ADFTV..ADE150 (J)	10/2006 - 02/2007	1
25627 - GASKET, EGR VALVE
25627-26020	1ADFTV..ADE150	10/2006 - 01/2009	1
25628 - GASKET, EGR INLET
25628-26010	1ADFTV..ADE150	10/2006 - 07/2008	1
25628-26020	1ADFTV..ADE150	07/2008 - 01/2009	1
25629 - GASKET, EGR VALVE ADAPTER
25629-26010	1ADFTV..ADE150	10/2006 - 01/2009	1
25633 - GASKET, EGR VALVE
25633-26010	1ADFTV..ADE150	10/2006 - 01/2009	1
25634 - GASKET, EGR PIPE
25634-0R010	1ADFTV..ADE150	10/2006 - 01/2009	1
25680 - COOLER ASSY, EGR
25680-26020	1ADFTV..ADE150..DCRL	01/2007 - 05/2008	1
25680-0R010	1ADFTV..ADE150..DCR	10/2006 - 01/2007	1
25680-26041	1ADFTV..ADE150..DCR	05/2008 - 01/2009	1
25680-0R020	1ADFTV..ADE150..DCRL	10/2006 - 01/2007	1
25680-26040	1ADFTV..ADE150..DCR	01/2007 - 05/2008	1
25680-26021	1ADFTV..ADE150..DCRL	05/2008 - 01/2009	1
Common parts
90105-06258
90116-06127
91551-80865
91671-80616
91671-80825
92132-80865
94151-20801
94151-80600
96761-24020
Linked diagrams
1603

ADE150L-AHFNXW (2006)

(0610-0901)1ADFTV..DCRL

(0610-0901)1ADFTV..DCR
