ADE150L-AHFNXW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Jan 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)1ADFTV

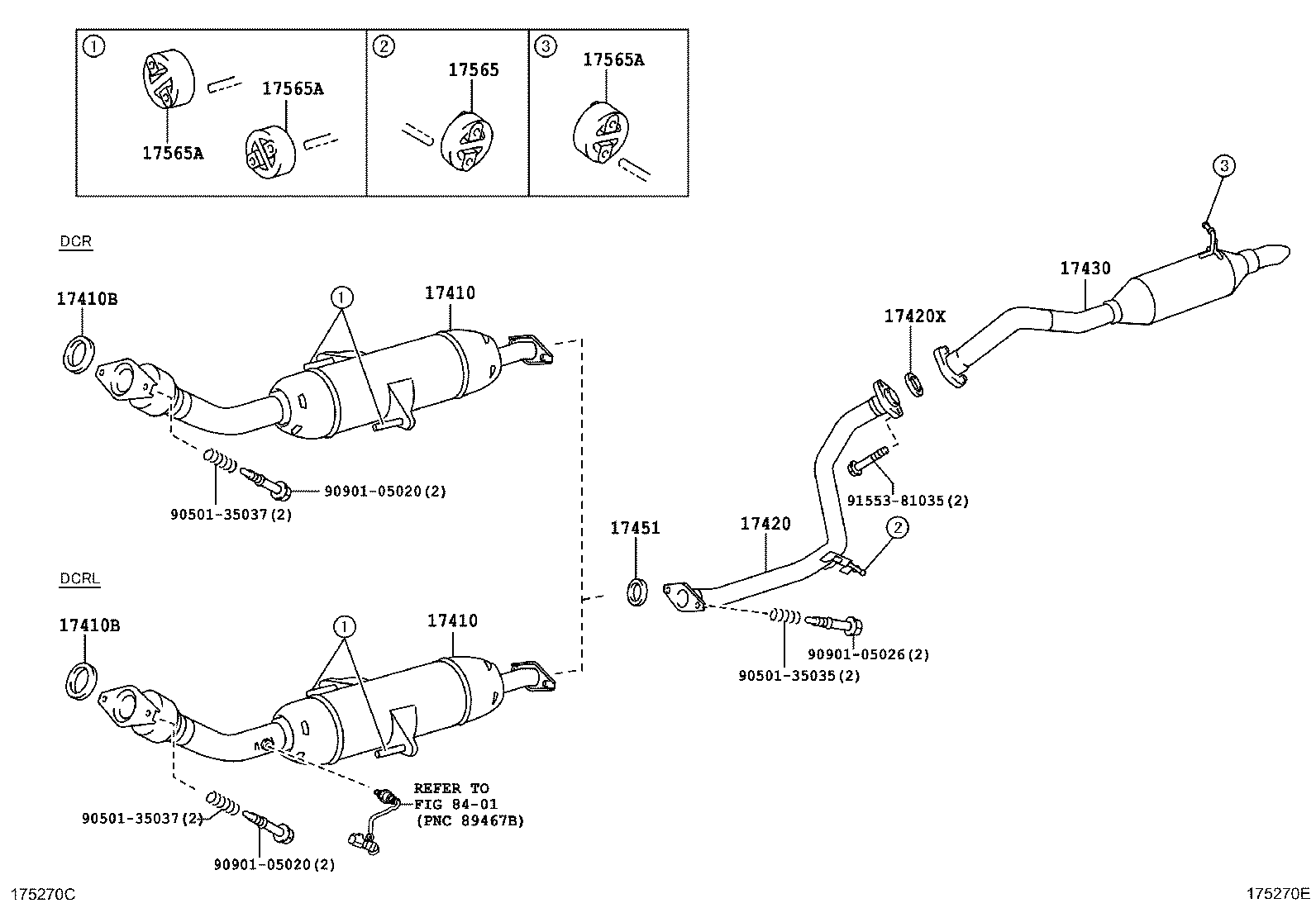

Click highlighted areas on diagram

diagram 17410 17410 17410B 17410B 17420 17420X 17430 17451 17565 17565A 17565A 17565A 8401 9050135035 9050135037 9050135037 9090105020 9090105020 9090105026 9155381035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-26370

1ADFTV..ADE150..DCR

*114=TOYOTA/AD1/Y

 1
17410-26380

1ADFTV..ADE150..DCRL

*114=TOYOTA/AD2/Y

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-26370

1ADFTV..ADE150..DCR

*114=TOYOTA/AD1/Y

 1
17410-26380

1ADFTV..ADE150..DCRL

*114=TOYOTA/AD2/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

1ADFTV..ADE150

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

1ADFTV..ADE150

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-22120

1ADFTV..ADE150;1NDTV..NDE150..5F,5FS

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06089

1ADFTV..ADE150

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-26720

1ADFTV..ADE150

 1
17451 - GASKET, EXHAUST PIPE
17451-28031

1ADFTV..ADE150

 1
17451-28030

1ADFTV,1NDTV,1ZRFE,4ZZFE..ADE150,NDE150,ZRE151,ZZE150

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22030

1ADFTV..ADE150

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1ADFTV..ADE150

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1ADFTV..ADE150

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1ADFTV..ADE150

 3
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
91553-81035
Linked diagrams
8401
