ADE150L-AHFDXW (2006)
Toyota Auris/Corolla (Jpp)
Production
Oct 2006
-
Jan 2009
Engine
1ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

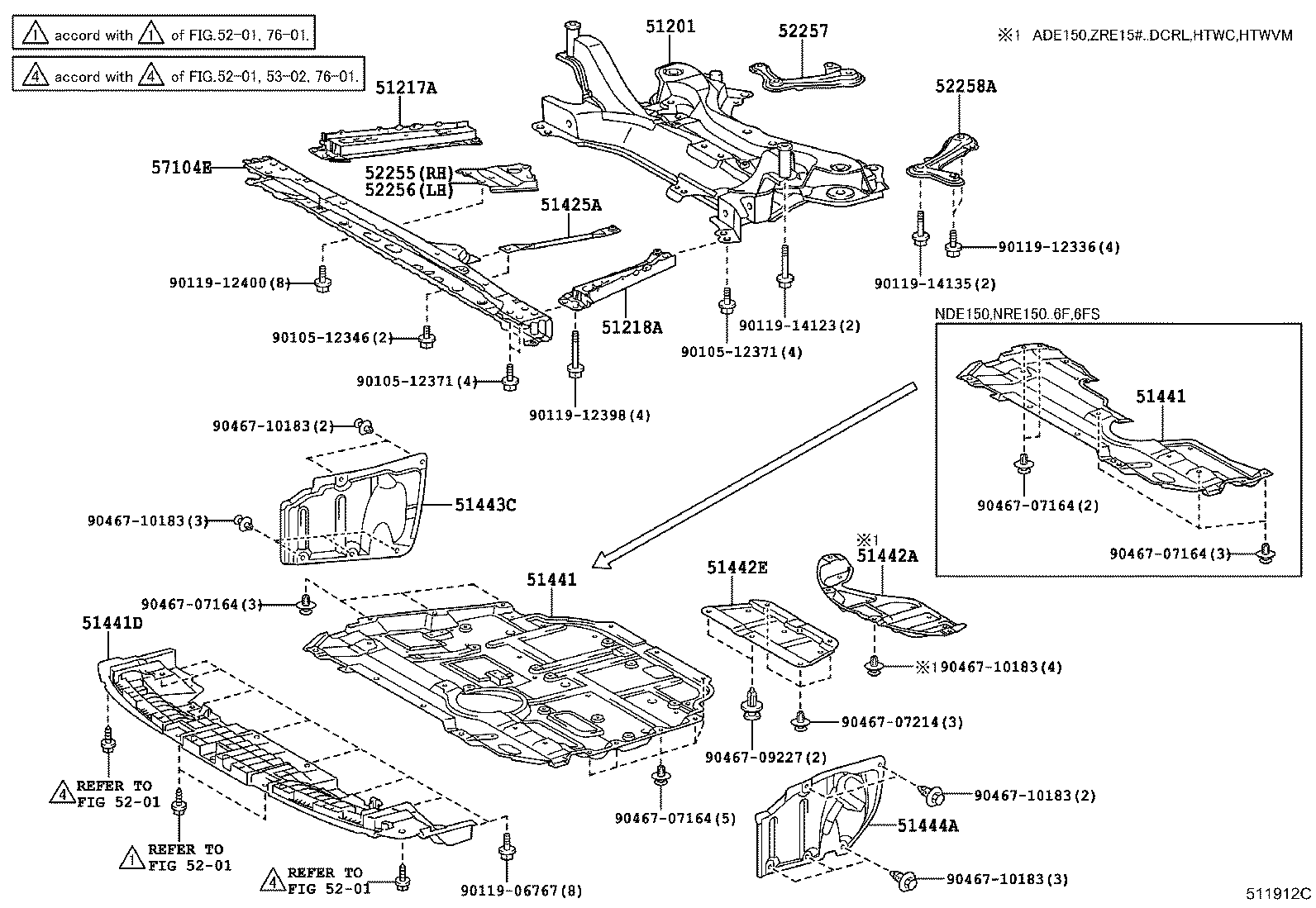

(0610-0812)NDE150,ZRE151,ZZE150 ; (0610-0901)ADE150
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-12441 |
ADE150 |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-12010 |
ADE150 |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-12010 |
ADE150 |
1 | ||
| 51425A - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER | ||||
| 51425-12060 |
ADE150 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-12070 |
ADE150 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-12070 |
ADE150 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 52618-12010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
1 | ||
| 51442A - COVER, ENGINE UNDER, FRONT NO.3 | ||||
| 51442-12210 |
ADE150 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12270 |
ADE150 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-12080 |
ADE150 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-12050 |
ADE150 |
1 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-12010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-12010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-12011 |
ADE150 |
1 | ||
| 52257-12010 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-12011 |
ADE150 |
1 | ||
| 52258-12010 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12270 |
ADE150 |
1 | ||
| Common parts | ||||
| 90105-12346 | ||||
| 90105-12371 | ||||
| 90119-06767 | ||||
| 90119-12336 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90119-14123 | ||||
| 90119-14135 | ||||
| 90467-07164 | ||||
| 90467-07214 | ||||
| 90467-09227 | ||||
| 90467-10183 | ||||
| Linked diagrams | ||||
| 5201 | ||||

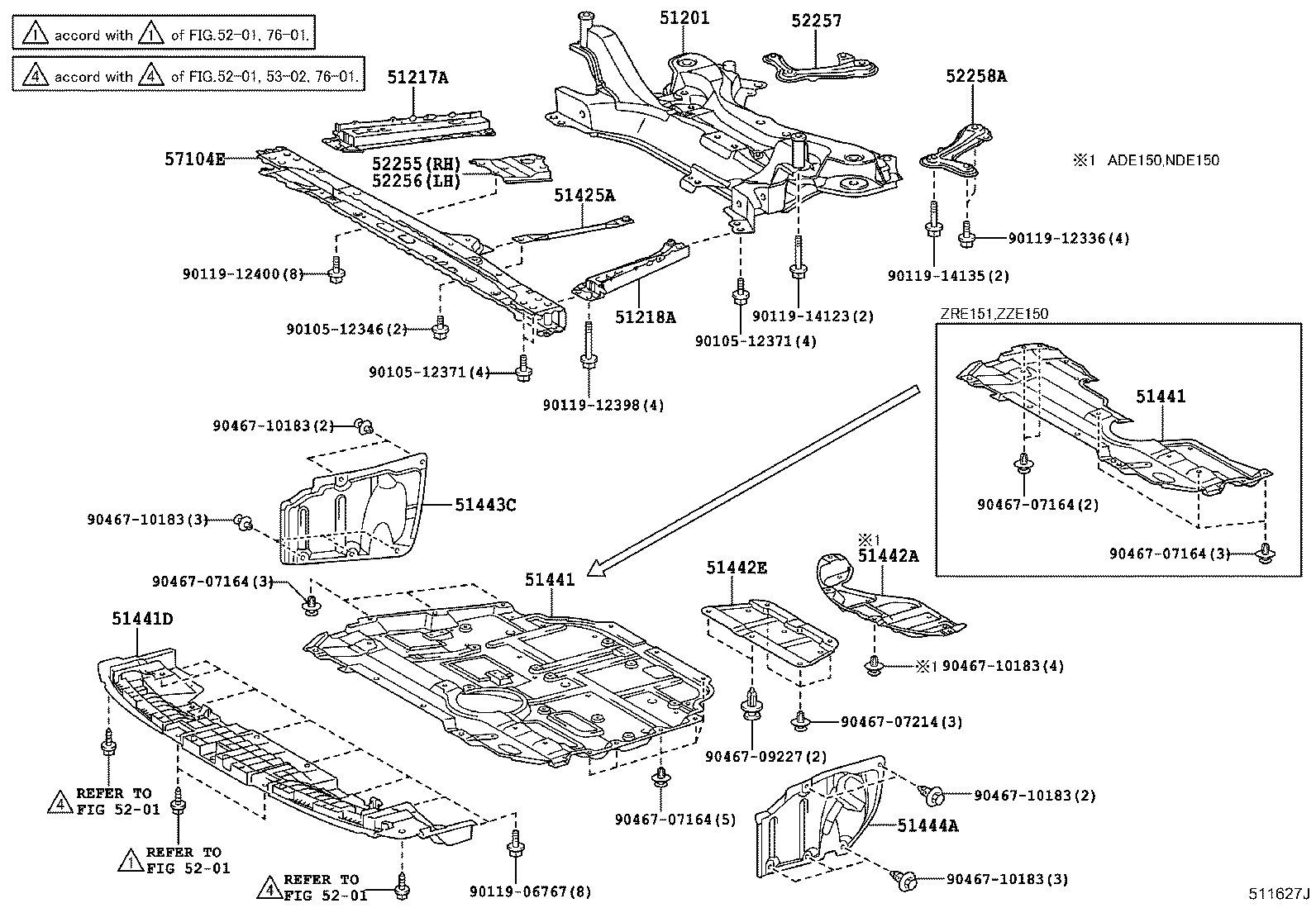

(0809- )NRE150 ; (0812- )NDE150,ZRE15# ; (0901- )ADE150
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-12441 |
ADE150 |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-12010 |
ADE150 |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-12010 |
ADE150 |
1 | ||
| 51425A - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER | ||||
| 51425-12060 |
ADE150 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-12070 |
ADE150 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-12070 |
ADE150 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 52618-12010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
1 | ||
| 51442A - COVER, ENGINE UNDER, FRONT NO.3 | ||||
| 51442-12210 |
ADE150 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12270 |
ADE150 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-12080 |
ADE150 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-12050 |
ADE150 |
1 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-12010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-12010 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-12011 |
ADE150 |
1 | ||
| 52257-12010 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-12011 |
ADE150 |
1 | ||
| 52258-12010 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12270 |
ADE150 |
1 | ||
| Common parts | ||||
| 90105-12346 | ||||
| 90105-12371 | ||||
| 90119-06767 | ||||
| 90119-12336 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90119-14123 | ||||
| 90119-14135 | ||||
| 90467-07164 | ||||
| 90467-07214 | ||||
| 90467-09227 | ||||
| 90467-10183 | ||||
| Linked diagrams | ||||
| 5201 | ||||
