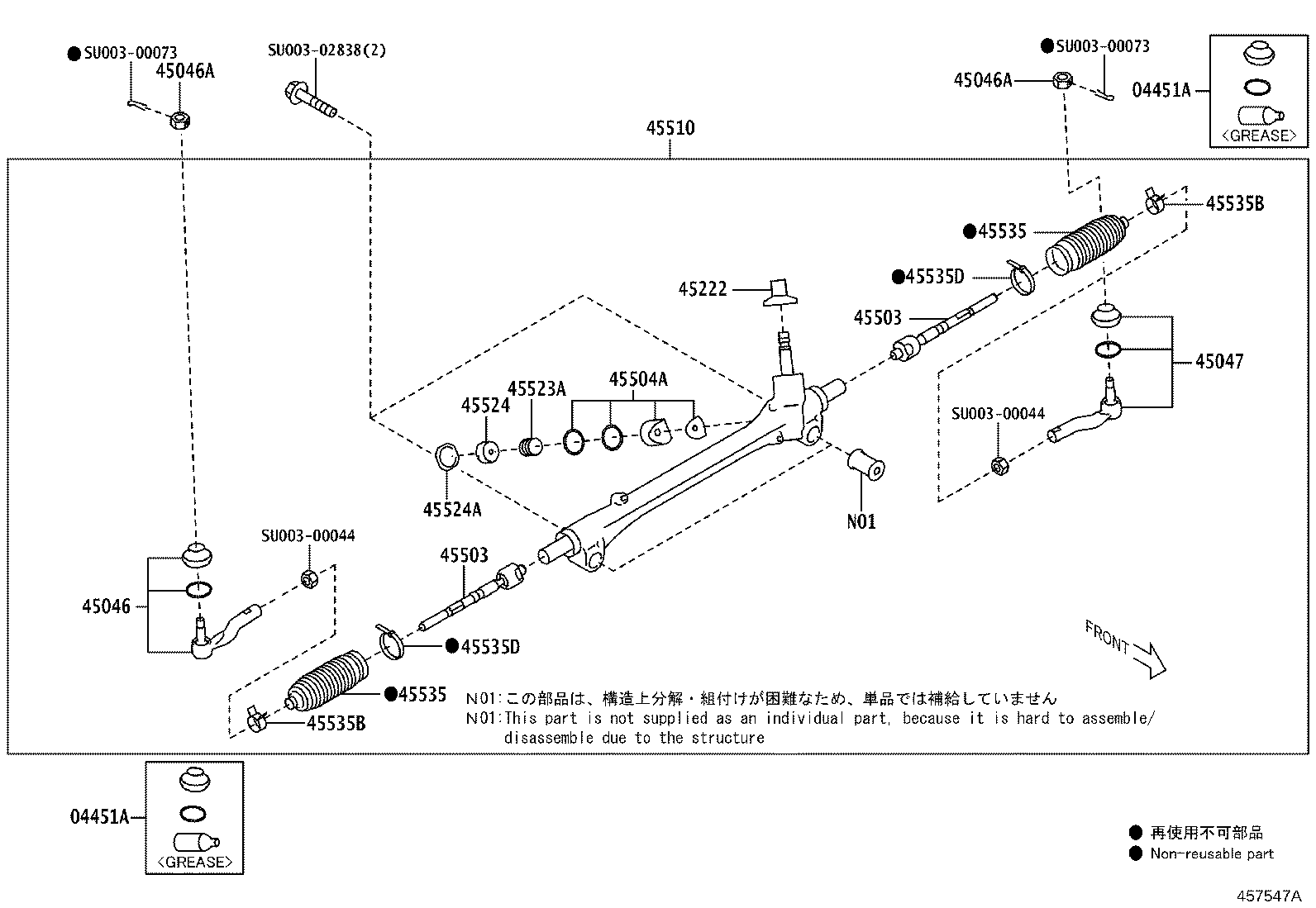

Toyota 86 ZN6EL FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
04451A - REPAIR KIT, TIE ROD END
SU003-04597	ZN6	08/2016 - 09/2017	2
04451A - REPAIR KIT, TIE ROD END
SU003-04597	ZN6	08/2016 - 09/2017	2
45046 - END SUB-ASSY, TIE ROD, RH
SU003-00833	ZN6	08/2016 - 09/2017	1
45046A - NUT, CASTLE(FOR TIE ROD END)
SU003-00047	ZN6	08/2016 - 09/2017	2
45046A - NUT, CASTLE(FOR TIE ROD END)
SU003-00047	ZN6	08/2016 - 09/2017	2
45047 - END SUB-ASSY, TIE ROD, LH
SU003-00834	ZN6	08/2016 - 09/2017	1
45222 - COVER, STEERING GEAR DUST
SU003-00830	ZN6	08/2016 - 09/2017	1
45503 - END SUB-ASSY, STEERING RACK
SU003-00832	ZN6	08/2016 - 09/2017	2
45503 - END SUB-ASSY, STEERING RACK
SU003-00832	ZN6	08/2016 - 09/2017	2
45504A - GUIDE SUB-ASSY, RACK
SU003-00828	ZN6	08/2016 - 09/2017	1
45510 - GEAR ASSY, STEERING
SU003-00841	ZN6..LHD	08/2016 - 09/2017	1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
SU003-00827	ZN6	08/2016 - 09/2017	1
45524 - CAP, STEERING RACK GUIDE SPRING
SU003-00829	ZN6	08/2016 - 09/2017	1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
SU003-00839	ZN6	08/2016 - 09/2017	1
45535 - BOOT, STEERING RACK, NO.1
SU003-00831	ZN6	08/2016 - 09/2017	2
45535 - BOOT, STEERING RACK, NO.1
SU003-00831	ZN6	08/2016 - 09/2017	2
45535B - CLIP(FOR STEERING RACK BOOT)
SU003-00825	ZN6	08/2016 - 09/2017	2
45535B - CLIP(FOR STEERING RACK BOOT)
SU003-00825	ZN6	08/2016 - 09/2017	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
SU003-00826	ZN6	08/2016 - 09/2017	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
SU003-00826	ZN6	08/2016 - 09/2017	2
Common parts
SU003-00044
SU003-00073
SU003-02838

ZN6EL-B8 (2016)
