VZN185L-GKPZKA (1995)

Toyota 4runner

Production Nov 1995 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-9807) ; (9807- )SR5B,SR5V

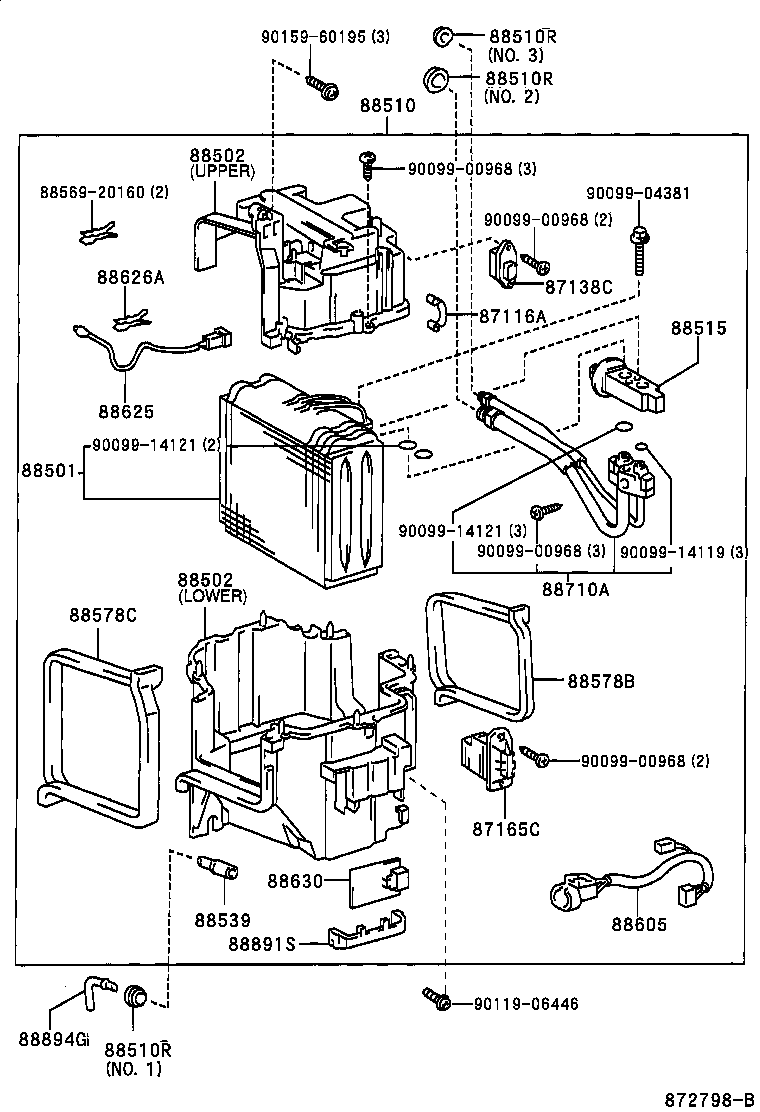

Click highlighted areas on diagram

diagram 87116A 87138C 88501 88502 88502 88510 88510R 88510R 88510R 88515 88539 8856920160 88578B 88578C 88578V 88605 88625 88626A 88650 88710A 88891S 88894G 9009900968 9009900968 9009900968 9009904381 9009914119 9009914121 9009914121 9011906446 9015960195
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

RZN18#,VZN18#

 3
87138C - RESISTOR, BLOWER
87138-35050

RZN18#,VZN18#

 1
87138-35090

VZN18#..LULI

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35050

RZN18#,VZN18#

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-35030

RZN18#,VZN18#

UPPER

 1
88502-35120

VZN18#..LULI

UPPER

 1
88502-35130

VZN18#..LULI

LOWER

 1
88502-35040

RZN18#,VZN18#

LOWER

 1
88502-35140

VZN18#

UPPER

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-35030

RZN18#,VZN18#

UPPER

 1
88502-35120

VZN18#..LULI

UPPER

 1
88502-35130

VZN18#..LULI

LOWER

 1
88502-35040

RZN18#,VZN18#

LOWER

 1
88502-35140

VZN18#

UPPER

 1
88510 - UNIT ASSY, COOLER
88510-35740

VZN18#..LULI

 1
88510-35870

VZN18#..LULI

 1
88510-35580

RZN18#,VZN18#

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-21007

RZN18#,VZN18#

NO.2

 1
90480-26027

RZN18#,VZN18#

NO.2

 1
90480-15033

RZN18#,VZN18#

NO.3

 1
90480-36019

RZN18#,VZN18#

NO.3

 1
90480-26022

RZN18#,VZN18#

NO.1

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-21007

RZN18#,VZN18#

NO.2

 1
90480-26027

RZN18#,VZN18#

NO.2

 1
90480-15033

RZN18#,VZN18#

NO.3

 1
90480-36019

RZN18#,VZN18#

NO.3

 1
90480-26022

RZN18#,VZN18#

NO.1

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-21007

RZN18#,VZN18#

NO.2

 1
90480-26027

RZN18#,VZN18#

NO.2

 1
90480-15033

RZN18#,VZN18#

NO.3

 1
90480-36019

RZN18#,VZN18#

NO.3

 1
90480-26022

RZN18#,VZN18#

NO.1

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

RZN18#,VZN18#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89113

RZN18#,VZN18#

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-35060

RZN18#,VZN18#

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-35050

RZN18#,VZN18#

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-35070

RZN18#,VZN18#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-35220

RZN18#,VZN18#

 1
88605-35290

VZN18#..LULI

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A090

RZN18#,VZN18#

 1
88626A - HOLDER, THERMISTOR
88626-28010

RZN18#,VZN18#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-35060

RZN18#,VZN18#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-35290

RZN18#,VZN18#

 1
88710-35380

RZN18#,VZN18#

 1
88891S - COVER, COOLER, NO.1
88891-35010

RZN18#,VZN18#

 1
88894G - CONNECTOR, DRAIN HOSE
88894-35080

VZN18#

 1
Common parts
88569-20160
90099-00968
90099-04381
90099-14119
90099-14121
90119-06446
90159-60195

(9807- )LULI
