VZN185L-GKPGKA (1995)

Toyota 4runner

Production Nov 1995 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)VZN18#

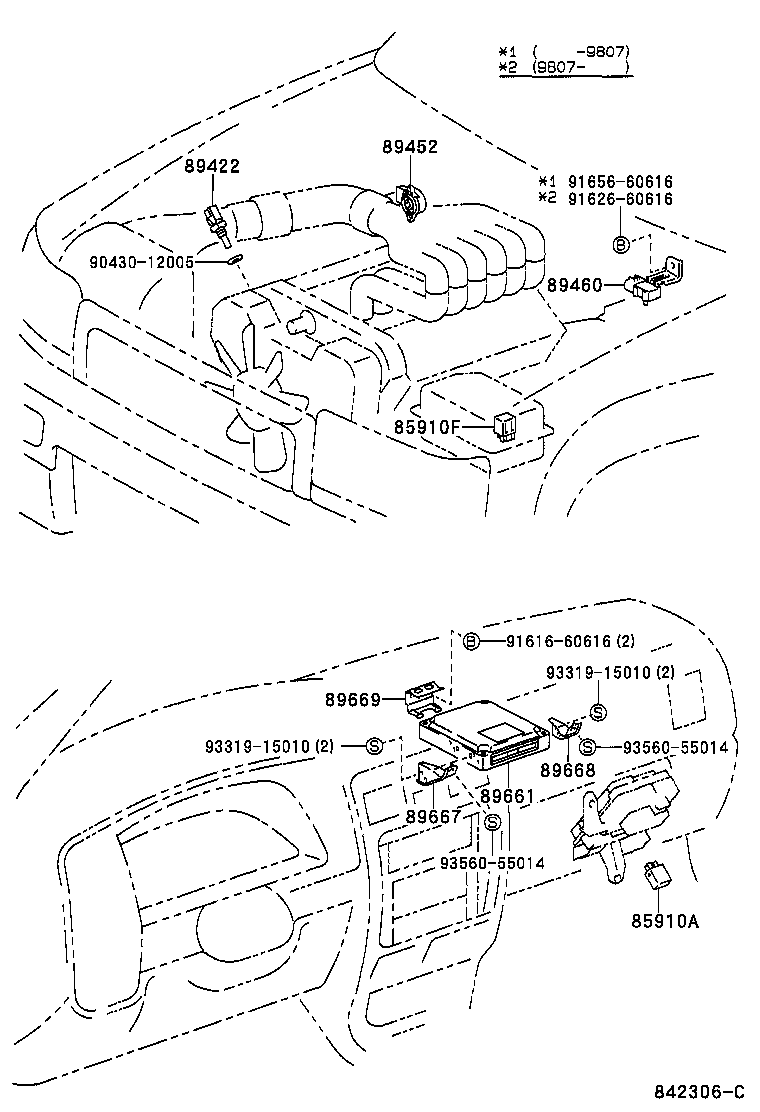

Click highlighted areas on diagram

diagram 85910A 85910F 89422 89452 89460 89661 89667 89668 89669 9043012005 9161660616 9162660616 9165660616 9331915010 9331915010 9356055014 9356055014
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

RZN18#,VZN18#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

RZN18#,VZN18#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

RZN18#,VZN18#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-35020

RZN18#,VZN18#

 1
89452-35020

VZN18#

 1
89460 - SENSOR ASSY, VAPOR PRESSURE
89460-35010

RZN18#,VZN18#

 1
89460-35030

RZN18#,VZN18#

 1
89460-35030

RZN18#,VZN18#

PART NUMBER LABEL=89460-35030

 1
89460-0W070

RZN18#,VZN18#

 1
89461-35010

VZN18#

 1
89460-0W070

RZN18#,VZN18#

PART NUMBER LABEL=89460-0W070

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3D320

VZN185..4FC

 1
89661-3D321

VZN185..4FC

 1
89661-3D150

VZN185..4FC

 1
89661-3D370

VZN185..4FC

 1
89661-3D600

VZN185..4FC

CALIFORNIA SPEC

 1
89661-3D371

VZN185..4FC

 1
89661-3D372

VZN185..4FC

 1
89661-3D570

VZN185..4FC

 1
89666-35170

VZN185..4FC

CALIFORNIA SPEC

 1
89661-3D571

VZN185..4FC

 1
89666-35140

VZN185..4FC

 1
89666-35420

VZN185

 1
89666-35591

VZN185

 1
89666-35141

VZN185..4FC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-35070

RZN18#,VZN18#

 1
89667-35070

VZN18#

 1
89667-35120

VZN18#

 1
89667-35080

RZN18#,VZN18#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35100

VZN18#

 1
89668-35120

RZN18#,VZN18#

 1
89668-35180

VZN18#

 1
89668-35100

RZN18#,VZN18#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35050

RZN18#,VZN18#

 1
89669-35050

VZN18#

 1
89669-35060

RZN18#,VZN18#

 1
89669-35090

VZN18#

 1
Common parts
90430-12005
91616-60616
91626-60616
91656-60616
93319-15010
93560-55014

(0008- )

Click highlighted areas on diagram

diagram 85910A 85910F 89422 89460 89661 89667 89668 89669 9043012005 9161660616 9331915010 9331915010 9356055014 9356055014
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

RZN18#,VZN18#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

RZN18#,VZN18#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

RZN18#,VZN18#

 1
89460 - SENSOR ASSY, VAPOR PRESSURE
89460-35010

RZN18#,VZN18#

 1
89460-35030

RZN18#,VZN18#

 1
89460-35030

RZN18#,VZN18#

PART NUMBER LABEL=89460-35030

 1
89460-0W070

RZN18#,VZN18#

 1
89461-35010

VZN18#

 1
89460-0W070

RZN18#,VZN18#

PART NUMBER LABEL=89460-0W070

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3D320

VZN185..4FC

 1
89661-3D321

VZN185..4FC

 1
89661-3D150

VZN185..4FC

 1
89661-3D370

VZN185..4FC

 1
89661-3D600

VZN185..4FC

CALIFORNIA SPEC

 1
89661-3D371

VZN185..4FC

 1
89661-3D372

VZN185..4FC

 1
89661-3D570

VZN185..4FC

 1
89666-35170

VZN185..4FC

CALIFORNIA SPEC

 1
89661-3D571

VZN185..4FC

 1
89666-35140

VZN185..4FC

 1
89666-35420

VZN185

 1
89666-35591

VZN185

 1
89666-35141

VZN185..4FC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-35070

RZN18#,VZN18#

 1
89667-35070

VZN18#

 1
89667-35120

VZN18#

 1
89667-35080

RZN18#,VZN18#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35100

VZN18#

 1
89668-35120

RZN18#,VZN18#

 1
89668-35180

VZN18#

 1
89668-35100

RZN18#,VZN18#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35050

RZN18#,VZN18#

 1
89669-35050

VZN18#

 1
89669-35060

RZN18#,VZN18#

 1
89669-35090

VZN18#

 1
Common parts
90430-12005
91616-60616
93319-15010
93560-55014
