VZN180L-GKPSKA (2000)

Toyota 4runner

Production Aug 2000 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

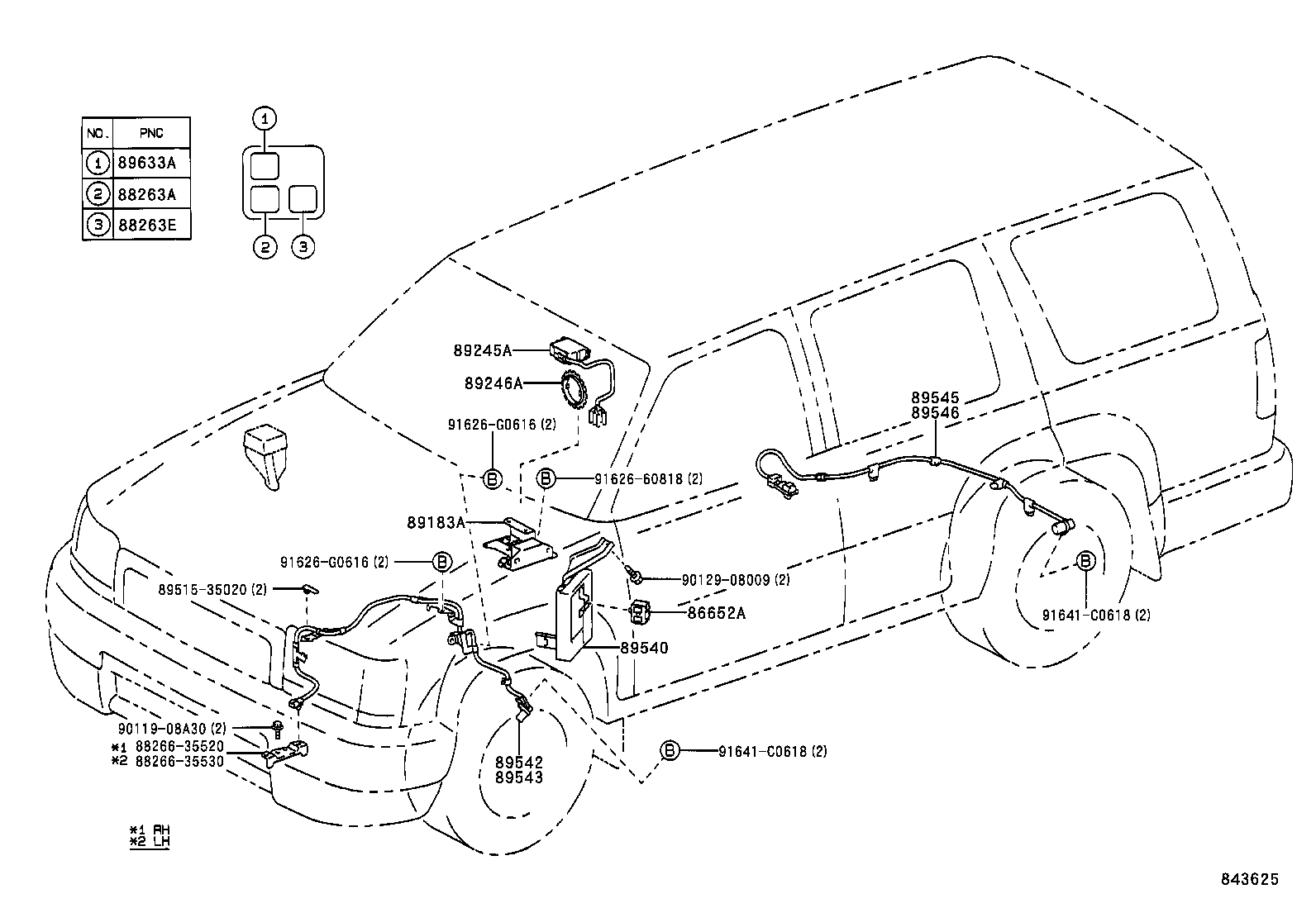

Click highlighted areas on diagram

diagram 86652A 88263A 88263E 8826635520 8826635530 89183A 89245A 89246A 8951535020 89540 89542 89543 89545 89546 89633A 9011908A30 9012908009 9162660818 91626G0616 91626G0616 91641C0618 91641C0618
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-51010

VZN18#

 1
88263A - RELAY, SKID CONTROL
88263-12070

RZN18#,VZN18#

 1
88263-24020

VZN18#

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

VZN18#

 1
89183A - SENSOR, YAWRATE
89180-35010

VZN18#

 1
89245A - SENSOR, STEERING
89245-35010

VZN18#

 1
89246A - DISC, SENSOR STEERING
89246-50020

VZN18#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-35090

RZN180,VZN180

 1
89540-35260

VZN18#..SR5B,SR5V

 1
89540-35270

VZN18#..SR5B,SR5V

W(265/70R16 TIRE)

 1
89542 - SENSOR, SPEED, FRONT RH
89542-35050

RZN18#,VZN18#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-35050

RZN18#,VZN18#

 1
89545 - SENSOR, SPEED, REAR RH
89545-35030

RZN18#,VZN18#

 1
89546 - SENSOR, SPEED, REAR LH
89546-35030

RZN18#,VZN18#

 1
89633A - RELAY, TRACTION CONTROL OR VSC
89633-24010

VZN18#

 1
Common parts
88266-35520
88266-35530
89515-35020
90119-08A30
90129-08009
91626-60818
91626-G0616
91641-C0618
