VZN180L-GKPSKA (2000)

Toyota 4runner

Production Aug 2000 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 7(9511- )

Click highlighted areas on diagram

ROOF,FLOOR & DOOR WIRE

diagram 4101 82127A 82151 82152 82153 82153 82161 82162 82164 82165 82167 82168 82171 82184 82185 8281935110 82824G 9011906390 9017906161 9164580818
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-35430

VZN18#..SR5B

 1
82151-35390

VZN18#..SR5B

 1
82152 - WIRE, FRONT DOOR, LH
82152-35330

VZN18#..SR5B

 1
82152-35300

VZN18#..SR5B

 1
82153 - WIRE, REAR DOOR, NO.1
82153-35190

VZN18#..SR5B

 2
82153 - WIRE, REAR DOOR, NO.1
82153-35190

VZN18#..SR5B

 2
82161 - WIRE, FLOOR
82161-35050

RZN18#,VZN18#..SR5B,SR5V

 1
82161-35060

RZN18#,VZN18#..SR5B,SR5V

W(REAR HEATER)

 1
82161-35320

VZN18#..SR5B,SR5V

W(REAR HEATER)

 1
82161-35310

VZN18#..SR5B,SR5V

 1
82162 - WIRE, FLOOR, NO.2
82162-35350

VZN18#..SR5B

 1
82164 - WIRE, FRAME
82164-3D870

VZN18#

 1
82164-35720

RZN180,VZN18#

 1
82165 - WIRE, FRAME, NO.2
82165-35110

VZN18#

 1
82171 - WIRE, ROOF, NO.1
82171-35300

VZN18#

W(MOON ROOF)

 1
82171-35240

VZN18#

 1
82184 - WIRE, BACK DOOR, NO.1
82184-35090

RZN18#,VZN18#

 1
82185 - WIRE, BACK DOOR, NO.2
82185-35030

VZN18#

 1
Common parts
82819-35110
90119-06390
90179-06161
91645-80818
Linked diagrams
4101

ILLUST NO. 2 OF 7(9511- )VZN18#

Click highlighted areas on diagram

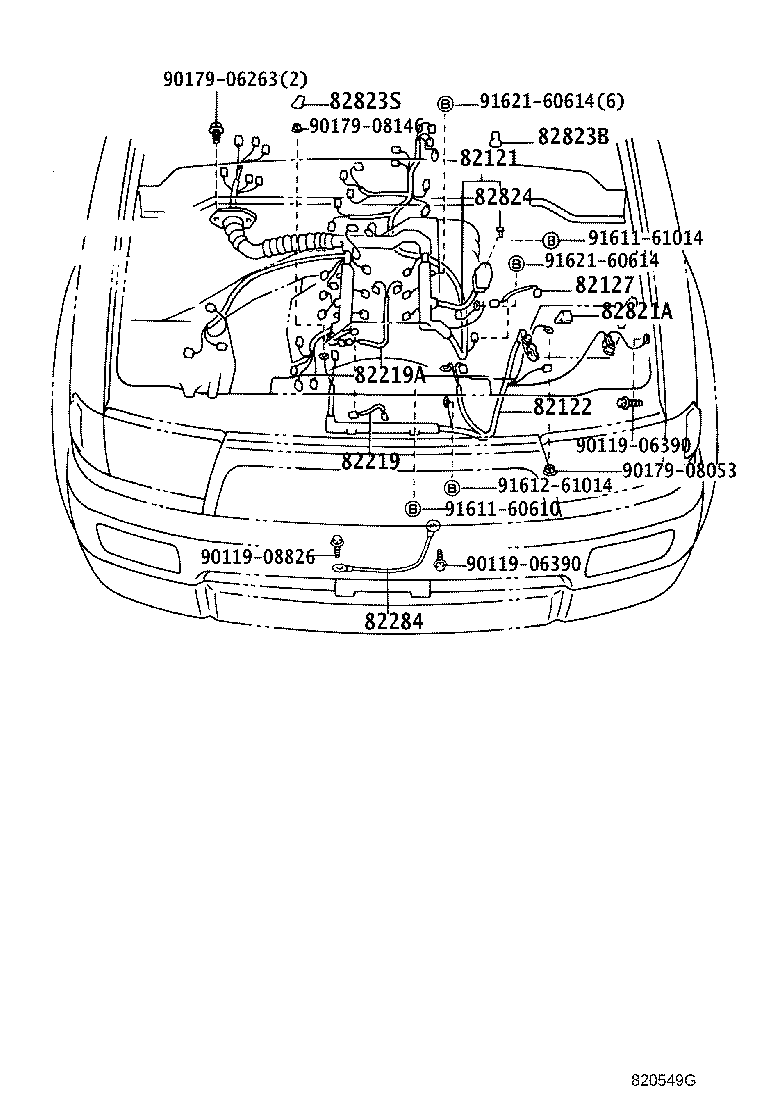

ENGINE WIRE

diagram 82121 82122 82127 82219 82219A 82284 82821A 82823B 82823S 82824 9011906390 9011906390 9011908826 9017906263 9017908053 9017908146 9161160610 9161161014 9161261014 9162160614 9162160614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-3D230

VZN180

 1
82121-3N030

VZN180

 1
82122 - WIRE, ENGINE, NO.2
82122-35450

VZN18#

 1
82219 - WIRE, THERMO SENSOR
82219-34020

VZN18#

 1
82219A - WIRE, SENSOR
82219-34010

VZN18#

 1
82821A - COVER, CONNECTOR
82821-35020

VZN185;RZN18#,VZN180..SR5B,SR5V

 1
82823S - CAP, STARTER TERMINAL
82823-22050

VZN18#

 1
82824 - CONNECTOR, WIRING HARNESS
82824-24010

RZN180,VZN18#

 1
Common parts
90119-06390
90119-08826
90179-06263
90179-08053
90179-08146
91611-60610
91611-61014
91612-61014
91621-60614

ILLUST NO. 3 OF 7(9511- )

Click highlighted areas on diagram

COWL WIRE

diagram 82131 82666A 8281735450 8281735630 82824D 82824D 82824E 82824F 82824F 82824K 8401 8401 8401 8401 8401 8401 9011906390 9011906390 9011906390 9011906390 9015950304 9163360625 9163360625 9356015014
Part # Description Qty Price
82131 - WIRE, COWL
82148-35420

VZN180..SR5B

 1
82148-35440

VZN180..SR5B

W(DAY TIME RUNNING LIGHT SYSTEM)

 1
82824D - CONNECTOR, WIRING HARNESS
82824-24010

RZN18#,VZN18#

NO.1

 1
82824-12210

VZN18#

 4
82824D - CONNECTOR, WIRING HARNESS
82824-24010

RZN18#,VZN18#

NO.1

 1
82824-12210

VZN18#

 4
82824E - CONNECTOR, WIRING HARNESS
82824-20110

VZN18#

 2
82824F - CONNECTOR, WIRING HARNESS
82824-20130

VZN18#

 4
82824F - CONNECTOR, WIRING HARNESS
82824-20130

VZN18#

 4
82824K - CONNECTOR, WIRING HARNESS
82824-12210

VZN18#

NO.1

 4
82824-20110

VZN18#

NO.2

 2
82824-20130

VZN18#

 4
Common parts
82817-35450
82817-35630
90119-06390
90159-50304
91633-60625
93560-15014
Linked diagrams
8401

ILLUST NO. 5 OF 7(9511- )

Click highlighted areas on diagram

CLAMP

diagram 8271034010 827111B010 827111E350 8271134310 8271135420 8271522070 8271534100 8271534120 8271534130 8271534140 8271534150 8271534160 8271534170 8271534190 8271534210 8271534240 8271534250 8271534260 8271534300 8271534310 8271534340 8271534390 8271535230 8271535320 8271535430 8271535480 8271535490 8271535510 8271535540 8271535600 8271535630 8271535710 8271535730 8271535740 8271535770 8271535800 8271535810 8271535830 8271535870 827153D270 827153D370 8271589118 8271589119 9011908A21 9011908A21 9011910550 9011910550 9161160612 9161160612 9161160612 9161160612 9161160612 9161160614 9161160812 9161161014 9162160610 9162160612 9162160614 9162160614 9162160814 91641C0612 91641C0612 91641C0612 91641C0612 91641C0814 9165141016
Part # Description Qty Price
Common parts
82710-34010
82711-1B010
82711-1E350
82711-34310
82711-35420
82715-22070
82715-34100
82715-34120
82715-34130
82715-34140
82715-34150
82715-34160
82715-34170
82715-34190
82715-34210
82715-34240
82715-34250
82715-34260
82715-34300
82715-34310
82715-34340
82715-34390
82715-35230
82715-35320
82715-35430
82715-35480
82715-35490
82715-35510
82715-35540
82715-35600
82715-35630
82715-35710
82715-35730
82715-35740
82715-35770
82715-35800
82715-35810
82715-35830
82715-35870
82715-3D270
82715-3D370
82715-89118
82715-89119
90119-08A21
90119-10550
91611-60612
91611-60614
91611-60812
91611-61014
91621-60610
91621-60612
91621-60614
91621-60814
91641-C0612
91641-C0814
91651-41016

ILLUST NO. 5 OF 7(9511- )

Click highlighted areas on diagram

CLAMP

diagram 8271112200 8271534280 8271534510 827153D450 8272935040 9011908A73 9161161014 9356015014
Part # Description Qty Price
Common parts
82711-12200
82715-34280
82715-34510
82715-3D450
82729-35040
90119-08A73
91611-61014
93560-15014

ILLUST NO. 5 OF 7(9511- )

Click highlighted areas on diagram

CLAMP

diagram 827111A750 827111A840 827111E340 827111E350 827112A720 8271130380 8271135230 8271135360 8271135470 8271135520 827113A540 827113H630 8271195711 8271534270 8271535290 8271535350 8271535360 8271535370 8271535500 8271535520 8271535530 8281735420 8281735430 8281735450 9011908A30 9011908A30 9161160610 9161160614 9161660616 9162160610
Part # Description Qty Price
Common parts
82711-1A750
82711-1A840
82711-1E340
82711-1E350
82711-2A720
82711-30380
82711-35230
82711-35360
82711-35470
82711-35520
82711-3A540
82711-3H630
82711-95711
82715-34270
82715-35290
82715-35350
82715-35360
82715-35370
82715-35500
82715-35520
82715-35530
82817-35420
82817-35430
82817-35450
90119-08A30
91611-60610
91611-60614
91616-60616
91621-60610

ILLUST NO. 6 OF 7(9511- )

Click highlighted areas on diagram

DIODES

diagram 82345 82345 82345 82345
Part # Description Qty Price
82345 - DIODE
82345-22051

VZN18#..SR5B

TYPE C:REFER TO ILLUSTRATION

 1
82345 - DIODE
82345-22051

VZN18#..SR5B

TYPE C:REFER TO ILLUSTRATION

 1
82345 - DIODE
82345-22051

VZN18#..SR5B

TYPE C:REFER TO ILLUSTRATION

 1
82345 - DIODE
82345-22051

VZN18#..SR5B

TYPE C:REFER TO ILLUSTRATION

 1

ILLUST NO. 1 OF 7(0008- )

Click highlighted areas on diagram

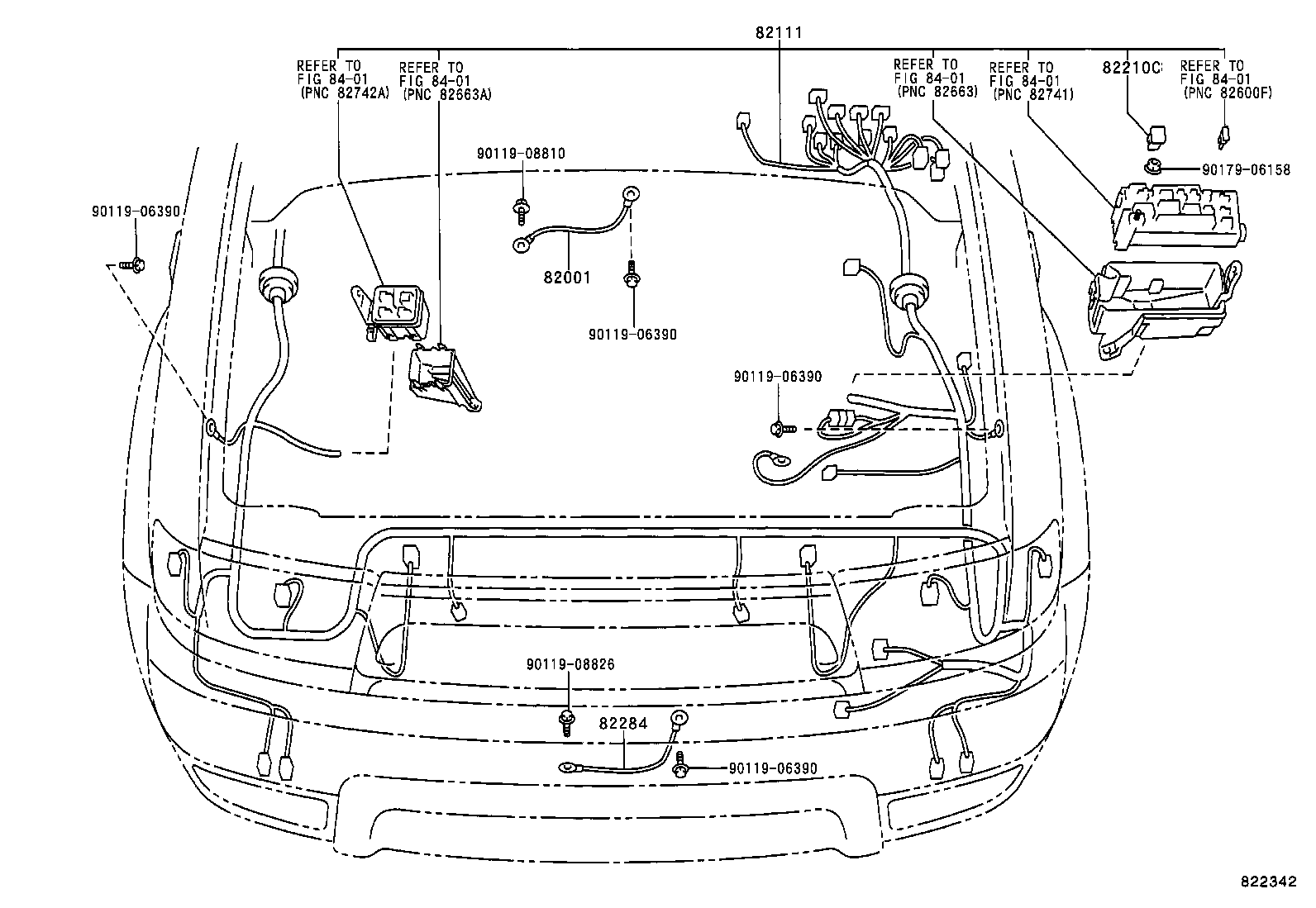

ENGINE ROOM WIRE

diagram 82001 82111 82210C 82284 8401 8401 8401 8401 8401 9011906390 9011906390 9011906390 9011906390 9011908810 9011908826 9017906158
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07381

VZN18#

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-3D640

VZN180

 1
82115-35180

VZN18#..SR5B

 1
82115-35190

VZN180..SR5B

W(DAY TIME RUNNING LIGHT SYSTEM)

 1
82210C - FUSIBLE LINK
90982-08281

RZN18#,VZN18#

40A,TERM.:FEMALE,GRN,YAZAKI

 1
90982-08282

RZN18#,VZN18#

50A,TERM.:FEMALE,RED,YAZAKI

 1
90982-08246

RZN18#,VZN18#

100A,TERM.:MALE,BLUE

 1
90982-08285

RZN18#,VZN18#

50A,TERM.:FEMALE,RED,TAIHEIYO

 1
90982-08280

VZN18#..SR5B

30A,TERM.:FEMALE,PNK

 1
90982-08281

VZN18#

40A,TERM.:FEMALE,GRN,YAZAKI

 2
90982-08284

RZN18#,VZN18#

40A,TERM.:FEMALE,GRN,TAIHEIYO

 1
90982-08202

RZN18#,VZN18#

60A,TERM.:MALE,YEL

 1
90982-08283

RZN18#,VZN18#

30A,TERM.:FEMALE,PNK,TAIHEIYO

 1
90982-08202

VZN18#

60A,TERM.:MALE,YEL

 2
90982-08284

VZN18#

40A,TERM.:FEMALE,GRN,TAIHEIYO

 2
Common parts
90119-06390
90119-08810
90119-08826
90179-06158
Linked diagrams
8401

ILLUST NO. 7 OF 7(9511- )

Click highlighted areas on diagram

CONNECTOR

diagram 9098010619 9098011003 9098011019 9098011075 9098011149 9098011314 9098011399
Part # Description Qty Price
Common parts
90980-10619
90980-11003
90980-11019
90980-11075
90980-11149
90980-11314
90980-11399
