VZN180L-GKPSKA (2000)

Toyota 4runner

Production Aug 2000 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

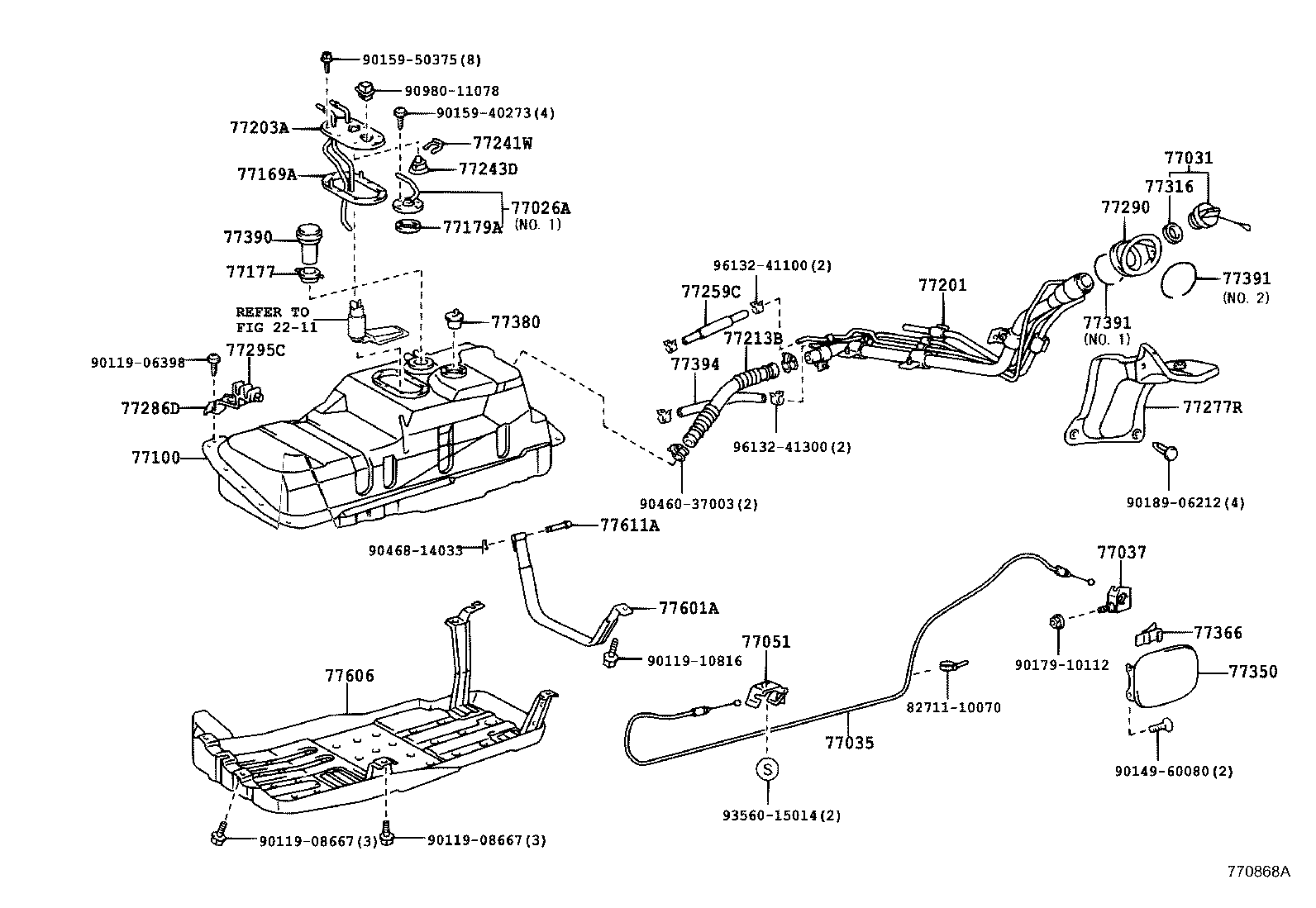

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

diagram 2211 77026A 77031 77035 77037 77051 77100 77169A 77177 77179A 77201 77203A 77213B 77241W 77243D 77259C 77277R 77286D 77290 77295C 77316 77350 77366 77380 77390 77391 77391 77394 77601A 77606 77611A 8271110070 9011906398 9011908667 9011908667 9011910816 9014960080 9015940273 9015950375 9017910112 9018906212 9046037003 9046814033 9098011078 9356015014 9613241100 9613241300
Part # Description Qty Price
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-35120

VZN18#

NO.2:REFER TO ILLUSTRATION

 1
77026-35090

RZN18#,VZN18#

 1
77026-35130

VZN18#

NO.1:REFER TO ILLUSTRATION

 1
77031 - CAP ASSY, FUEL TANK
77300-53010

VZN18#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-35090

RZN18#,VZN18#

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-12050

RZN18#,VZN18#

 1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-35010

RZN18#,VZN18#

 1
77100 - TANK ASSY, FUEL
77001-3D480

VZN18#

 1
77001-3D300

RZN18#,VZN18#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-60010

RZN18#,VZN18#

 1
77177 - GASKET, CHECK VALVE
77177-33010

VZN18#

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

RZN18#,VZN18#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35700

VZN18#

 1
77201-35510

RZN18#,VZN18#

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-35660

VZN18#

 1
77203-35460

RZN18#,VZN18#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35300

RZN18#,VZN18#

L=368

 1
77213-35360

VZN18#

 1
77241W - CLIP, TUBE JOINT
77241-60320

VZN18#

 1
77243D - JOINT, FUEL TUBE, NO.1
77243-35020

VZN18#

 1
77259C - HOSE, FUEL
77259-35330

VZN18#

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-35010

RZN18#,VZN18#

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-35030

RZN18#,VZN18#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-35060

RZN18#,VZN18#

 1
77295C - GROMMET, FUEL TUBE
77295-35140

RZN18#,VZN18#

 2
77295-35260

VZN18#

 2
77316 - GASKET, FUEL TANK CAP
77316-16010

RZN18#,VZN18#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-35040

VZN18#

 1
77350-35030

RZN18#,VZN18#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-35010

RZN18#,VZN18#

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

RZN18#,VZN18#

 1
77390 - VALVE ASSY, FUEL TANK INLET
77390-35010

VZN18#

 1
77391 - RING, FUEL INLET BOX
77391-14020

RZN18#,VZN18#

NO.1

 1
77391-35010

RZN18#,VZN18#

NO.2

 1
77391 - RING, FUEL INLET BOX
77391-14020

RZN18#,VZN18#

NO.1

 1
77391-35010

RZN18#,VZN18#

NO.2

 1
77394 - HOSE, VALVE TO FUEL FILLER PIPE
77394-35010

VZN18#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-35060

RZN18#,VZN18#

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-35010

RZN18#,VZN18#

 1
77606-35050

VZN18#

 1
77611A - PIN (FOR FUEL TANK BAND)
90240-08118

RZN18#,VZN18#

 1
Common parts
82711-10070
90119-06398
90119-08667
90119-10816
90149-60080
90159-40273
90159-50375
90179-10112
90189-06212
90460-37003
90468-14033
90980-11078
93560-15014
96132-41100
96132-41300
Linked diagrams
2211

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

diagram 1708 77019A 77026A 77241A 77249 77249A 77249B 77251B 77252A 77254A 77255D 77256D 77261 77262 77285B 77285C 77285D 77285E 77285F 77285G 77285H 77285J 77295E 77444 77740 77740N 77777 77777A 9017906161 9017906161 9038510029 9038908122 9095904001 91626B0822 91626B0822 9613241100 9613241100 9613241100 9613241300 9613241300
Part # Description Qty Price
77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
77019-35700

VZN18#

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-35120

VZN18#

NO.2:REFER TO ILLUSTRATION

 1
77026-35090

RZN18#,VZN18#

 1
77026-35130

VZN18#

NO.1:REFER TO ILLUSTRATION

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77019-35650

VZN18#

L=140

 1
77249 - HOSE, FUEL EMISSION
77259-53010

VZN18#

 1
77249A - HOSE, FUEL EMISSION
95337-06020

VZN18#

 1
77249B - HOSE, FUEL
95333-08020

VZN18#

 1
77251B - TUBE, FUEL MAIN
77251-3D140

VZN18#

 1
77251-3D350

VZN18#

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-35350

VZN18#

 1
77252-35370

VZN18#

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77249-35130

VZN18#

 1
77255D - TUBE, FUEL RETURN
77255-35740

RZN18#,VZN18#

 1
77255-35840

VZN18#

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
77279-35120

VZN18#

 1
23273-75050

RZN18#,VZN18#

 1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-35561

VZN18#

 1
77262 - TUBE, FUEL EMISSION, NO.2
77262-35070

VZN18#

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35370

VZN18#

 1
77285-35230

RZN18#,VZN18#

 1
77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN)
77285-35380

VZN18#

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35390

VZN18#

 1
77285-35280

RZN18#,VZN18#

 1
77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35260

RZN18#,VZN18#

 1
77285-35400

VZN18#

 1
77285F - CLAMP, FUEL TUBE, NO.1
77285-35290

RZN18#,VZN18#

 1
77285-35410

VZN18#

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-35420

VZN18#

 2
77285-35300

RZN18#,VZN18#

 1
77285H - CLAMP, FUEL TUBE, NO.1
77285-35430

VZN18#

 1
77285J - CLAMP, FUEL TUBE, NO.1
77285-35440

VZN18#

 1
77295E - GROMMET, FUEL TUBE
77295-35230

VZN18#

 1
77444 - HOSE, FUEL TANK VENT
77404-35010

VZN18#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35390

RZN18#,VZN18#

 1
77740-35481

VZN18#

 1
77740-35482

VZN18#

 1
77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER)
90910-12198

VZN18#

 1
90910-12264

VZN18#

 1
77777 - BRACKET, FUEL TUBE CLAMP
77777-35040

VZN18#

 1
77777A - BRACKET, FUEL TUBE CLAMP (FOR FRONT FUEL MAIN)
77777-35050

VZN18#

 1
Common parts
90179-06161
90385-10029
90389-08122
90959-04001
91626-B0822
96132-41100
96132-41300
Linked diagrams
1708
