VZN180L-GKPSKA (2000)

Toyota 4runner

Production Aug 2000 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )VZN18#

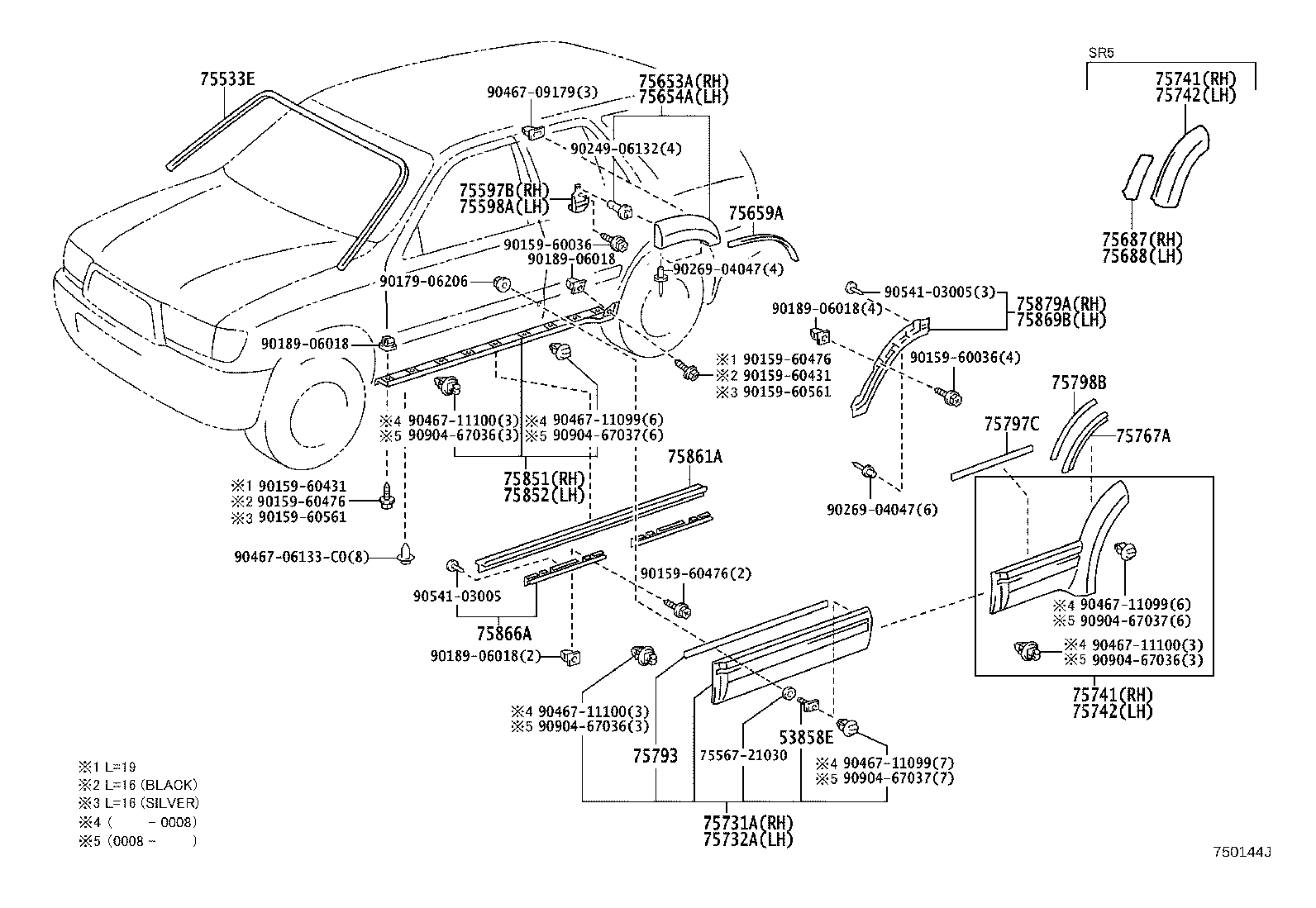

Click highlighted areas on diagram

diagram 53858E 75533E 7556721030 75597B 75598A 75653A 75654A 75659A 75687 75688 75731A 75732A 75741 75741 75742 75742 75767A 75793 75797C 75798B 75851 75852 75861A 75866A 75869B 75879A 9015960036 9015960036 9015960431 9015960431 9015960476 9015960476 9015960476 9015960561 9015960561 9017906206 9018906018 9018906018 9018906018 9018906018 9024906132 9026904047 9026904047 9046706133C0 9046709179 9046711099 9046711099 9046711099 9046711100 9046711100 9046711100 9054103005 9054103005 9090467036 9090467036 9090467036 9090467037 9090467037 9090467037
Part # Description Qty Price
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-35030

RZN18#,VZN18#

 1
Common parts
75567-21030
90159-60036
90159-60431
90159-60476
90159-60561
90179-06206
90189-06018
90249-06132
90269-04047
90467-06133C0
90467-09179
90467-11099
90467-11100
90541-03005
90904-67036
90904-67037

(9511- )RZN180,VZN180

Click highlighted areas on diagram

diagram 75533E
Part # Description Qty Price
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-35030

RZN18#,VZN18#

 1

(9511- )SR5B,SR5V

Click highlighted areas on diagram

diagram 65637A 65638E 75039C 75039D 75039F 75039G 75039H 75049A 75049A 75049B 75049C 75049D 75049D 75533E 75871 75872 75873 75874 9015940187 9015960476 9018904068
Part # Description Qty Price
65637A - LINER, REAR WHEEL HOUSE, RH
65637-35010

RZN185,VZN18#..SR5B,SR5V

 1
65638E - LINER, REAR WHEEL HOUSE, LH
65638-35010

RZN185,VZN18#..SR5B,SR5V

 1
75039C - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.1
75039-35040

RZN185,VZN18#..SR5B,SR5V

 2
75039D - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.1
75039-35050

RZN185,VZN18#..SR5B,SR5V

 4
75039F - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.1
75039-35070

RZN185,VZN18#..SR5B,SR5V

 2
75039G - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.1
75039-35080

RZN185,VZN18#..SR5B,SR5V

 2
75039H - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.1
75039-35060

RZN185,VZN18#..SR5B,SR5V

 2
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-35040

RZN185,VZN18#..SR5B,SR5V

 6
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-35040

RZN185,VZN18#..SR5B,SR5V

 6
75049B - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-35050

RZN185,VZN18#..SR5B,SR5V

 2
75049C - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-35060

RZN185,VZN18#..SR5B,SR5V

 2
75049D - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-35070

RZN185,VZN18#..SR5B,SR5V

 4
75049D - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-35070

RZN185,VZN18#..SR5B,SR5V

 4
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-35030

RZN18#,VZN18#

 1
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75085-35020

RZN185,VZN18#..SR5B,SR5V

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75086-35020

RZN185,VZN18#..SR5B,SR5V

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75087-35020

RZN185,VZN18#..SR5B,SR5V

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75088-35020

RZN185,VZN18#..SR5B,SR5V

 1
Common parts
90159-40187
90159-60476
90189-04068
