VZN180L-GKPSKA (2000)
Toyota 4runner
Production
Aug 2000
-
Aug 2002
Engine
5VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9511- )VZN18#

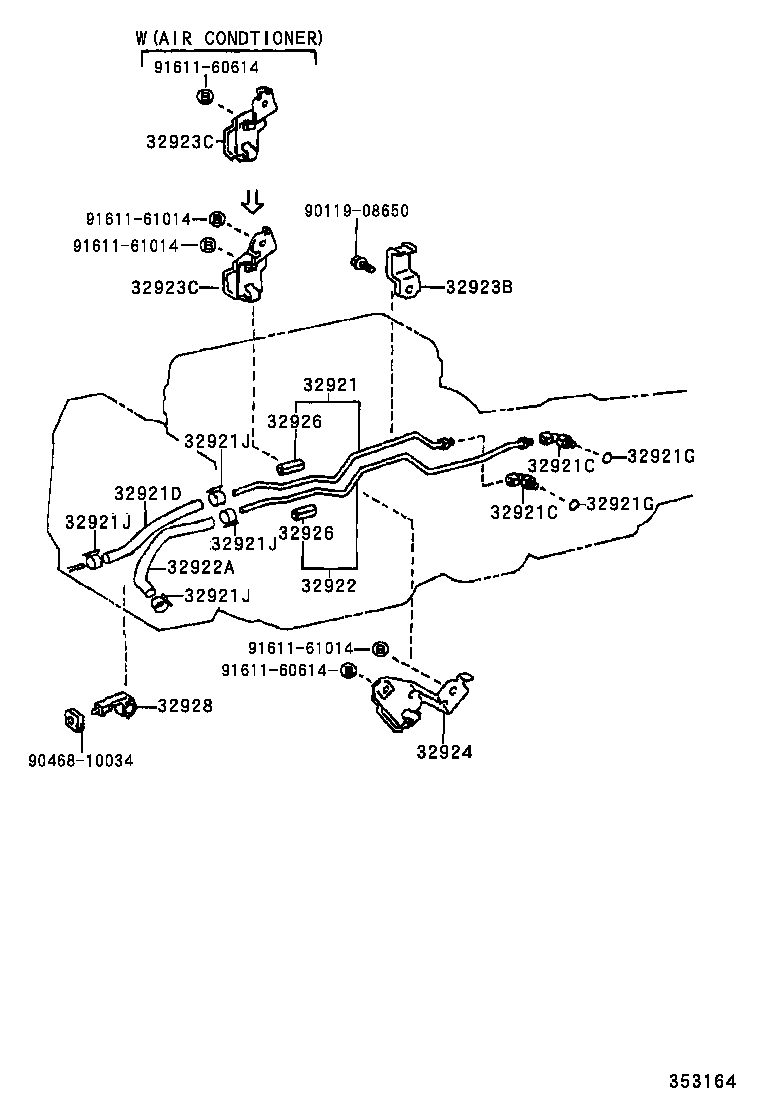

Click highlighted areas on diagram
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-35270 |
VZN18#..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90904-07001 |
RZN18#,VZN18#..4FC OUTLET |
1 | ||
| 90407-16012 |
RZN18#,VZN18#..4FC INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90904-07001 |
RZN18#,VZN18#..4FC OUTLET |
1 | ||
| 90407-16012 |
RZN18#,VZN18#..4FC INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-35260 |
VZN18#..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
RZN18#,VZN18#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
RZN18#,VZN18#..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RZN18#,VZN18#..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RZN18#,VZN18#..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RZN18#,VZN18#..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RZN18#,VZN18#..4FC |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-35300 |
VZN18#..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-35110 |
VZN18#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-24060 |
RZN18#,VZN18#..4FC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32909-35110 |
VZN18#..4FC |
1 | ||
| 32909-35120 |
VZN18#..4FC W(AIR CONDITIONER) |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32909-35110 |
VZN18#..4FC |
1 | ||
| 32909-35120 |
VZN18#..4FC W(AIR CONDITIONER) |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32909-34050 |
VZN18#..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RZN18#,VZN18#..4FC L=35,ID=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RZN18#,VZN18#..4FC L=35,ID=10 |
6 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-35070 |
VZN18#..4FC |
1 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 90468-10034 | ||||
| 91611-60614 | ||||
| 91611-61014 | ||||
