VZN180L-GKPSKA (2000)

Toyota 4runner

Production Aug 2000 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )4FC

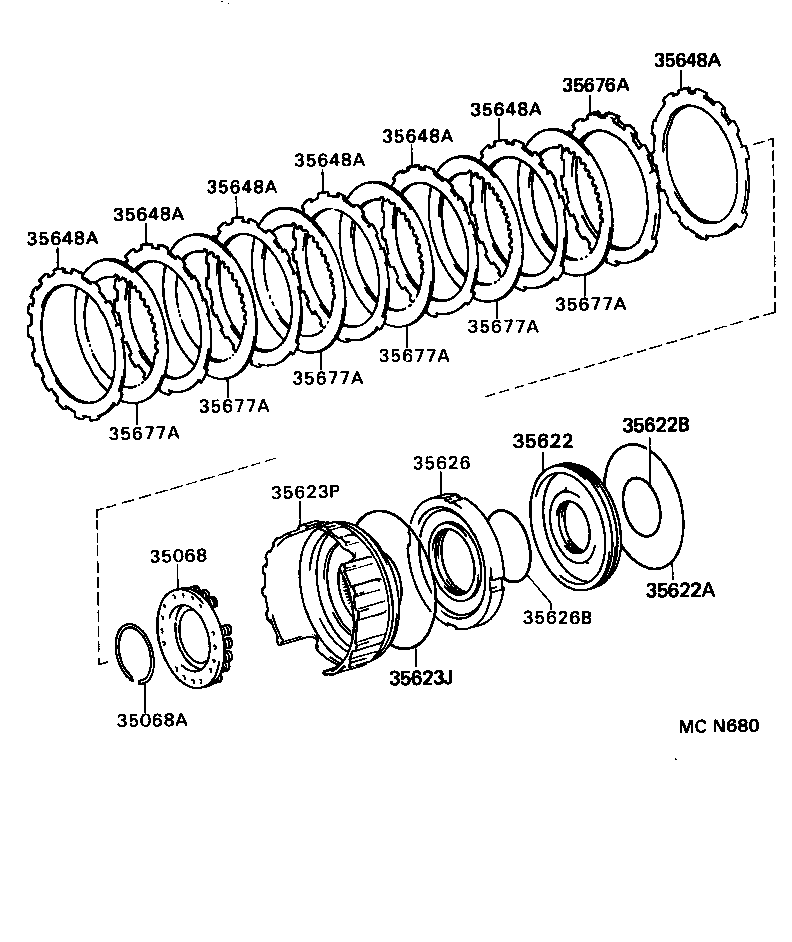

Click highlighted areas on diagram

A340E,A340F

diagram 35068 35068A 35622 35622A 35622B 35623J 35623P 35626 35626B 35648A 35648A 35648A 35648A 35648A 35648A 35648A 35676A 35677A 35677A 35677A 35677A 35677A 35677A
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-30011

RZN18#,VZN18#..4FC

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-52262

RZN18#,VZN18#..4FC

 1
35622 - PISTON, BRAKE, NO.2
35622-30010

RZN18#,VZN18#..4FC

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99193

RZN18#,VZN18#..4FC

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-57188

RZN18#,VZN18#..4FC

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99192

RZN18#,VZN18#..4FC

 1
35623P - PISTON, 1ST & REVERSE BRAKE, NO.2
35623-30012

RZN18#,VZN18#..4FC

 1
35626 - SLEEVE, BRAKE REACTION
35626-30020

RZN18#,VZN18#..4FC

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

RZN18#,VZN18#..4FC

 1
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

RZN180,VZN180..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

RZN180,VZN180..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

RZN180,VZN180..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

RZN180,VZN180..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

RZN180,VZN180..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

RZN180,VZN180..4FC

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-30031

RZN180,VZN180..4FC

 6
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-50010

RZN18#,VZN18#..4FC

T=5.0

 1
35676-50030

RZN18#,VZN18#..4FC

T=4.6

 1
35676-50020

RZN18#,VZN18#..4FC

T=4.8

 1
35676-50060

RZN18#,VZN18#..4FC

T=4.0

 1
35676-50040

RZN18#,VZN18#..4FC

T=4.4

 1
35676-50050

RZN18#,VZN18#..4FC

T=4.2

 1
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30130

RZN18#,VZN18#..4FC

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30130

RZN18#,VZN18#..4FC

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30130

RZN18#,VZN18#..4FC

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30130

RZN18#,VZN18#..4FC

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30130

RZN18#,VZN18#..4FC

 6
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35677-30130

RZN18#,VZN18#..4FC

 6
