VZN180L-GKPSKA (2000)

Toyota 4runner

Production Aug 2000 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

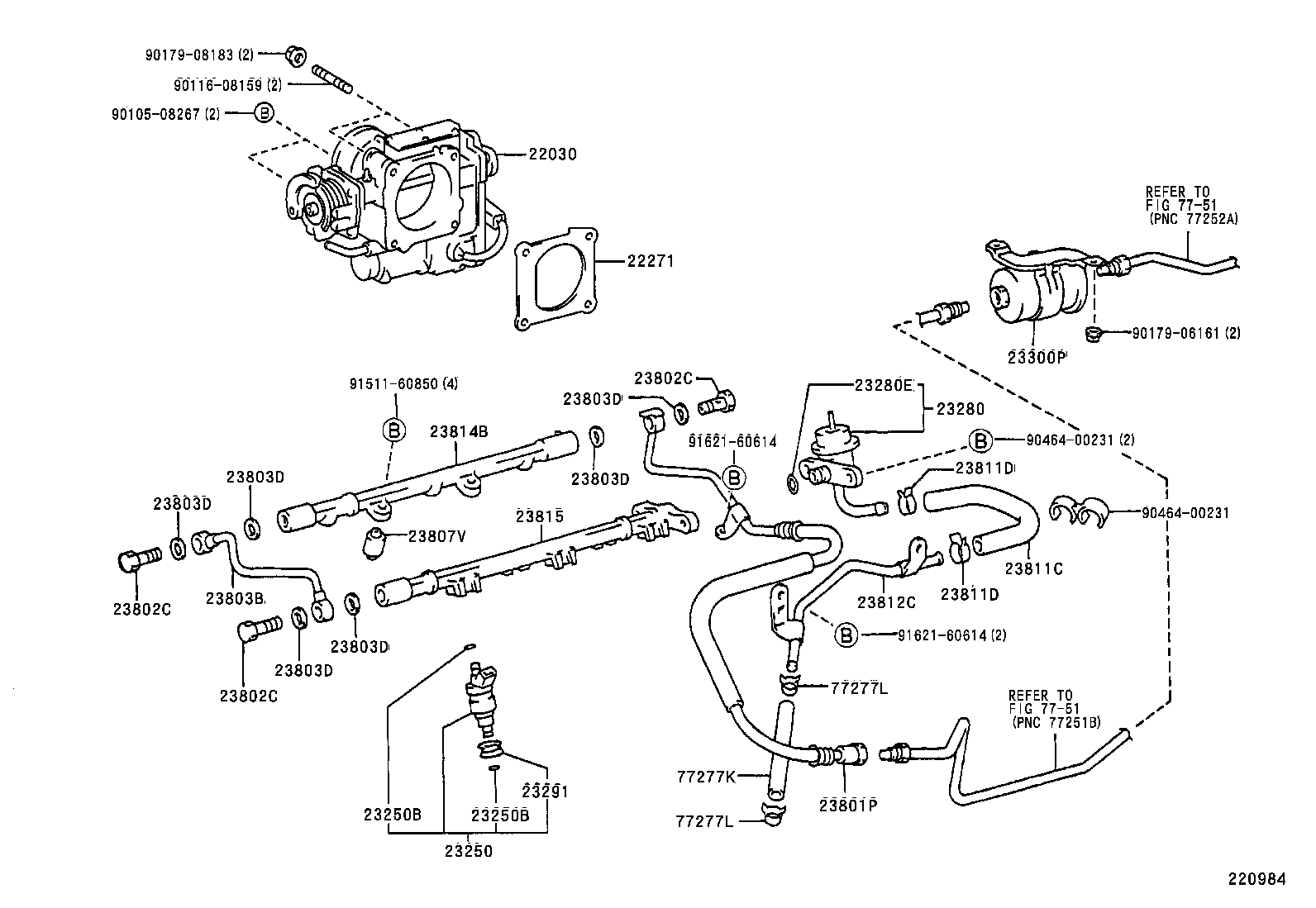

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

diagram 22030 22271 23250 23250B 23250B 23280 23280E 23291 23300P 23801P 23802C 23802C 23802C 23803B 23803D 23803D 23803D 23803D 23803D 23803D 23807V 23811C 23811D 23811D 23812C 23814B 23815 77277K 77277L 77277L 7751 7751 9010508267 9011608159 9017906161 9017908183 9046400231 9046400231 9151160850 9162160614 9162160614
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-62020

5VZFE..VZN18#

 1
22271 - GASKET, THROTTLE BODY
22271-62040

5VZFE..VZN18#

 1
22271-62050

5VZFE..VZN18#

 1
23250 - INJECTOR ASSY, FUEL
23209-62030

5VZFE..VZN18#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

5VZFE..VZN18#

 12
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

5VZFE..VZN18#

 12
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-62030

5VZFE..VZN18#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

5VZFE..VZN18#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-62010

5VZFE..VZN18#

 6
23300P - FILTER, FUEL(FOR EFI)
23300-62030

5VZFE..VZN18#

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-62070

5VZFE..VZN18#

 1
23801-62071

5VZFE..VZN18#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12036

5VZFE..VZN18#

 3
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12036

5VZFE..VZN18#

 3
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12036

5VZFE..VZN18#

 3
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-62010

5VZFE..VZN18#

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN18#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN18#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN18#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN18#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN18#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZN18#

 6
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08020

5VZFE..VZN18#

 4
23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
23273-62010

5VZFE..VZN18#

 1
23811D - CLIP, HOSE(FOR FUEL HOSE)
90467-11065

5VZFE..VZN18#

 2
23811D - CLIP, HOSE(FOR FUEL HOSE)
90467-11065

5VZFE..VZN18#

 2
23812C - PIPE, FUEL, NO.2
23812-62041

5VZFE..VZN18#

 1
23814B - PIPE, FUEL DELIVERY
23814-62050

5VZFE..VZN18#

 1
23815 - PIPE, FUEL DELIVERY, NO.2
23815-62050

5VZFE..VZN18#

 1
77277K - HOSE, FUEL(FOR RETURN HOSE)
23273-62020

VZN18#

 1
77277L - CLIP, HOSE(FOR RETURN HOSE)
96135-41100

VZN18#

 2
77277L - CLIP, HOSE(FOR RETURN HOSE)
96135-41100

VZN18#

 2
Common parts
90105-08267
90116-08159
90179-06161
90179-08183
90464-00231
91511-60850
91621-60614
Linked diagrams
7751

ILLUST NO. 2 OF 2(9511- )5VZFE

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23233 23233B 23233B 23249 7751
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-46090

5VZFE..VZN18#

 1
23217-46090

5VZFE..VZN18#

 1
23220P - PUMP ASSY, FUEL
23221-46010

5VZFE..VZN18#

 1
23221-46010

5VZFE..VZN18#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

5VZFE..VZN18#

 1
23229-16010

5VZFE..VZN18#

 1
23233 - HOSE, FUEL PUMP
23239-11010

5VZFE..VZN18#

 1
23239-11010

5VZFE..VZN18#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

5VZFE..VZN18#

 2
90467-12067

5VZFE..VZN18#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

5VZFE..VZN18#

 2
90467-12067

5VZFE..VZN18#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

5VZFE..VZN18#

 1
23249-74610

5VZFE..VZN18#

 1
Linked diagrams
7751
