RZN180L-GKMSKA (1995)

Toyota 4runner

Production Nov 1995 - Aug 2000
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

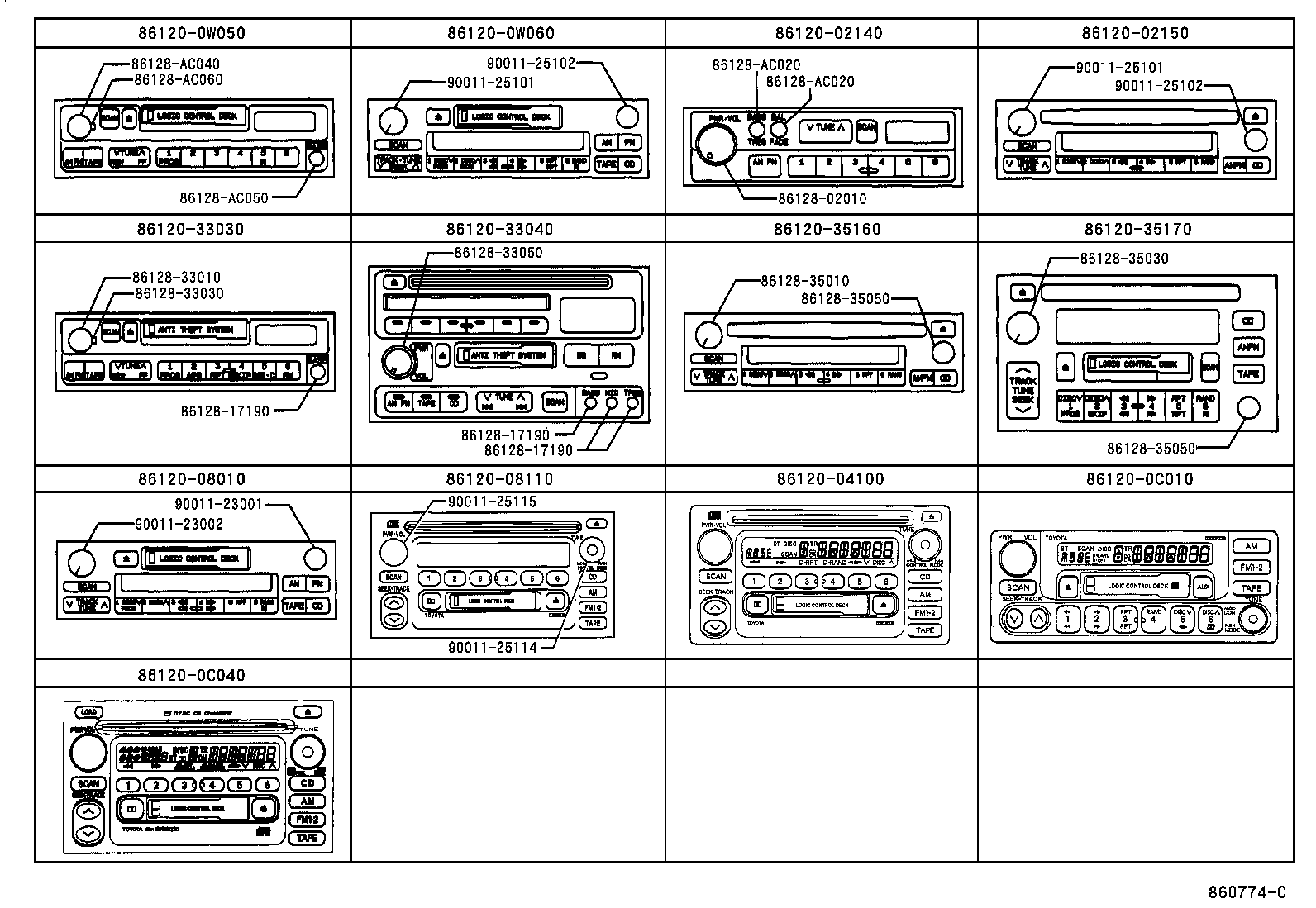

ILLUST NO. 2 OF 2(9511- )

Click highlighted areas on diagram

KNOB,RADIO RECEIVER

diagram 8612802010 8612817190 8612817190 8612817190 8612833010 8612833030 8612833050 8612835010 8612835030 8612835050 8612835050 86128AC020 86128AC020 86128AC040 86128AC050 86128AC060 9001123001 9001123002 9001125101 9001125101 9001125102 9001125102 9001125114 9001125115
Part # Description Qty Price
Common parts
86128-02010
86128-17190
86128-33010
86128-33030
86128-33050
86128-35010
86128-35030
86128-35050
86128-AC020
86128-AC040
86128-AC050
86128-AC060
90011-23001
90011-23002
90011-25101
90011-25102
90011-25114
90011-25115

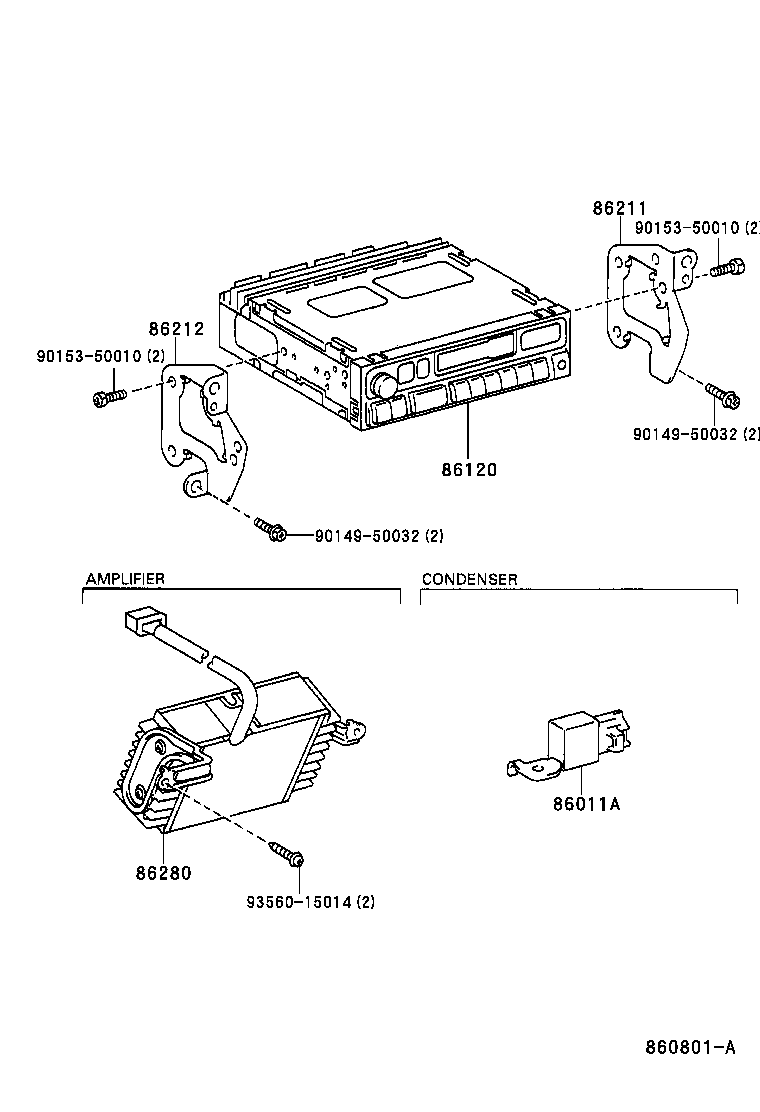

ILLUST NO. 1 OF 2(9511- )

Click highlighted areas on diagram

RECEIVER,BKT,AMPLIFIER & CONDENSER

diagram 86011A 86120 86211 86212 86280 9014950032 9014950032 9015350010 9015350010 9356015014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04083

RZN18#,VZN18#

 1
86120 - RECEIVER ASSY, RADIO
86120-02140

RZN18#,VZN18#..SR5B,SR5V

MATSUSHITA, ID=51403,AM/FM ETR 4 SPEAKER

 1
86120-08010

RZN18#,VZN18#

FUJITSU TEN,ID=16408,AM/FM ETR CASSETTE 4 SPEAKER

 1
86120-0W050

RZN18#,VZN18#

DELCO,AM/FM ETR CASSETTE 4 SPEAKER

 1
86120-02150

RZN18#,VZN18#

MATSUSHITA, ID=51801,AM/FM ETR CD 4 SPEAKER

 1
86211 - BRACKET, RADIO, NO.1
86211-89111

RZN18#,VZN18#

 1
86212 - BRACKET, RADIO, NO.2
86212-89111

RZN18#,VZN18#

 1
Common parts
90149-50032
90153-50010
93560-15014
